APC Easy UPS 3M 60kVA 400V 3:3 UPS for external batteries, Start-up 5x8

APC Easy UPS 3M 100kVA 400V 3:3 UPS for external batteries, Start-up 5x8

APC Easy UPS 3M 100kVA 400V 3:3 UPS for external batteries, Start-up 5×8

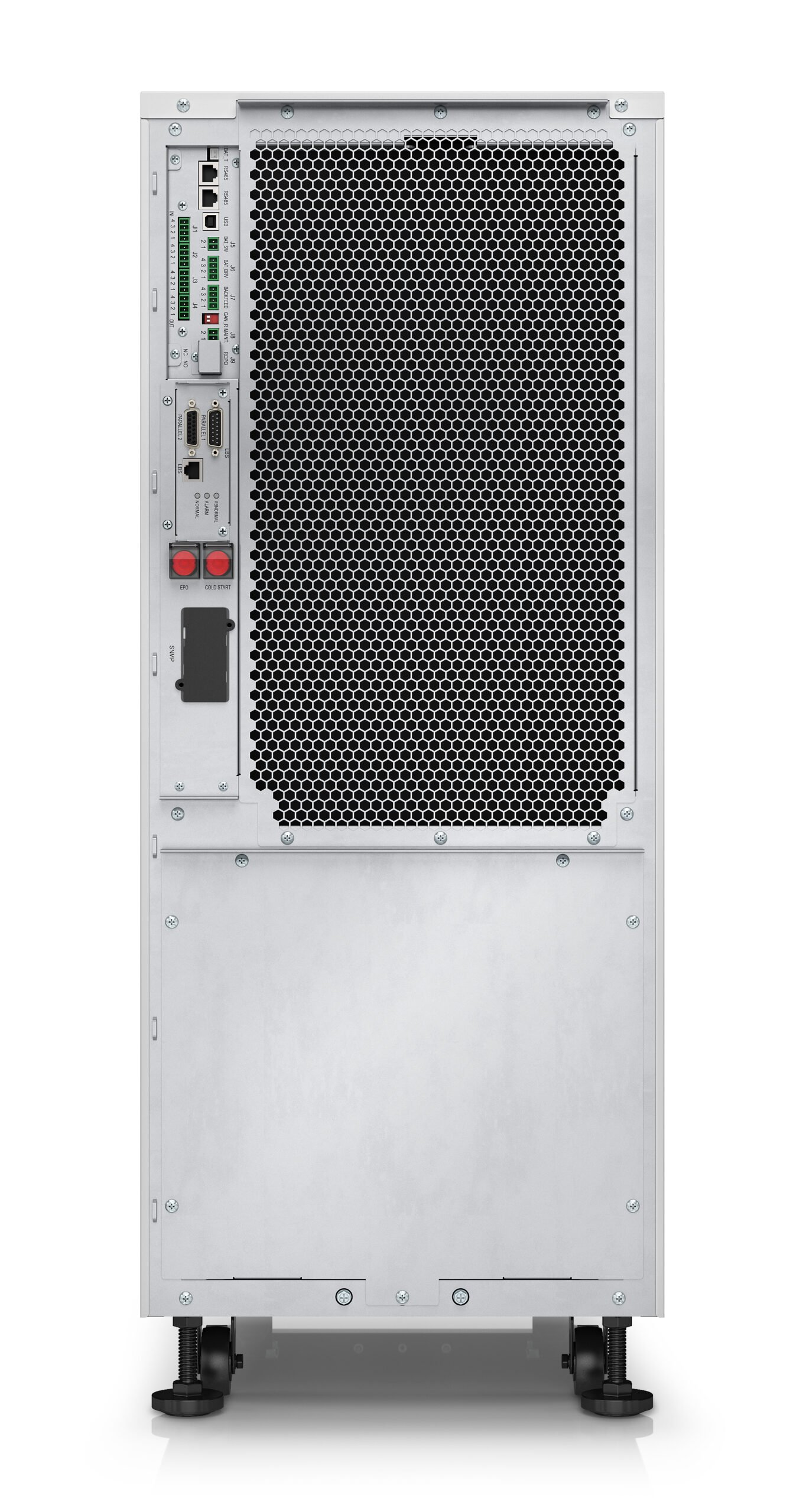

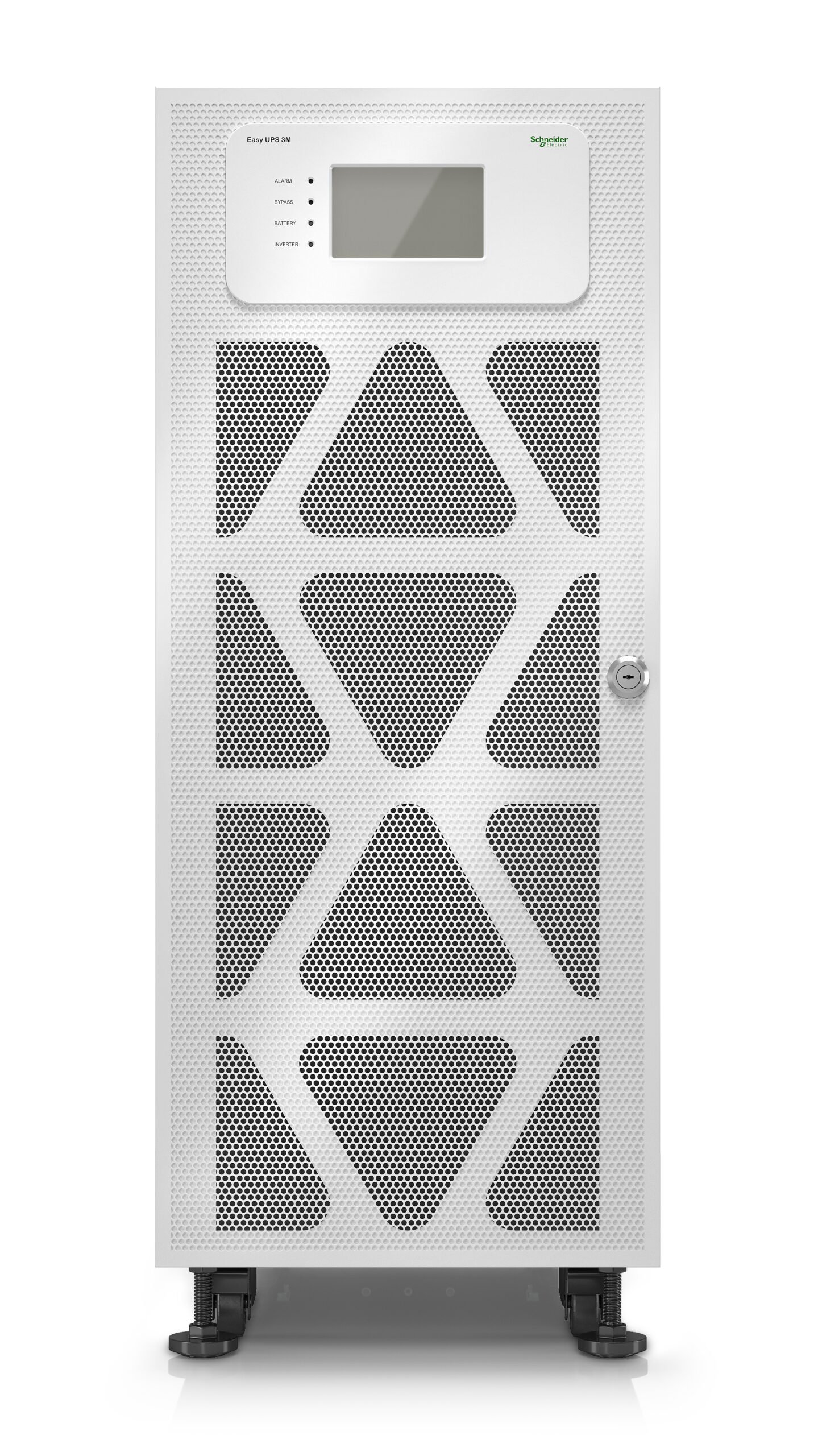

Name: APC Easy UPS 3M 100kVA 400V 3:3 UPS for external batteries, Start-up 5x8 - Bank Adhikari
SKU: GD150P481S01
Price: 775792.53 INR
Availability: InStock

Availability: 16 in stock

₹775,792.53 Including all taxes

Accepted Payment Methods

Add to Cart Buy Now

About This Product

Easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 100 kVA 3-phase UPS. With advanced product features, robust electrical specifications and compact design making your business continuity easy. Ideal for small and medium data centers and other business critical applications, this UPS is EcoStruxure connected to give you peace of mind with cloud-based remote monitoring and management. It is supplied without batteries, so you can easily customize your battery solution. Includes 5×8 start-up service.

Key Features & Highlights

Double-conversion (Online)
100 kVA 100000 W
Waveform: Sine
Tower White

📄 Product Documentation: Download Official Manual / Spec Sheet (PDF)

Technical Specifications

Features

UPS topology	Double-conversion (Online)
Output power capacity	100 kVA
Output power	100000 W
Waveform	Sine
Input operation voltage (min)	342 V
Input operation voltage (max)	477 V
Input frequency	40/70 Hz
Output operation voltage (min)	380 V
Output operation voltage (max)	415 V
Output frequency	50/60 Hz
Maximum current	177 A
Number of input phases	3
Number of output phases	3
Efficiency	94.8%
Input power factor	0.99
Crest factor	3:1
ECO mode	Yes
Output voltage Total Harmonic Distortion (THD)	3%
Noise level	65 dB
Audible alarm(s)	Yes

Design

Form factor	Tower
Product colour	White
Display type	LCD
LED indicators	Yes
International Protection (IP) code	IP20

Operational conditions

Operating temperature (T-T)	0 – 40 °C
Storage temperature (T-T)	-25 – 55 °C
Operating relative humidity (H-H)	0 – 95%
Storage relative humidity (H-H)	0 – 95%
Operating altitude	0 – 1476.3 m
Non-operating altitude	0 – 15000 m

Certificates

Certification	EN/IEC 62040-1, IEC 62040-2, IEC 62040-3, IEC 62040-4

Weight & dimensions

Width	360 mm
Depth	850 mm
Height	915 mm
Weight	145 kg

Packaging data

Package width	475 mm
Package depth	965 mm
Package height	1140 mm
Package weight	169 kg

Logistics data

Harmonized System (HS) code	85078000

Manufacturer Part Number	E3MUPS100KH
Brand	APC By Schneider
UPC / EAN	0731304346708
SKU	GD150P481S01
Category	Uninterruptible Power Supplies (UPSs)
Subcategory	Uninterruptable Pwr
UPS topology	Double-conversion (Online)
Output power capacity	100 kVA
Output power	100000 W
Waveform	Sine
Input operation voltage (min)	342 V
Input operation voltage (max)	477 V
Input frequency	40/70 Hz
Output operation voltage (min)	380 V
Output operation voltage (max)	415 V
Output frequency	50/60 Hz
Maximum current	177 A
Number of input phases	3
Number of output phases	3
Efficiency	94.8%
Input power factor	0.99
Crest factor	3:1
ECO mode	Yes
Output voltage Total Harmonic Distortion (THD)	3%
Noise level	65 dB
Audible alarm(s)	Yes
Form factor	Tower
Product colour	White
Display type	LCD
LED indicators	Yes
International Protection (IP) code	IP20
Operating temperature (T-T)	0 – 40 °C
Storage temperature (T-T)	-25 – 55 °C
Operating relative humidity (H-H)	0 – 95%
Storage relative humidity (H-H)	0 – 95%
Operating altitude	0 – 1476.3 m
Non-operating altitude	0 – 15000 m
Certification	EN/IEC 62040-1, IEC 62040-2, IEC 62040-3, IEC 62040-4
Width	360 mm
Depth	850 mm
Height	915 mm
Weight	145 kg
Package width	475 mm
Package depth	965 mm
Package height	1140 mm
Package weight	169 kg
Harmonized System (HS) code	85078000
