About This Product

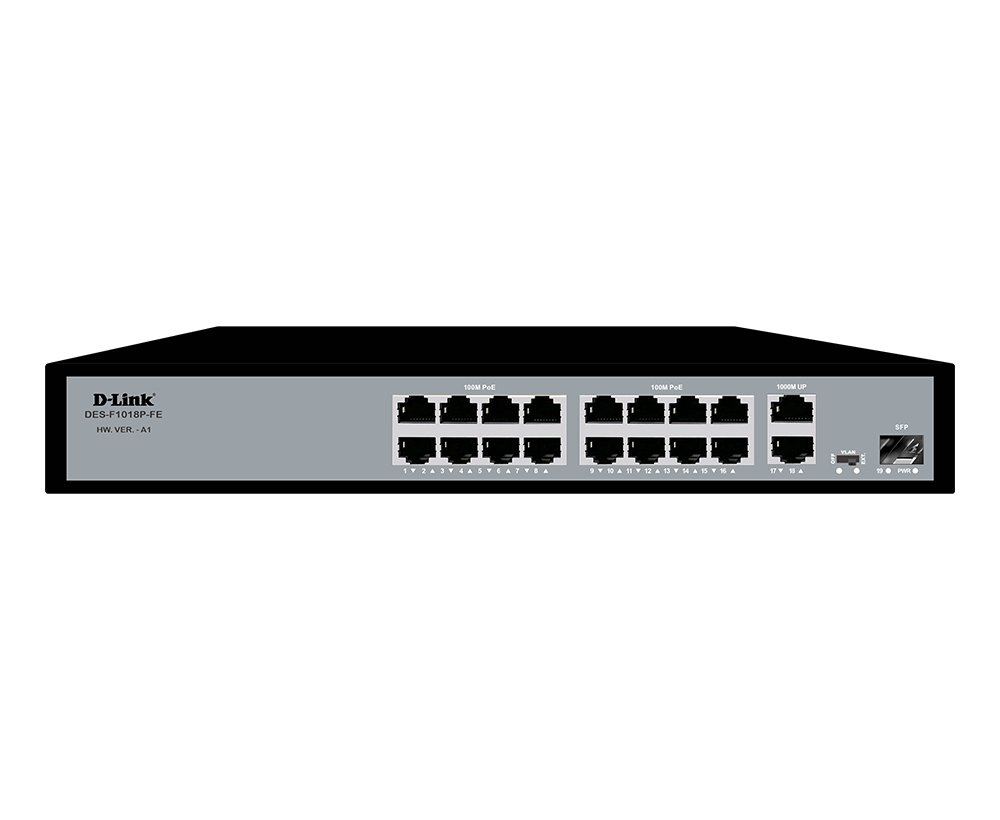

DES-F1018P-FE is 16 port FE with 2 Gigabit uplink & 1 SFP ports, auto detection and identification IEEE802.3af/at standard PD device, then carry power to it. Therefore, do not worry it will destroy the private standard PoE or Non-PoE equipment.
DES-F1018P-FE is the best choice for a mini type commercial network because it economically uses PoE deployment wireless AP and IP camera. It can resolve the problem of tedious maintenance, wireless coverage, terminal device powered, surveillance project, Maximum save the cost.
Key Features & Highlights
- Support upward port auto MDI/MDIX
- Adopted storage forward switch system
- Smart power and minimum consumption guarantee PD requirement
- With power supply circuit protection function and protection back-end device safety
- Automatically provide the adaptive device
- Fanless design, energy saving and environmental protection
- 16 10/100 Mbps POE port
- 2 gigabit uplink & 1 SFP port
- Support saving power function when port connection
📄 Product Documentation: Download Official Manual / Spec Sheet (PDF)
Technical Specifications
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 16 |
|---|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 16 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
Network
| Networking standards | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
|---|---|
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
Data transmission
| Switching capacity | 9.2 Gbit/s |
|---|---|
| Store-and-forward | Yes |
| Latency (10-100 Mbps) | 10 µs |
Design
| Product colour | Black |
|---|---|
| Housing material | Metal |
| LED indicators | Yes |
Performance
| Fanless | Yes |
|---|
Power
| Power supply included | Yes |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|---|
| Power over Ethernet (PoE) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 150 W |
Operational conditions
| Operating temperature (T-T) | 0 – 55 °C |
|---|---|
| Storage temperature (T-T) | -10 – 70 °C |
| Operating relative humidity (H-H) | 10 – 90% |
| Storage relative humidity (H-H) | 5 – 90% |
Weight & dimensions
| Width | 183 mm |
|---|---|
| Depth | 310 mm |
| Height | 45 mm |
| Weight | 1.75 kg |
Sustainability
| Sustainability compliance | Yes |
|---|
Certificates
| Compliance certificates | CE |
|---|
