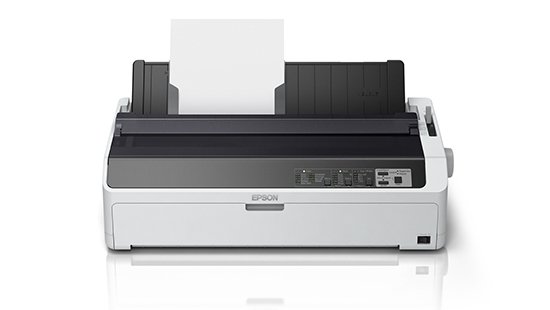

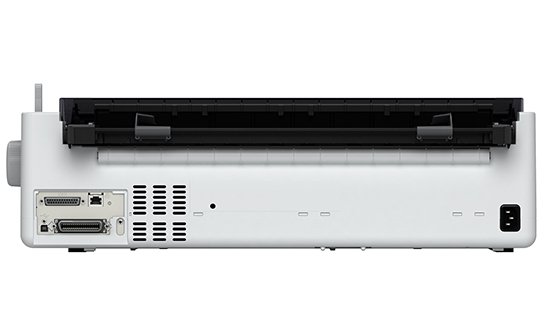

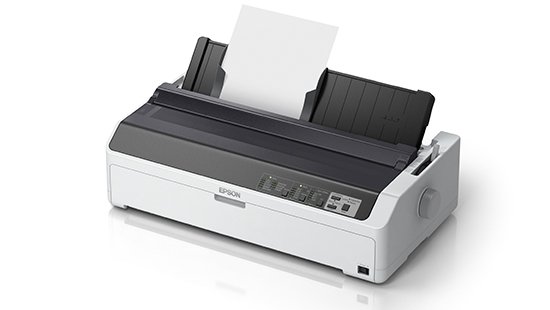

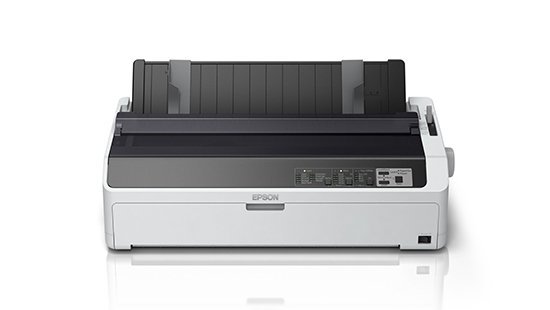

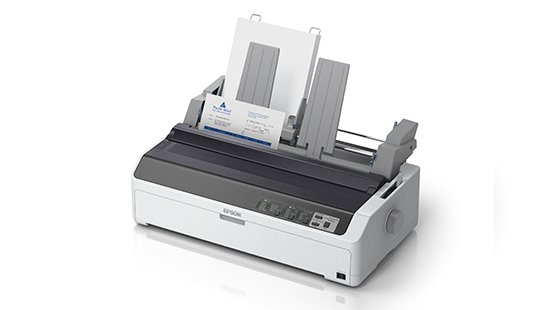

Epson LQ-2090IIN dot matrix printer 550 cps
Out of stock
₹49,294.50
About This Product
Epson LQ-2090IIN. Maximum print speed: 550 cps, Maximum print speed (LQ): 121 cps, Character pitch: 10 cpi. Continuous paper thickness range: 0.12 – 0.46 mm, Label thickness range: 0.16 – 0.19 mm, Multi-part paper thickness range: 0.12 – 0.46 mm. Product colour: Black, White, Buffer size: 128 KB, Sound pressure level (printing): 55 dB. Standard interfaces: Ethernet, Serial, USB 2.0. Print head: 24-pin, Print direction: Bidirectional, Print head life: 400 million characters
Key Features & Highlights
- Fast print speed: USD speed of 550 characters per second at 10 characters per inch
- Increased reliability: Mean time between failure of 25,000 power-on hours
- Increased number of copies: Now original plus six copies
- Network capability: Supports both serial and Ethernet connections
- Same consumables: Uses the same ribbons as existing models
📄 Product Documentation: Download Official Manual / Spec Sheet (PDF)
Technical Specifications
Printing
| Maximum printing width (columns) | 136 |
|---|---|
| Colour | No |
| Maximum print speed | 550 cps |
| Maximum print speed (LQ) | 121 cps |
| Character pitch | 10 cpi |
| Built-in barcodes | Code 128 (A/B/C), Code 39, EAN13, EAN8, Interleaved 2/5, POSTNET, UPC-A, UPC-E |
Paper handling
| Continuous paper thickness range | 0.12 – 0.46 mm |
|---|---|
| Label thickness range | 0.16 – 0.19 mm |
| Multi-part paper thickness range | 0.12 – 0.46 mm |
| Single sheet thickness range | 0.065 – 0.14 mm |
Features
| Product colour | Black, White |
|---|---|
| Buffer size | 128 KB |
| Sound pressure level (printing) | 55 dB |
| Page description languages | Epson ESC/P2, PPDS |
Ports & interfaces
| Standard interfaces | Ethernet, Serial, USB 2.0 |
|---|
Endurance
| Print head | 24-pin |
|---|---|
| Print direction | Bidirectional |
| Print head life | 400 million characters |
| Mean time between failures (MTBF) | 25000 h |
Power
| Power consumption (typical) | 49 W |
|---|---|
| AC input voltage | 220 – 240 V |
| AC input frequency | 50 – 60 Hz |
Operational conditions
| Operating temperature (T-T) | 5 – 35 °C |
|---|---|
| Operating relative humidity (H-H) | 10 – 80% |
System requirements
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP |
|---|---|
| Server operating systems supported | Windows Server 2003 x64, Windows Server 2016 |
Weight & dimensions
| Width | 612 mm |
|---|---|
| Depth | 375 mm |
| Height | 177 mm |
| Weight | 9.4 kg |
Technical details
| Sustainability certificates | ENERGY STAR |
|---|
Logistics data
| Pallet gross length | 120 cm |
|---|
| Manufacturer Part Number | C11CF40511 |
|---|---|
| Brand | EPSON |
| UPC / EAN | 8906049013129 |
| SKU | GD194E301T1 |
| Category | Dot Matrix Printers |
| Subcategory | Matrix Printers |
| Maximum printing width (columns) | 136 |
| Colour | No |
| Maximum print speed | 550 cps |
| Maximum print speed (LQ) | 121 cps |
| Character pitch | 10 cpi |
| Built-in barcodes | Code 128 (A/B/C), Code 39, EAN13, EAN8, Interleaved 2/5, POSTNET, UPC-A, UPC-E |
| Continuous paper thickness range | 0.12 – 0.46 mm |
| Label thickness range | 0.16 – 0.19 mm |
| Multi-part paper thickness range | 0.12 – 0.46 mm |
| Single sheet thickness range | 0.065 – 0.14 mm |
| Product colour | Black, White |
| Buffer size | 128 KB |
| Sound pressure level (printing) | 55 dB |
| Page description languages | Epson ESC/P2, PPDS |
| Standard interfaces | Ethernet, Serial, USB 2.0 |
| Print head | 24-pin |
| Print direction | Bidirectional |
| Print head life | 400 million characters |
| Mean time between failures (MTBF) | 25000 h |
| Power consumption (typical) | 49 W |
| AC input voltage | 220 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Operating temperature (T-T) | 5 – 35 °C |
| Operating relative humidity (H-H) | 10 – 80% |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP |
| Server operating systems supported | Windows Server 2003 x64, Windows Server 2016 |
| Width | 612 mm |
| Depth | 375 mm |
| Height | 177 mm |
| Weight | 9.4 kg |
| Sustainability certificates | ENERGY STAR |
| Pallet gross length | 120 cm |
Product Documentation & Datasheet
Click the button below to view or download the official manufacturer documentation for this product:
📄 Download Official PDF Manual / Datasheet
