About This Product
Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Key Features & Highlights
- AMD Socket AM5：Supports AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
- Unparalleled Performance：5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
- SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：2.5GbE LAN
- Extended Connectivity：2*DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
📄 Product Documentation: Download Official Manual / Spec Sheet (PDF)
Technical Specifications
Processor
| Processor manufacturer | AMD |
|---|---|
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
Memory
| Supported memory types | DDR5-SDRAM |
|---|---|
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz |
| Supported memory clock speed (max) | 7600 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Maximum internal memory per slot | 64 GB |
Storage controllers
| Supported storage drive types | HDD & SSD |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
Graphics
| Parallel processing technology support | Not supported |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Discrete graphics support | Yes |
Internal I/O
| USB 2.0 connectors | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 1 |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| TPM connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 3 |

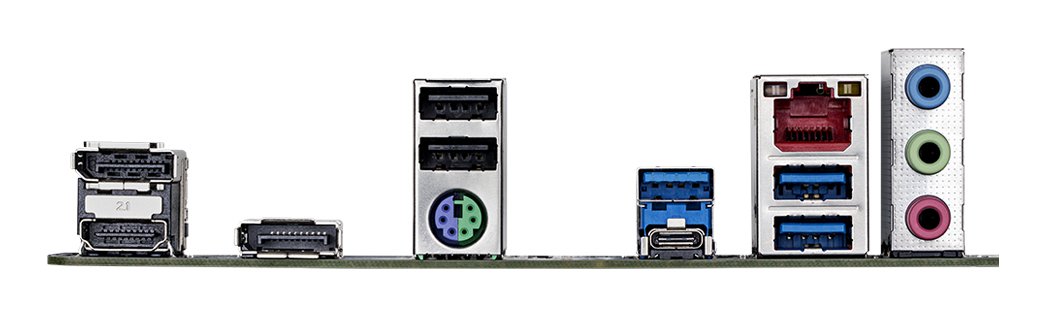

Rear panel I/O ports
| USB 2.0 ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
Network
| Ethernet LAN | Yes |
|---|---|
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125 |
| Wi-Fi | No |
Features
| Motherboard chipset | AMD B650 |
|---|---|
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Brown |
| PC health monitoring | Fan, Temperature, Voltage |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Expansion slots
| PCI Express x1 (Gen 3.x) slots | 1 |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
| Number of M.2 (M) slots | 2 |
| 1st M.2 largest key size | 2580 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
BIOS
| BIOS type | UEFI AMI |
|---|---|
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Logistics data
| Country of origin | China |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
Battery
| Battery weight | 3 g |
|---|---|
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
Packaging data
| Package width | 265 mm |
|---|---|
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 1.02 kg |
Weight & dimensions
| Width | 244 mm |
|---|---|
| Depth | 244 mm |
| Height | 35 mm |
Packaging content
| Batteries included | Yes |
|---|---|
| Screws included | Yes |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
Technical details
| Warranty period | 3 year(s) |
|---|
