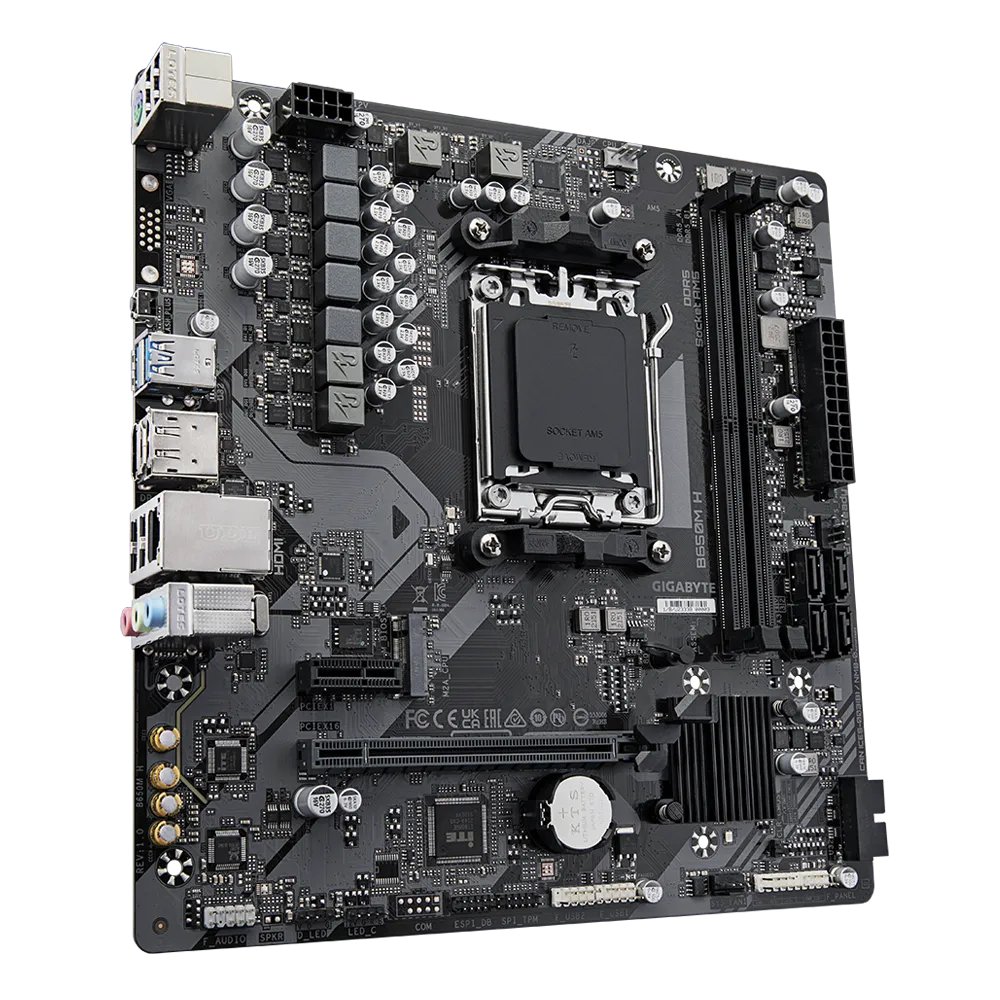

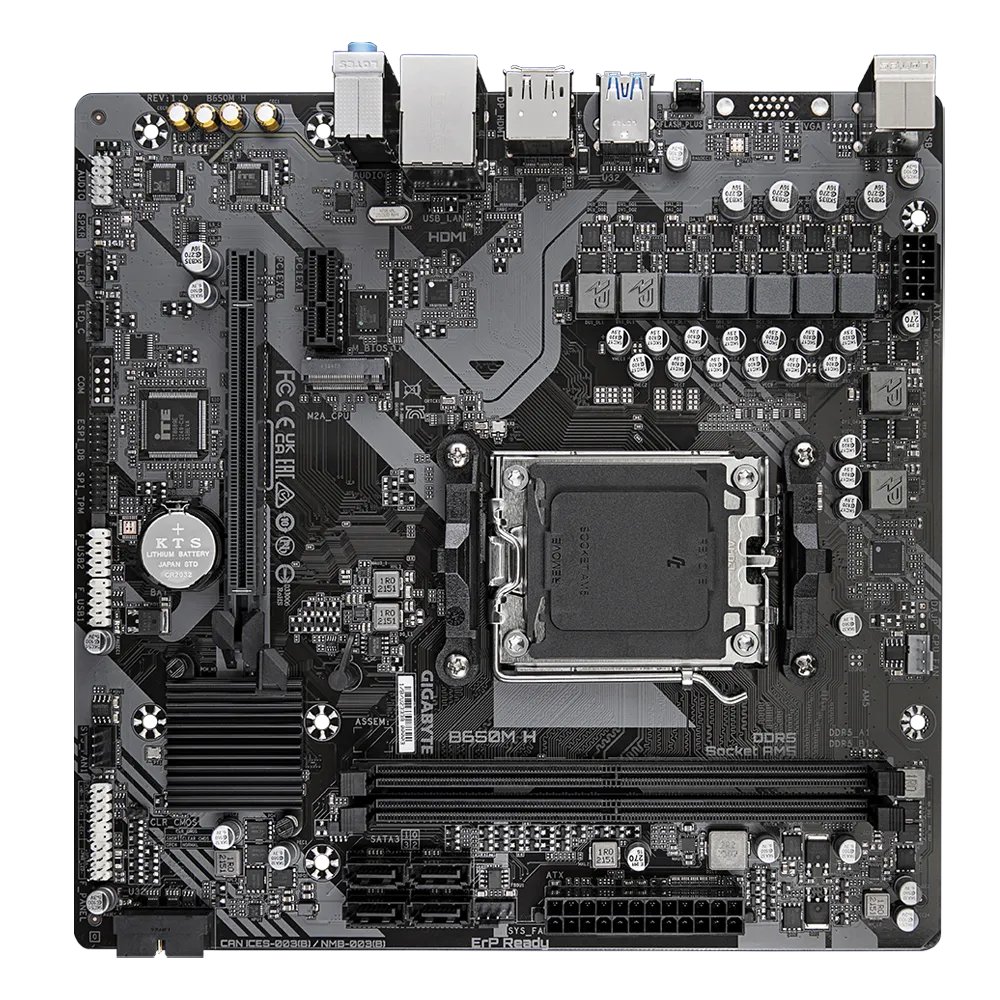

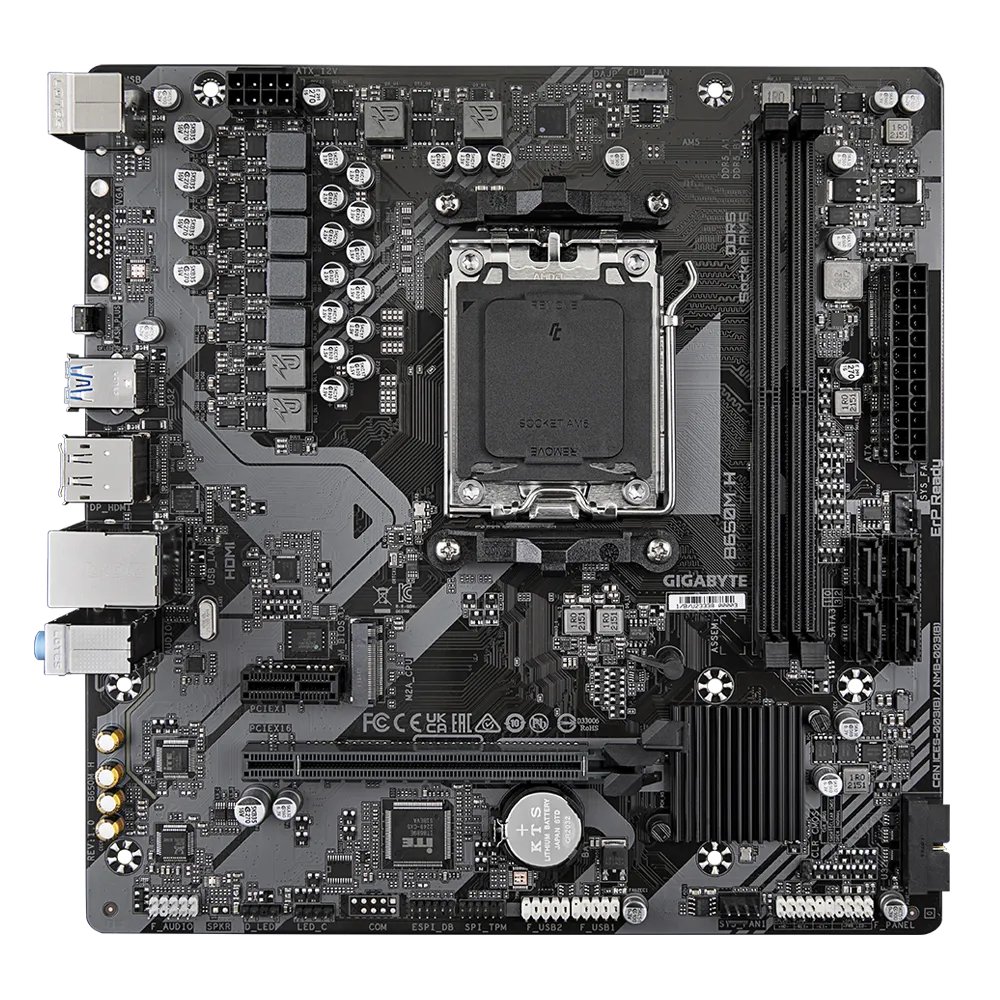

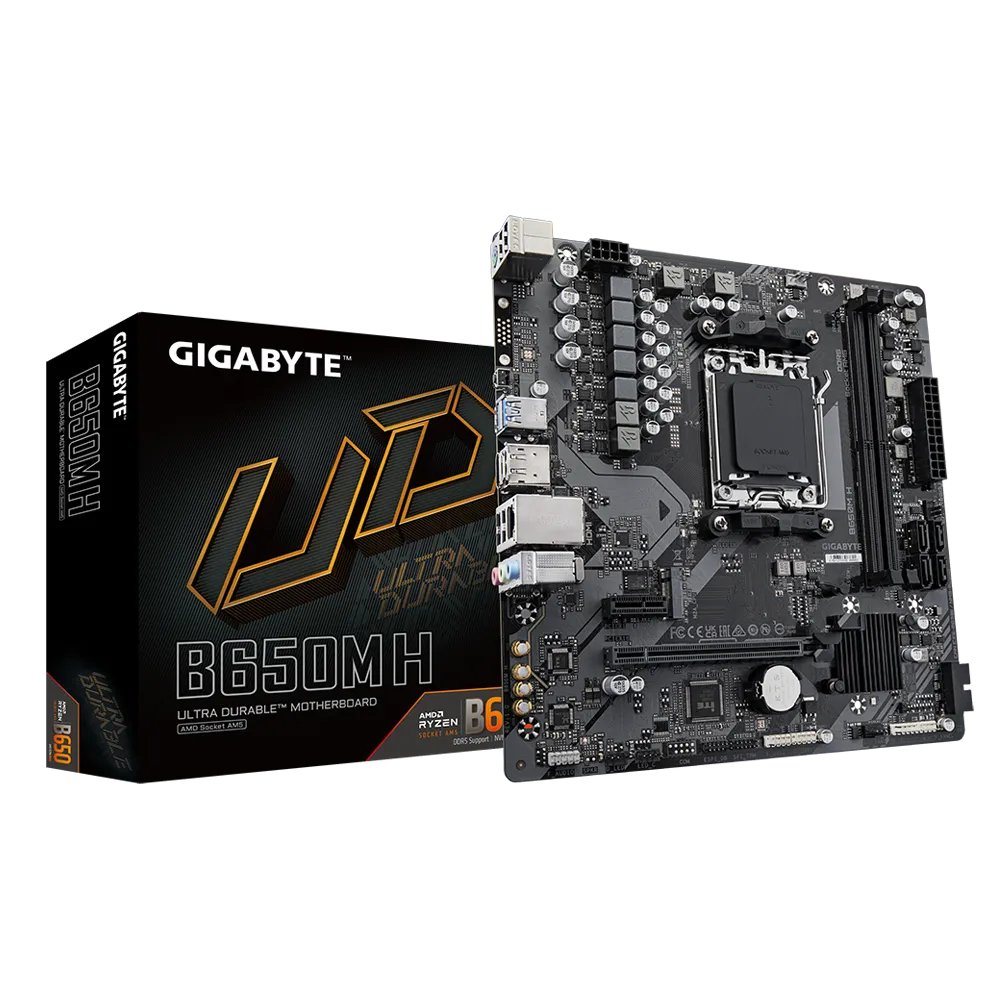

GIGABYTE B650M H motherboard AMD B650 Socket AM5 micro ATX

Durable Performance
GIGABYTE Ultra Durable motherboards built with optimal components inside out provide the prime performance and timeless platform.

Digital VRM Design
5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
GIGABYTE UD series motherboards use a 5+2+2 phases digital PWM + Low RDS(on) MOSFETs design to support AMD’s new generation CPUs by offering incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

PCIe 4.0 Hardware Design
GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

Hi-Fi Audio
High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card. With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card nor enter the BIOS menu to flash the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB flash drive, then press the dedicated Q-Flash Plus button and you’re good to go!

– STEP 1: Plug 24pin & 8pin power supply cable on motherboard
– STEP 2: Download motherboard BIOS file and rename to “”gigabyte.bin””, save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port
– STEP 3: Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.

Smart Fan 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

Cooling Features
– High Current Support: Each fan headers support PWM and DC fan and Water Cooling Pump , and up to 24W (12V x 2A) with Over-Current Protection
– Precision Control: Multiple temperature/fan speed control points for precise fan curve
– Dual Curve Mode: Slope/Stair dual mode for different user scenario
– Fan Stop: Fan can stop completely below users’ specified temperature point

Smart Fan 6 BIOS UI
– Improve fan curve UI: We increase control points from 5 to 7 and larger fan speed graph for precise and easier fan curve control.
– Slope/Stair dual graph mode: Fan curve can be quickly switch with Slope and Stair modes for different user scenario. Slope is traditional and intuitive linear fan speed curve. With newly added Stair non-linear mode, fan keeps at same speed between specified temperature interval.
– Manual Input: For advanced users, we provide fan speed manual input for more precise control.
– EZ Tuning: Use can place 4 EZ Tuning points at rough temperature/fan speed, and Smart Fan 6 can quickly generate a fan curve.
– Fan curve profile: Fan curve profile can be saved in BIOS ROM, profile will be kept after updating BIOS.

GIGABYTE Control Center
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.

Unified software platform for all Gigabyte supported products
Intuitive user interface for an eased experience
Modularized control components only for installed hardware
Auto update function to keep system up to date and support future products
