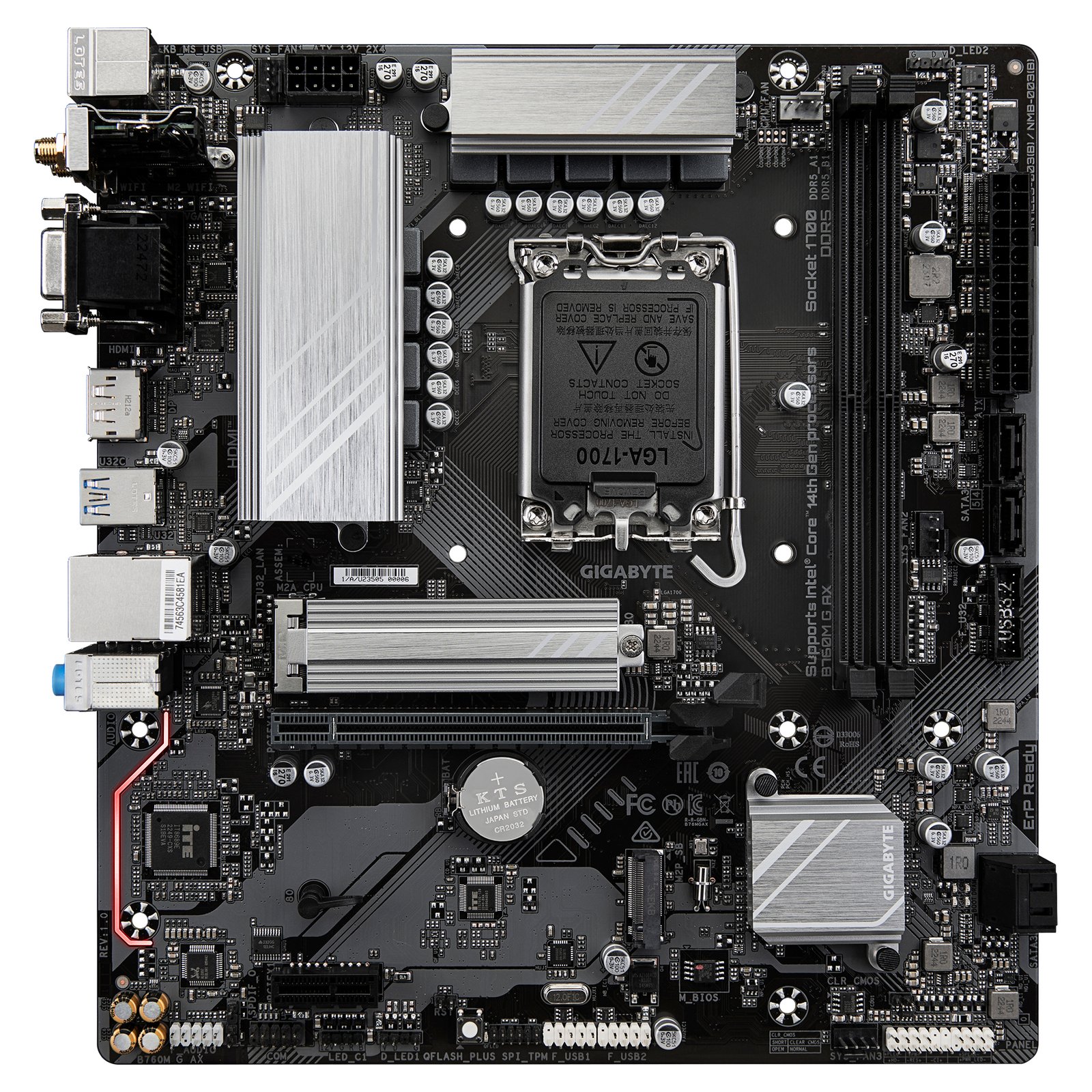

GIGABYTE B760M G AX motherboard Intel B760 Express LGA 1700 micro ATX

Hybrid Digital VRM Design
To ensure maximum Turbo Boost and overclocking performance of Intel’s new generation CPU, GIGABYTE GAMING series motherboard equip the best VRM design ever built with the highest quality components.

PCIe 4.0 Design
GIGABYTE B760 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience triple bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.

Unlock DDR5
DDR5 Overclocking Up to 8000 and Beyond*
GIGABYTE is offering a tested and proven platform that has memory overclocking capability up to 8000 and beyond. For DDR5 XMP Memory, all users need to do to attain high memory performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard

Dual PCIe 4.0 x4 M.2
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.

GIGABYTE PerfDrive
PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel® Core™ processors.

SMART FAN 6
Smart Fan 6 contains several unique cooling features that ensure gaming PC maintain its performance while staying cool and quiet. Multiple fan headers can support PWM/DC fan and pump, and users can easily define each fan curve based on different temperature sensors across the board via intuitive user interface.

802.11ax Wi-Fi 6E
Latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.

Benefit of Wi-Fi 6E
1. Dedicated spectrum in 6GHz band for less interference
2. 5.5X throughput than 802.11ac 1×1*
3. 4X better network capacity, no traffic jams especially in those dense area with lots of devices
4. Network efficiency increase for better user experience

Friendly User Interface
The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.

Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.

Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.

PCIe EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
