About This Product
OPTIMIZED AIRFLOW DESIGN

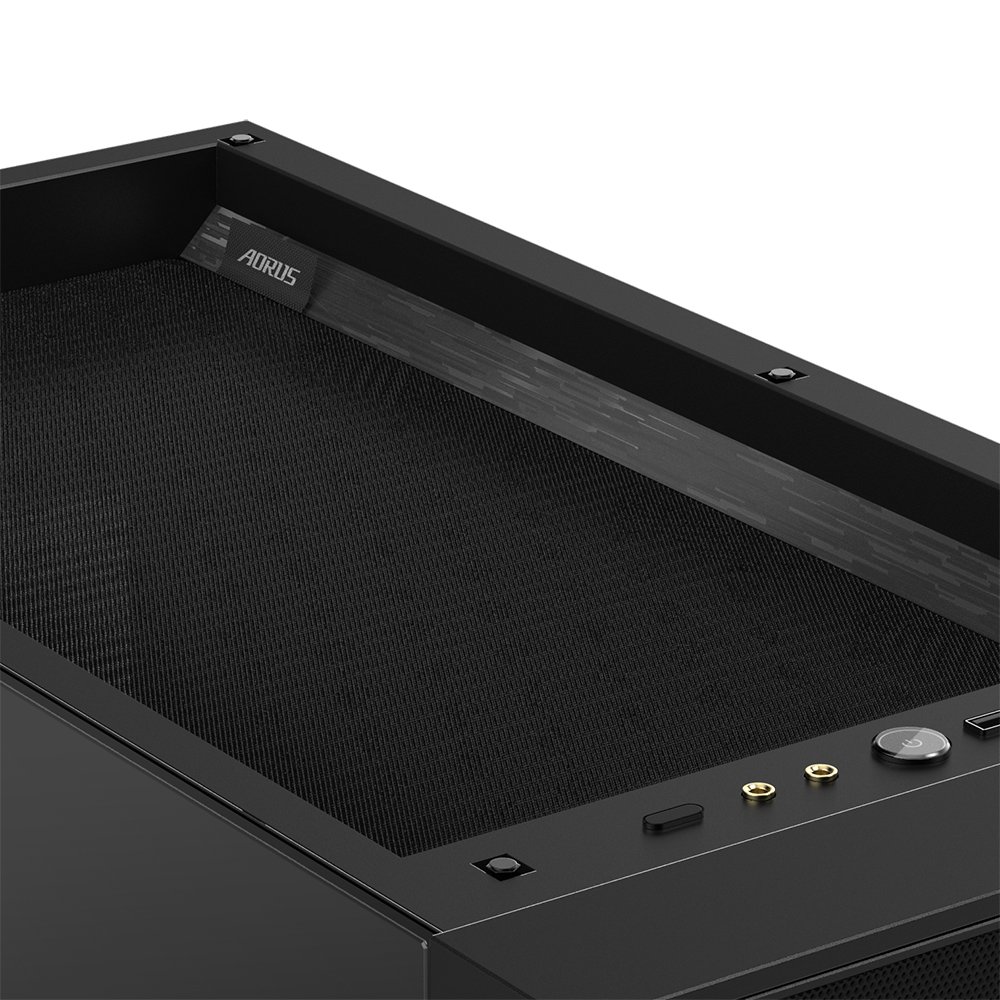

The AORUS C500 GLASS comes with the large mesh front and the vented top panel, delivering generous airflow with premium aesthetics.
MAX COOLING POTENTIAL

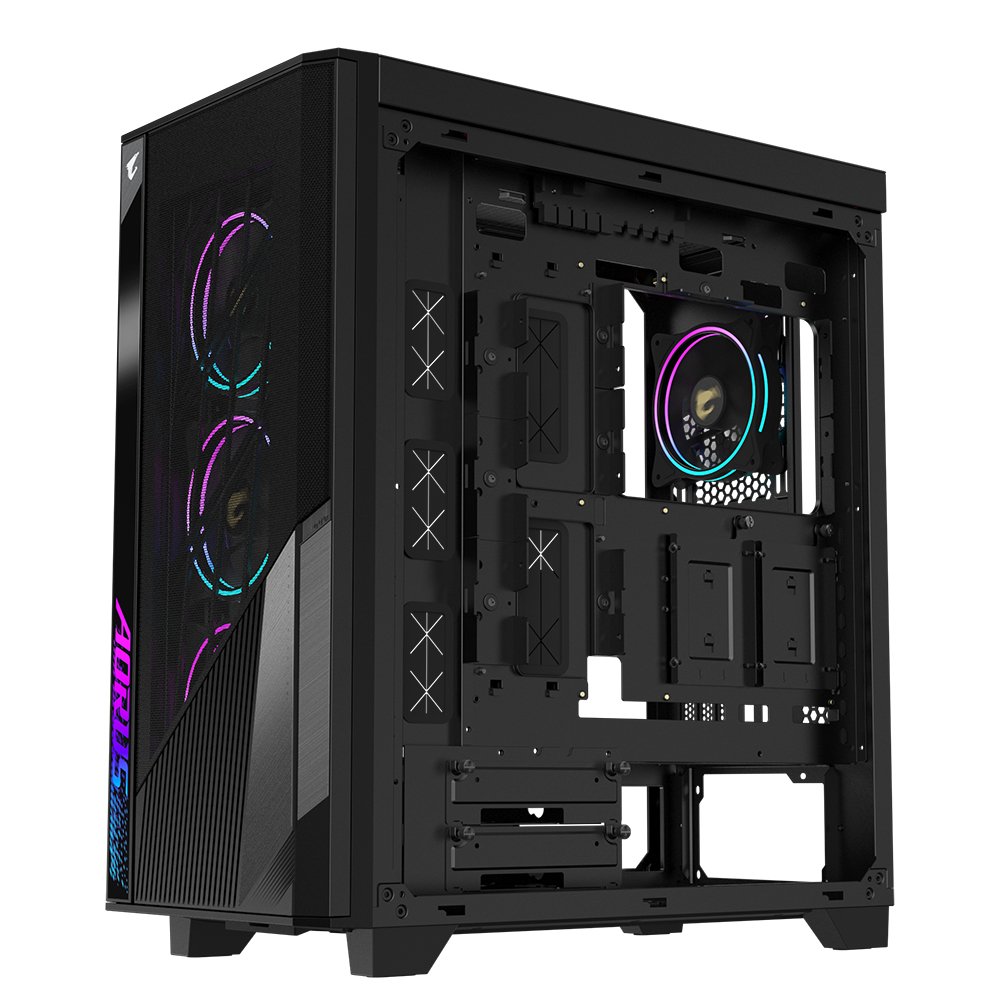

The large interior offers extra space that allows users to add 3 more 120mm fans on top of the space that houses the triple 120mm fans in both the front and roof position along with a radiator.
MAX COMPATIABILITY
The AORUS C500 GLASS is compatible with every single AORUS component and has room to hold up to E-ATX motherboards and radiators up to 420mm, providing users with the upmost flexibility.
CABLE MANAGEMENT
LIKE A PRO
A series of grooves and cutouts are located behind the board and along the case edges for smart and tidy cable management, which can shorten your building time.
EASY TO INSTALL.
EASY TO USE.

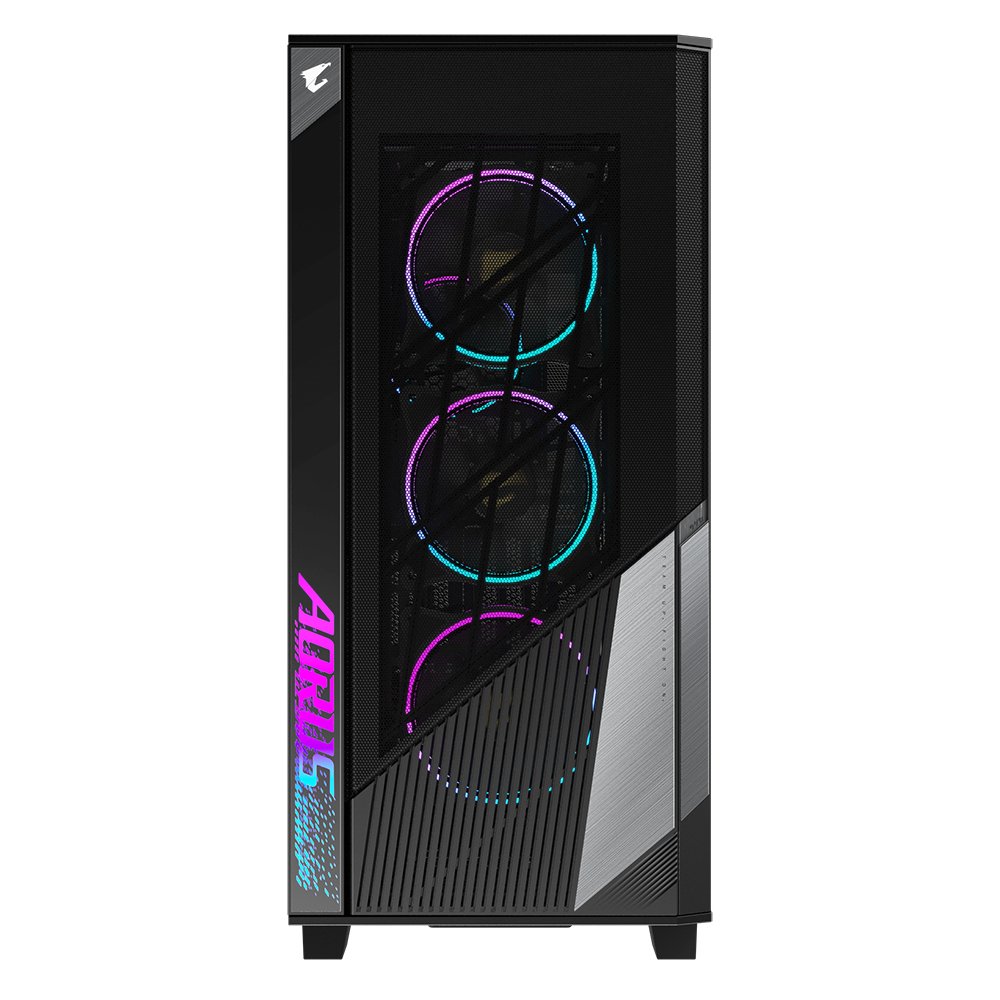

EASY-ACCESS SWING DOOR FRONT PANEL
The swing door design allows easy front access without having to remove the entire panel, which avoids the risk of detaching any cables by accident.
TEMPERED GLASS PANEL WITH ANTI-DROPPING DESIGN

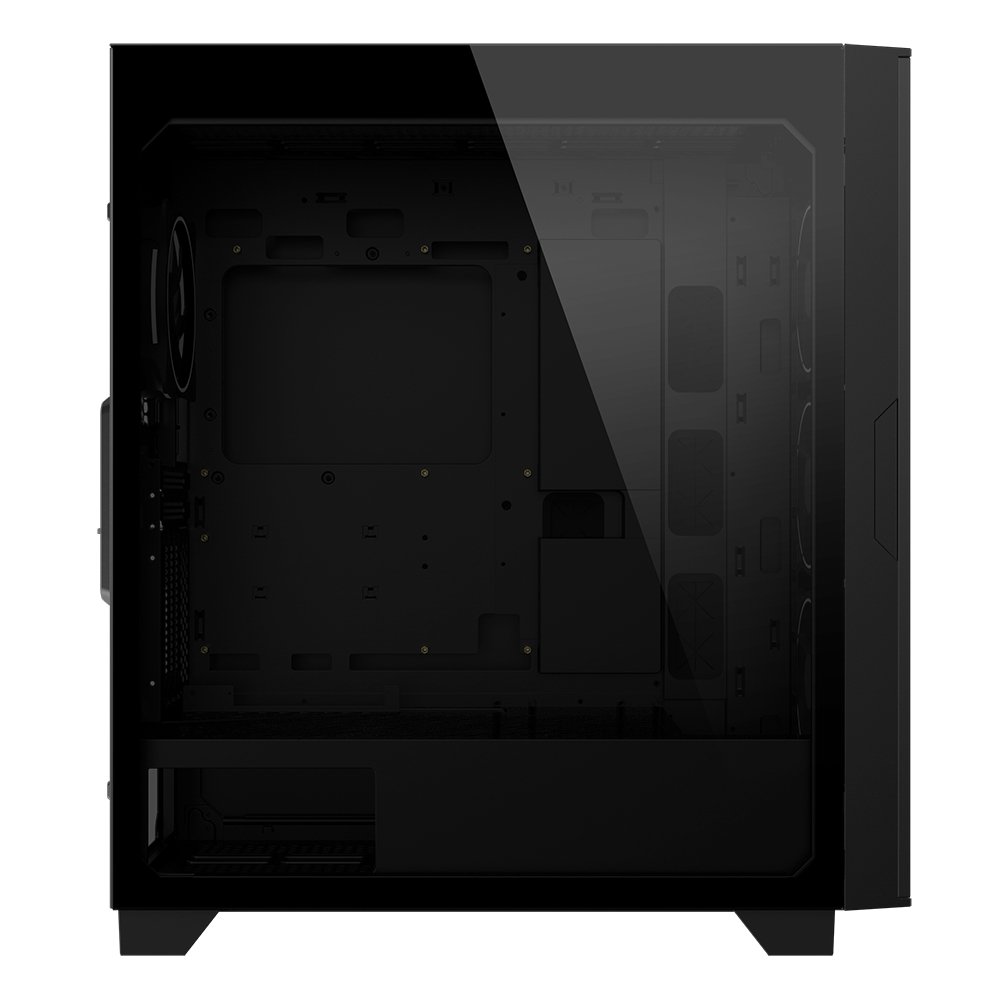

The 4mm tempered glass side panel is thoughtfully designed to be removed by tilting out the top first to prevent accidental drops. The non-drilled design further improves the glass panel’s strength and safety.
VERSATILE FRONT I/O.
REAL 11 CORE CABLE.
The 2 USB 3.0 ports use the 11-core USB cables to ensure stable signal integrity. The front I/O also offers versatile connectivity, including a USB 3.1 Gen-2 Type-C port and an audio port.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
ARGB & PWM CONNECTOR HUB
The built-in ARGB and PWM connector hub is equipped with 5x 5V 3-pin and 5x PWM connectors, enabling users to expand their RGB light stripes, create a superb cooling system as well as a fantastic and gorgeous rig.
Key Features & Highlights
- Optimized Airflow design
- Support Motherboards up to E-ATX
- Up to 420mm Liquid Cooling Compatible
- Support Vertical GPU Installation
- Modular Easy Installation
- Full-Size Tempered Glass Side Panel
- With USB 3.0 x2 and USB 3.1 Gen2 Type-C x1 on I/O panel
- RGB Fusion 2.0
- Pre-installed 4 fans with ARGB & PWM Connector Hub
Technical Specifications
Design
| Material | Glass, Plastic, Steel |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 2 |
| Number of expansion slots | 11 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination colour | Blue, Green, Red |
| Illumination location | PSU fan |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| Cable management | Yes |
| Reset button | Yes |
| On/off button | Yes |
| LED indicators | Yes |
Power supply
| Power supply included | No |
|---|---|
| Power supply location | Bottom |
| Supported power supply form factors | ATX |
Ports & interfaces
| Audio input | Yes |
|---|---|
| Audio output | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Cooling
| Front fans installed | 3x 120 mm |
|---|---|
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Front radiator sizes supported | 420 mm |
| Rear radiator sizes supported | 140 mm |
| Top radiator sizes supported | 360 mm |
Storage
| Supported HDD sizes | 2.5,3.5" |
|---|
Weight & dimensions
| Width | 250 mm |
|---|---|
| Depth | 482 mm |
| Height | 548 mm |
| Weight | 13.4 kg |
Packaging data
| Package width | 336 mm |
|---|---|
| Package depth | 584 mm |
| Package height | 594 mm |
