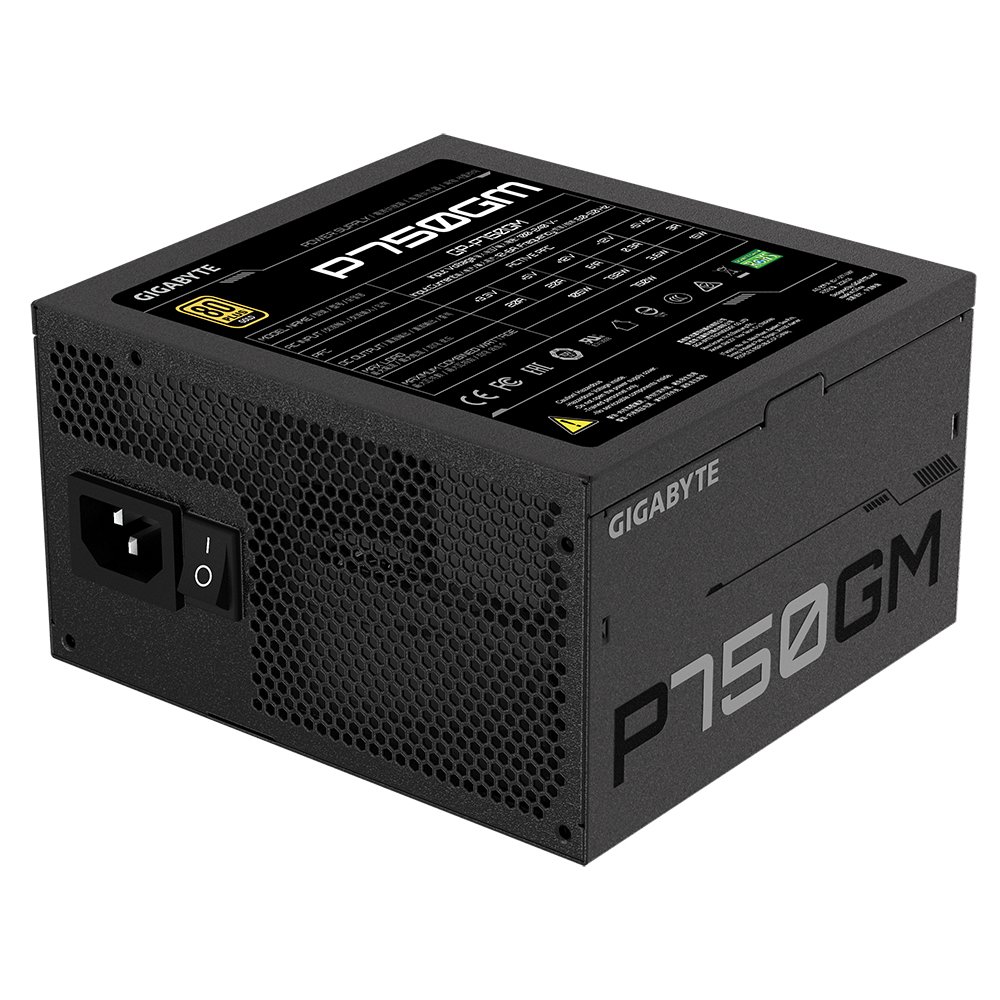

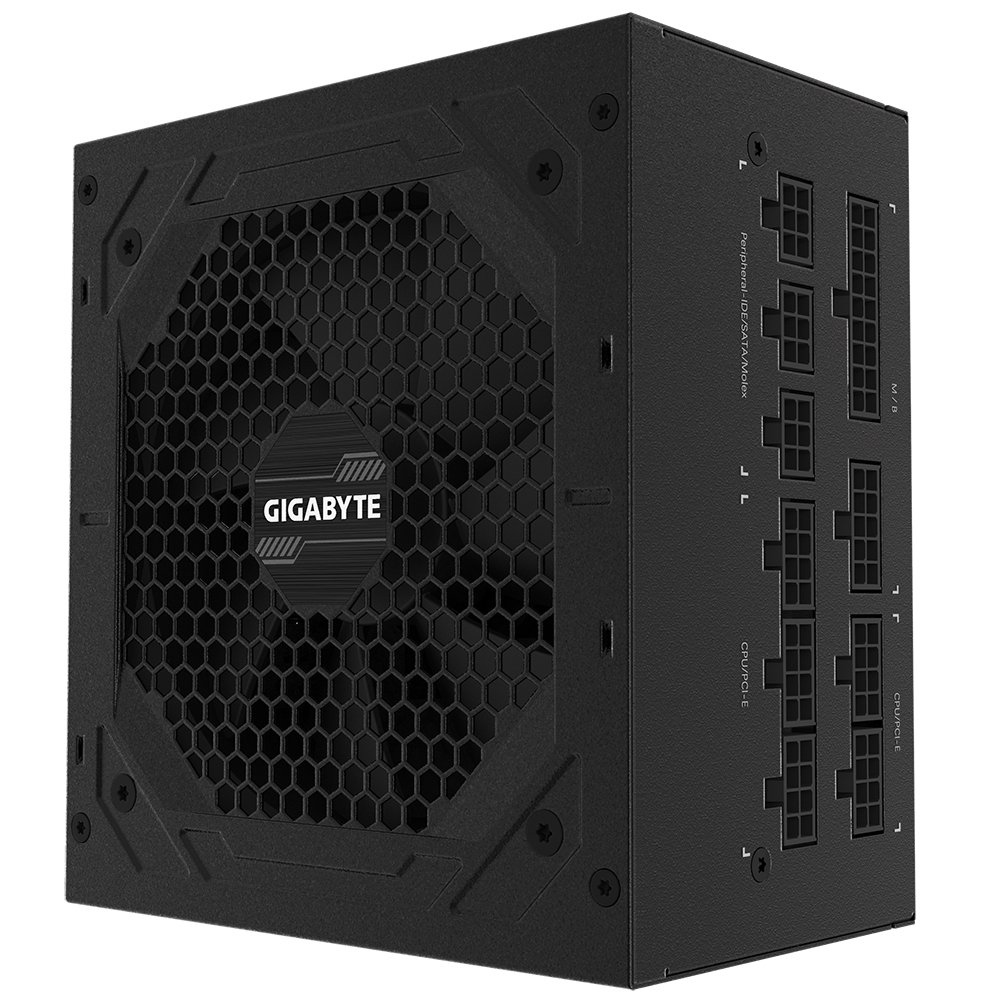

GIGABYTE P750GM power supply unit 750 W 20+4 pin ATX ATX Black

Availability: 2 in stock

- +

7,714.01 Including all taxes

Accepted Payment Methods

About This Product

FULLY MODULAR DESIGN
All the black flat cables are modular design. Installing only the cables you need to reduce clutter, to increase the airflow and to improve the chassis thermal performance.

80 PLUS GOLD CERTIFIED
80 Plus Gold certified ensures to deliver 90% efficiency at 50% load. The better power efficiency leads to less power waste, less heat and less fan noise. And with the support of Intel processors, it will save more energy and more money.

HIGH QUALITY JAPANESE CAPACITORS
The main capacitors are high quality Japanese capacitors, to produce the efficient performance and to ensure the longer reliability.

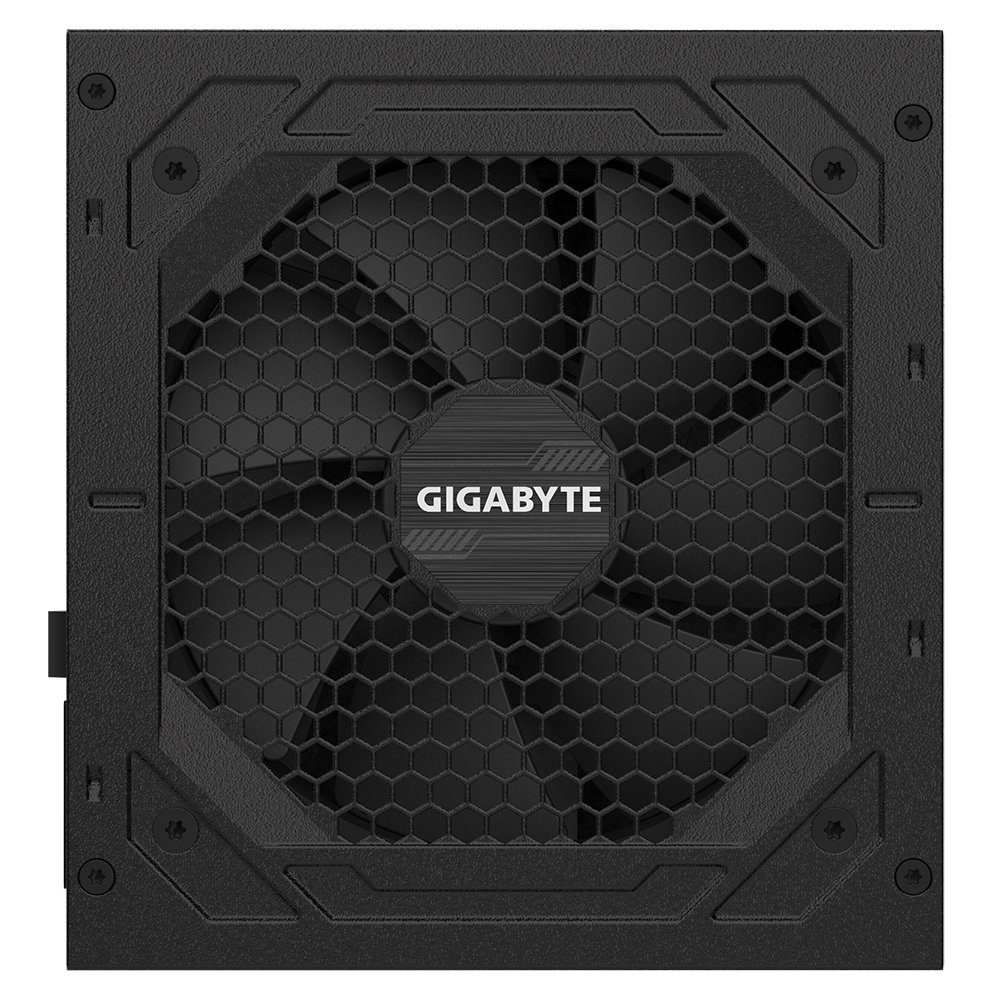

120MM SMART HYDRAULIC BEARING (HYB) FAN
The fan speed is adjusted according to the automatic power detection and will stop when the system is idle or under low load (less than 20% load). The Hydraulic Bearing fan provides longer and more stable life time.

SINGLE +12V RAIL
Single +12V rail provides the best power output, stability and compatibility for the hardware. It provides the easiest way to install the power cable. And it is the best design for overclocking.

PROTECTION
In order to make sure the entire computer system to operate stably under any conditions, we not only added protection designs such as OCP, OTP, OVP, OPP, UVP and SCP, but also ensured the stable operation of your system through the safety certification of various countries.

Key Features & Highlights

  • 80 PLUS Gold certified
  • Fully modular design
  • 120mm Smart Hydraulic Bearing (HYB) Fan
  • Main Japanese capacitors
  • Powerful single +12V rail
  • OVP/OPP/SCP/UVP/OCP/OTP protection
  • 5 years warranty (Adjusted according to different regions)

Technical Specifications

Power

Total power 750 W
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Input current 12-6 A
Power Factor Correction (PFC) type Active
Hold time 16 ms
Efficiency 90%
Power protection features Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector 20+4 pin ATX
Motherboard power cable length 61 cm
Number of SATA power connectors 8
SATA power cable length 150,600 mm
Peripheral (Molex) power connectors (4-pin) 4
Peripheral (Molex) power cable length 120,500 mm
EPS power connector (4+4 pin) Yes
PCI Express power connectors (6+2 pin) 4
PCI Express power cable length 60 cm
CPU power connector (4+4 pin) Yes
CPU power cable length 60 cm
ATX power connector (20+4 pin) Yes
Floppy drive power connector 1
Floppy disk drive cable length 12 cm
PCI Express connector Yes
Cabling type Fully-Modular

Performance

80 PLUS certification 80 PLUS Gold
Purpose PC
Power supply unit (PSU) form factor ATX
ATX version 2.31
Mean time between failures (MTBF) 100000 h

Design

Product colour Black
Cooling type Active
Fan diameter 12 cm
Number of fans 1 fan(s)
Fan location Top

Packaging content

Cables included CPU, PCIe, Peripheral (Molex), SATA

Weight & dimensions

Width 150 mm
Depth 140 mm
Height 86 mm

Logistics data

Harmonized System (HS) code 84733020
Manufacturer Part Number

GP-P750GM

Brand

GIGABYTE

UPC / EAN

0813567028710

SKU

GI209B328

Category

Power Supply Units

Subcategory

Power Supplies

Total power

750 W

AC input voltage

100 – 240 V

AC input frequency

50 – 60 Hz

Input current

12-6 A

Power Factor Correction (PFC) type

Active

Hold time

16 ms

Efficiency

90%

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Motherboard power connector

20+4 pin ATX

Motherboard power cable length

61 cm

Number of SATA power connectors

8

SATA power cable length

150,600 mm

Peripheral (Molex) power connectors (4-pin)

4

Peripheral (Molex) power cable length

120,500 mm

EPS power connector (4+4 pin)

Yes

PCI Express power connectors (6+2 pin)

4

PCI Express power cable length

60 cm

CPU power connector (4+4 pin)

Yes

CPU power cable length

60 cm

ATX power connector (20+4 pin)

Yes

Floppy drive power connector

1

Floppy disk drive cable length

12 cm

PCI Express connector

Yes

Cabling type

Fully-Modular

80 PLUS certification

80 PLUS Gold

Purpose

PC

Power supply unit (PSU) form factor

ATX

ATX version

2.31

Mean time between failures (MTBF)

100000 h

Product colour

Black

Cooling type

Active

Fan diameter

12 cm

Number of fans

1 fan(s)

Fan location

Top

Cables included

CPU, PCIe, Peripheral (Molex), SATA

Width

150 mm

Depth

140 mm

Height

86 mm

Harmonized System (HS) code

84733020

Product Documentation & Datasheet

Click the button below to view or download the official manufacturer documentation for this product:

📄 Download Official PDF Manual / Datasheet
