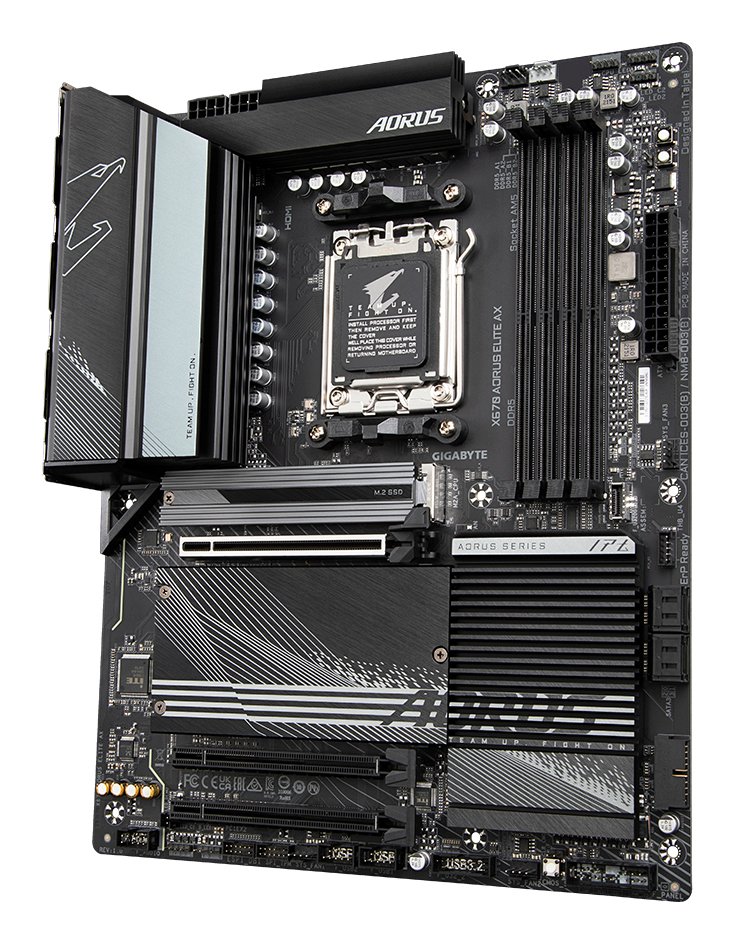

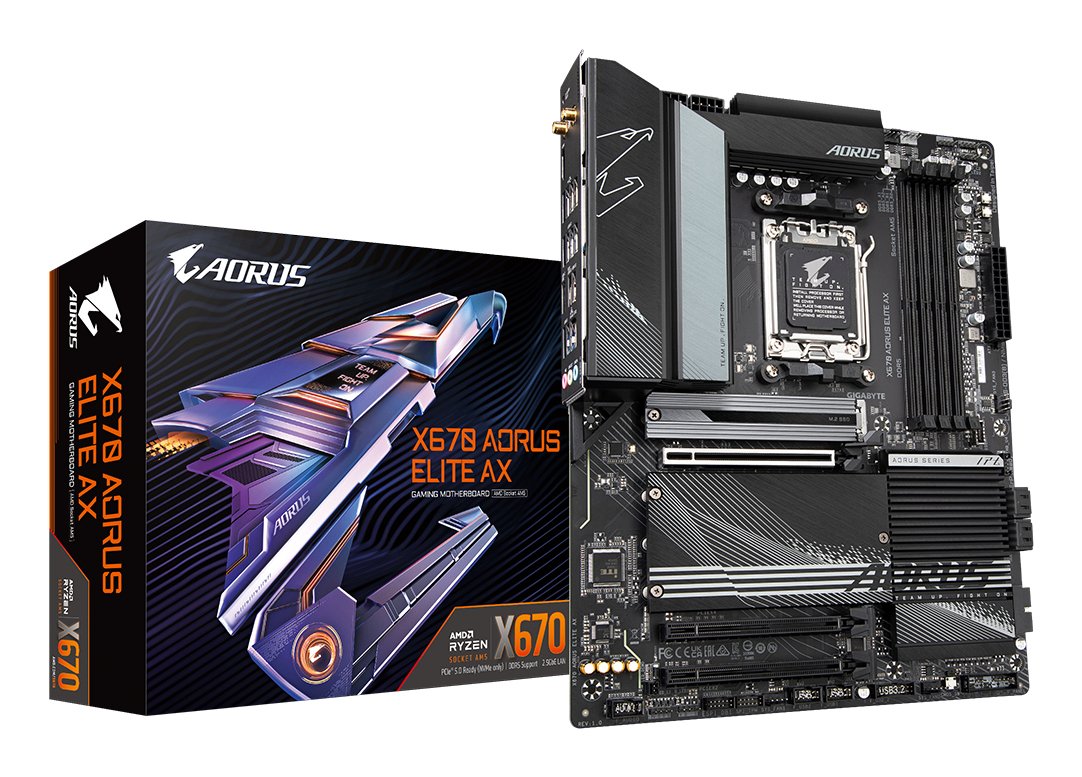

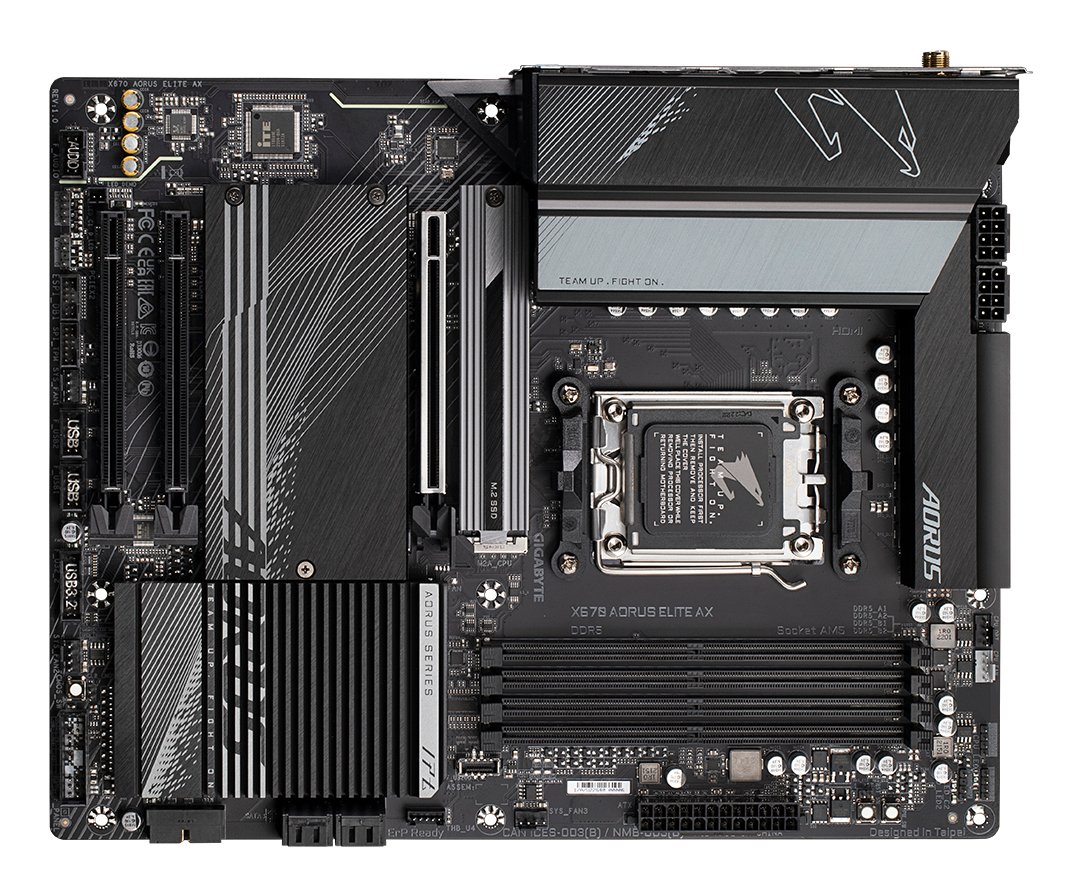

About This Product
Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Key Features & Highlights
- AMD Socket AM5：Supports AMD Ryzen 7000 Series / Ryzen 8000 / Ryzen 9000 Series Processors
- Unparalleled Performance：Twin 16*+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
- Next Generation Storage：1*PCIe 5.0 x4 and 3*PCIe 4.0 x4 M.2 Connectors
- Mega-Heatpipe & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance
- EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity：HDMI, Dual USB-C 20Gbps and Upcoming GIGABYTE USB4 AIC Support
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
📄 Product Documentation: Download Official Manual / Spec Sheet (PDF)
Technical Specifications
Processor
| Processor manufacturer | AMD |
|---|---|
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen™ 7 |
| Maximum number of SMP processors | 1 |
| Supported processor sockets | Socket AM5 |
| Maximum internal memory supported by processor | 192 GB |
Memory
| Supported memory types | DDR5-SDRAM |
|---|---|
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000 MHz |
| Supported memory clock speed (max) | 8000 MHz |
| Maximum internal memory | 192 GB |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB, 48GB |
Storage controllers
| Supported storage drive types | HDD & SSD |
|---|---|
| Supported storage drive interfaces | M.2, SATA II |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 8 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
Graphics
| Parallel processing technology support | Not supported |
|---|---|
| On-board graphics card | No |
| HDCP | Yes |
| DirectX version | 12.0 |
Internal I/O
| USB 2.0 connectors | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Total number of SATA connectors | 4 |
| Audio connector | Yes |
| Front panel connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| RGB LED pin header | Yes |
Rear panel I/O ports
| USB 2.0 ports quantity | 4 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| S/PDIF out port | Yes |
Network
| Ethernet LAN | Yes |
|---|---|
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
Features
| Motherboard chipset | AMD X670 |
|---|---|
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 10 Home x64, Windows 11 x64 |
Expansion slots
| PCI Express x16 (Gen 3.x) slots | 1 |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 2 |
| Number of M.2 (M) slots | 4 |
BIOS
| BIOS memory size | 256 Mbit |
|---|---|
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Logistics data
| Country of origin | China |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
Battery
| Battery weight | 3 g |
|---|---|
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
Packaging data
| Package width | 335 mm |
|---|---|
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 2.51 kg |
Weight & dimensions
| Width | 305 mm |
|---|---|
| Depth | 244 mm |
| Height | 35 mm |
Packaging content
| Cables included | SATA |
|---|---|
| Batteries included | Yes |
| Drivers included | Yes |
Technical details
| Warranty period | 3 year(s) |
|---|
