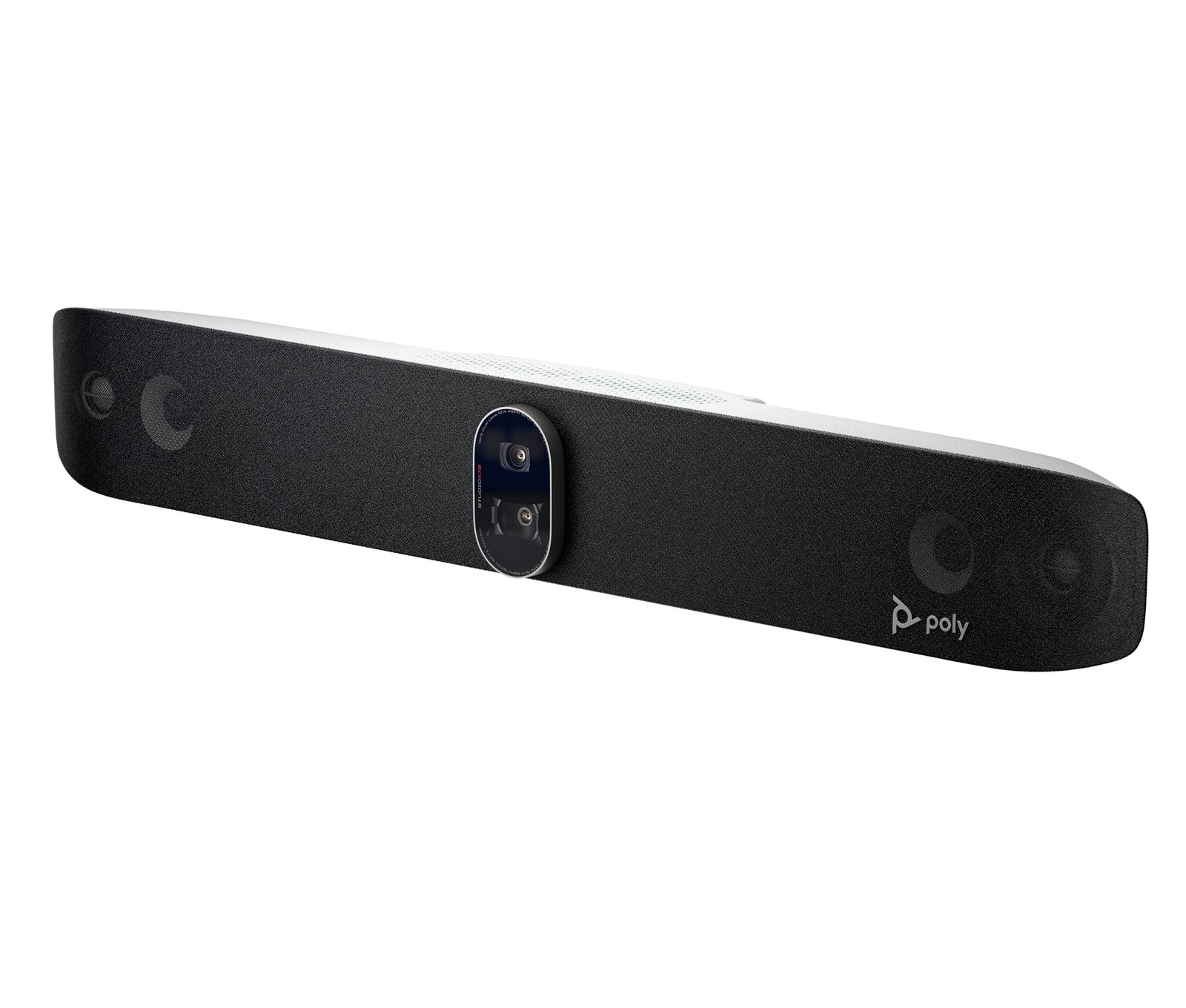

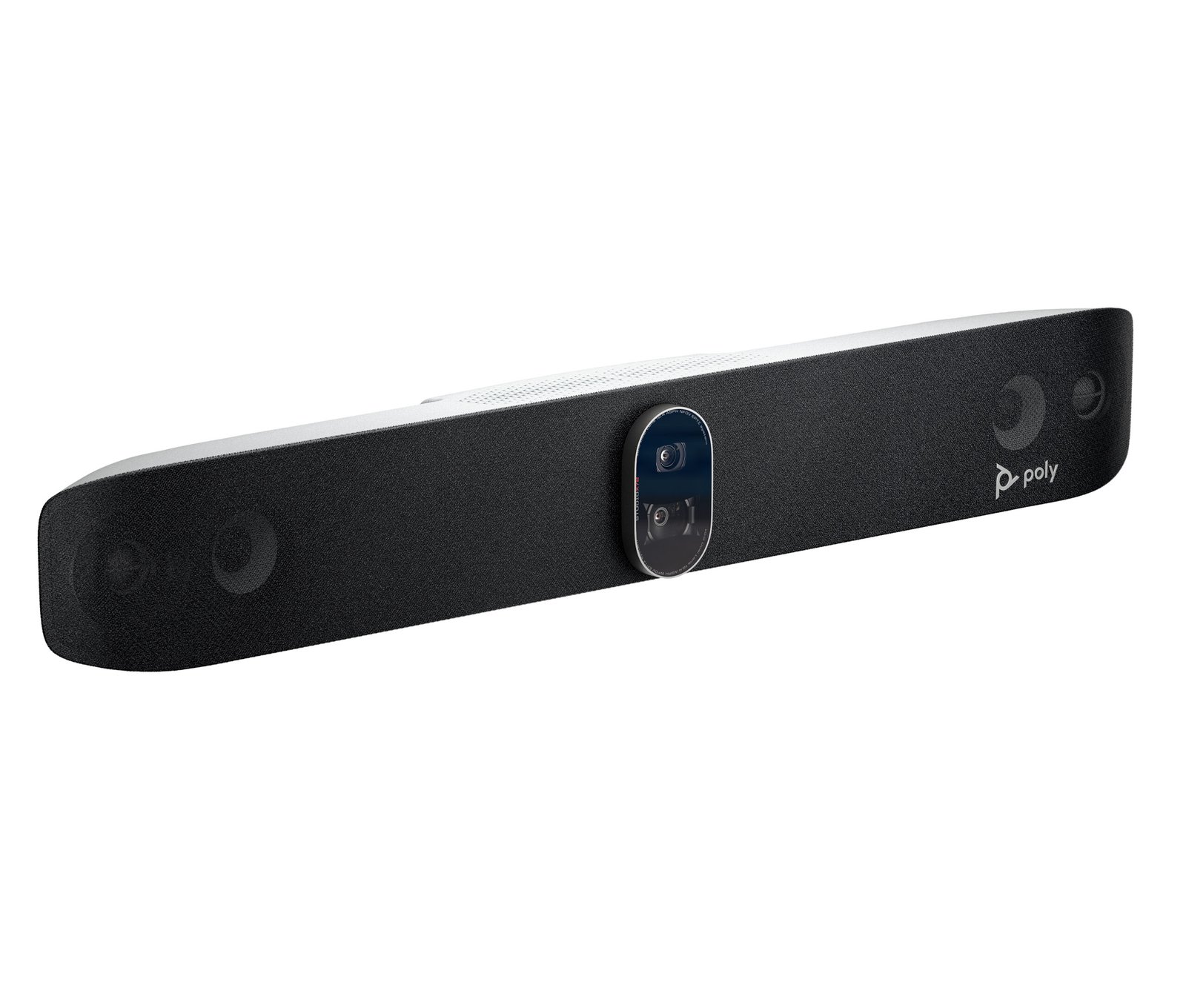

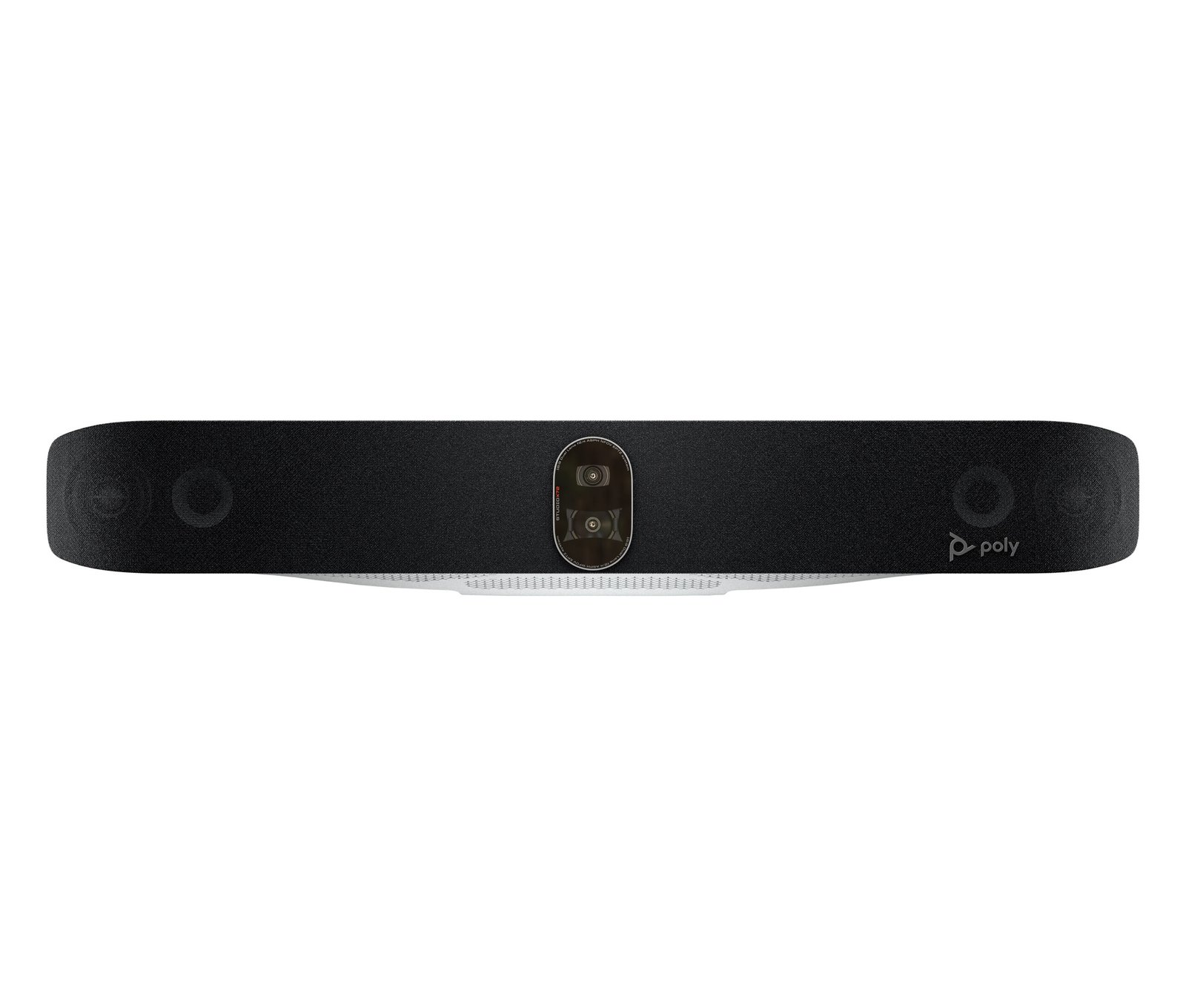

HP Poly Studio X72 All-In-One Video Bar

About This Product

Key Features & Highlights

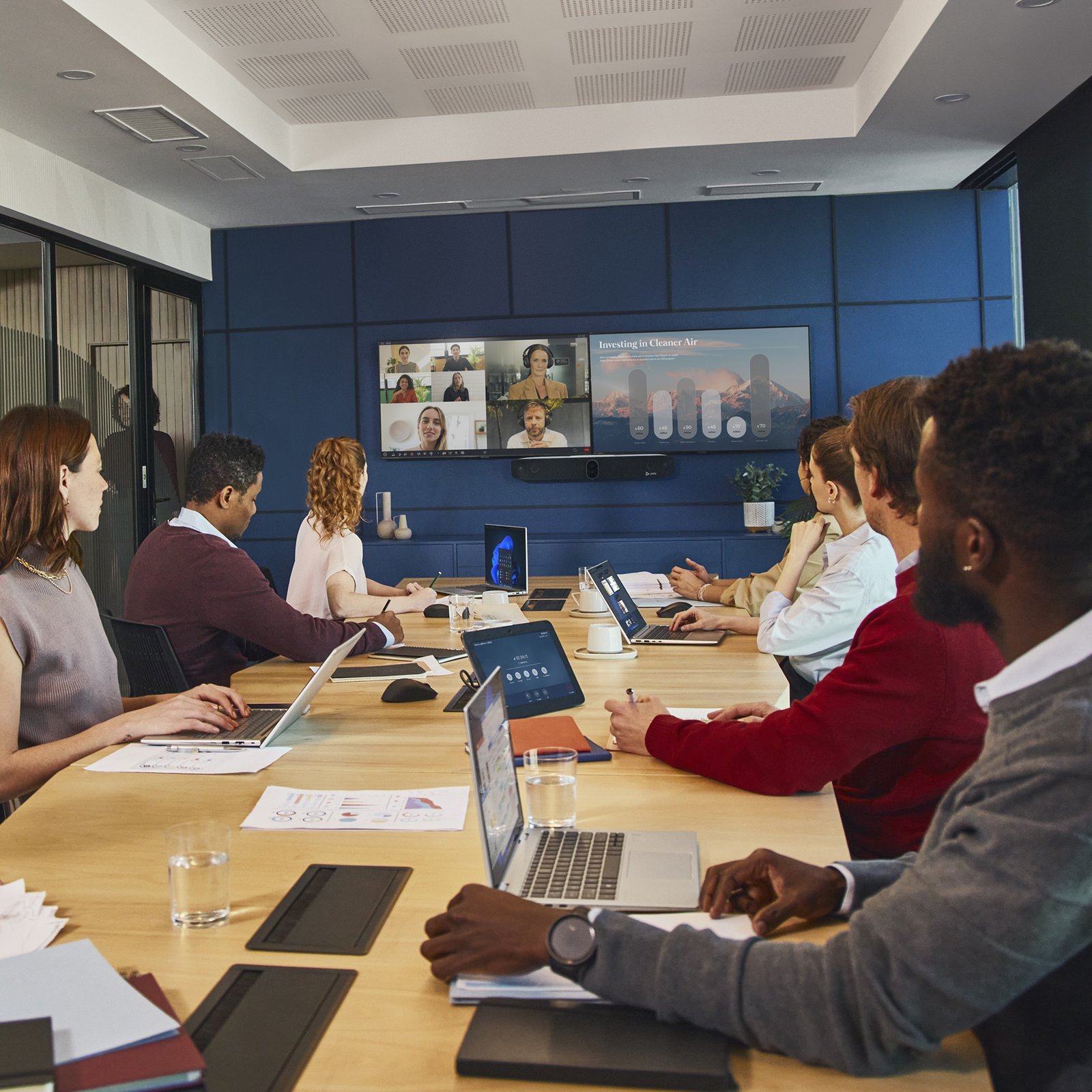

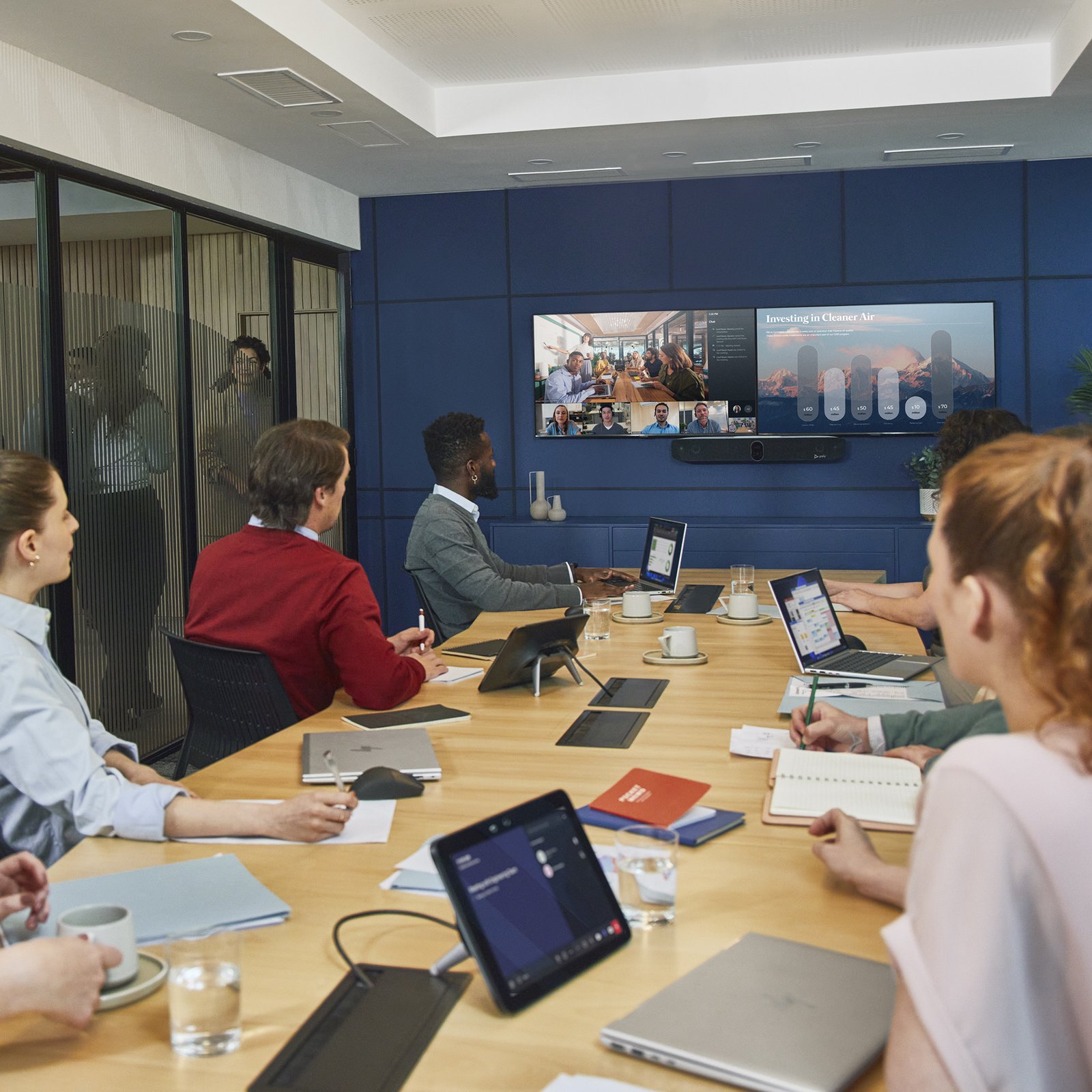

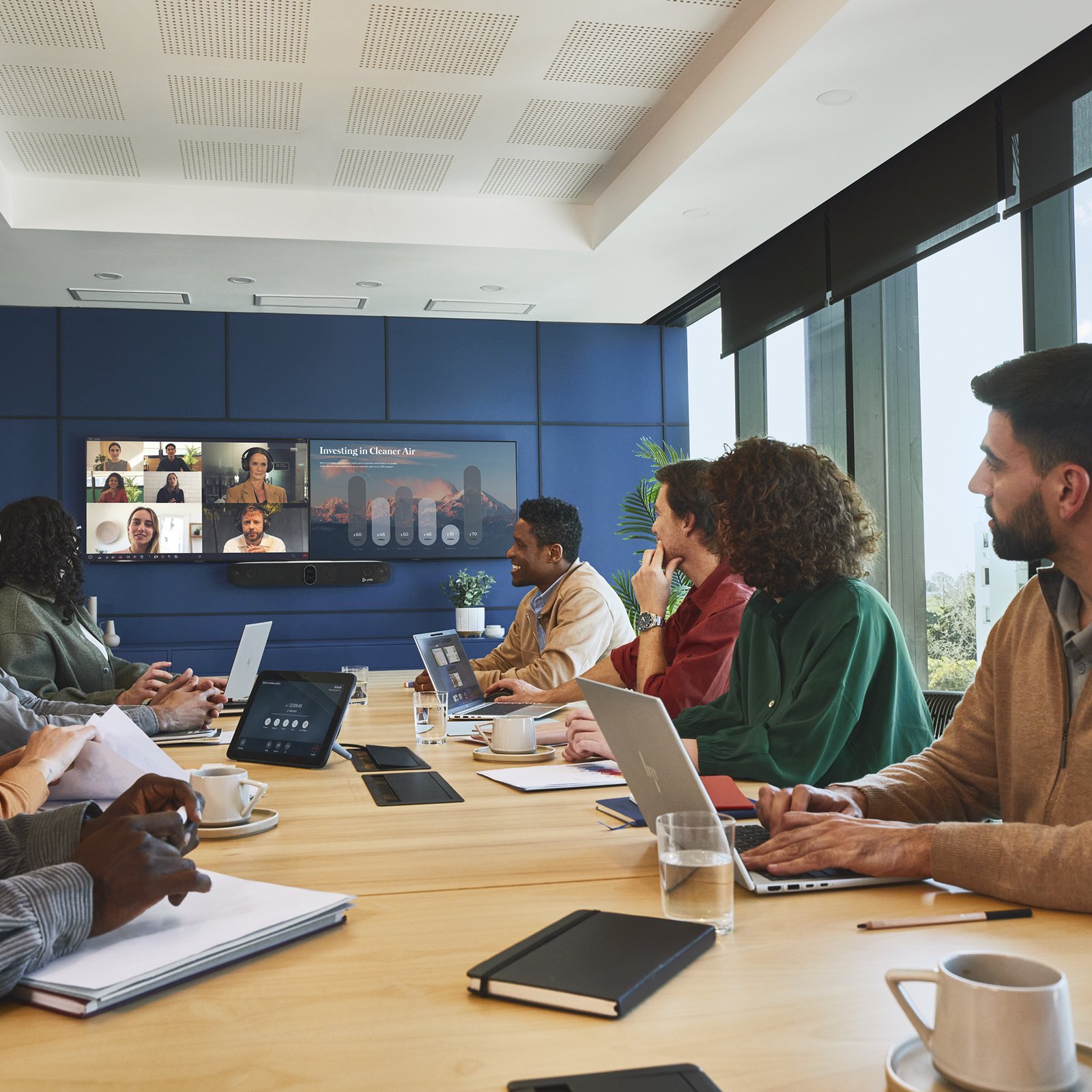

• Enable better collaboration in large rooms and elevate every meeting experience. With built-in AV AI technology, this all-in-one video bar makes communication effortless, so everyone feels included no matter where they are.
• The bigger the room, the more chances not everyone gets captured in the call. Easily extend audio and video as needed — just add Poly peripherals^[1] to fit the needs of your space and easily join calls with the app of your choice.
• Get your rooms ready in no time. The native cloud video experience simplifies setup, use and management, or you can connect to any standards-based video platform with full H.323 and SIP support. No PC needed. No tricky connections. No time to waste.
• Containing recycled plastics^[2] and shipped in paper-based packaging^[3] derived from at least 60% recycled materials, this all-in-one video bar enables more impactful meetings in large rooms with less impact on the environment.

Technical Specifications

Performance

Bluetooth	Yes
Bluetooth version	5.0
Product colour	Black
Product type	Video collaboration bar

Video

HD type	4K Ultra HD
Maximum video resolution	3840 x 2160 pixels
Supported video modes	1080p, 720p, 2160p
Supported graphics resolutions	1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1400 x 1050 (SXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160
Video formats supported	H.264, H.265, AVC

Audio

Built-in speaker(s)	Yes
Number of speakers	2
Voice codecs	G.165, G.719, G.722, G.722.1, G.728, G.729A
Automatic gain control	Yes
RMS rated power	20 W

Ports & interfaces

HDMI ports quantity	3
HDMI output ports quantity	2
HDMI input ports quantity	1
HDMI version	2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Line-in	Yes
Line-out	Yes
Microphone in	Yes

Network

Ethernet LAN	Yes
Ethernet LAN data rates	10,1000,100 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Camera

Megapixel (approx.)	20 MP
Camera type	Dual camera
Second camera resolution	20 MP
Zoom capability	Yes
Digital zoom	7.3x
Horizontal field of view	120°

Technical details

Total carbon footprint (kg of CO2e)	100
General Product Safety Regulation (GPSR) URL	https://kaas.hpcloud.hp.com/pdf-public/pdf_11006260_en-US-1.pdf

Logistics data

UNSPSC-code	45111902
Pallet gross weight	420 kg

Sustainability

Sustainability compliance	Yes
Sustainable technologies and materials	Contains recycled plastics; Paper-based packaging derived from at least 60% recycled materials

Operational conditions

Operating temperature (T-T)	0 – 40 °C
Operating relative humidity (H-H)	15 – 80%
Storage temperature (T-T)	-40 – 70 °C
Storage relative humidity (H-H)	5 – 95%
Heat dissipation	65 BTU/h

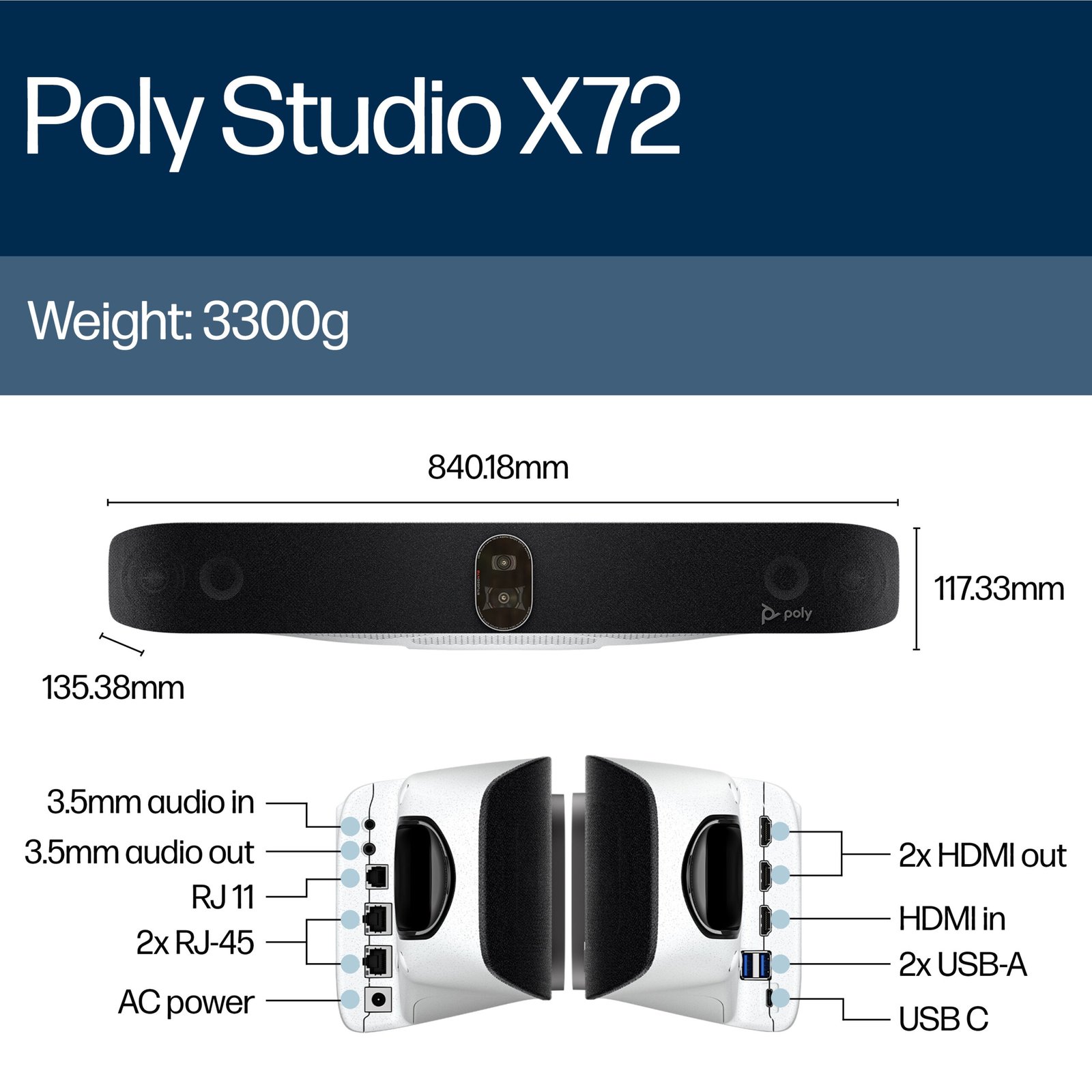

Weight & dimensions

Width	840.2 mm
Depth	135.4 mm
Height	117.9 mm
Weight	3.3 kg

Packaging data

Package width	920 mm
Package depth	163 mm
Package height	228 mm
Package weight	6.48 kg
