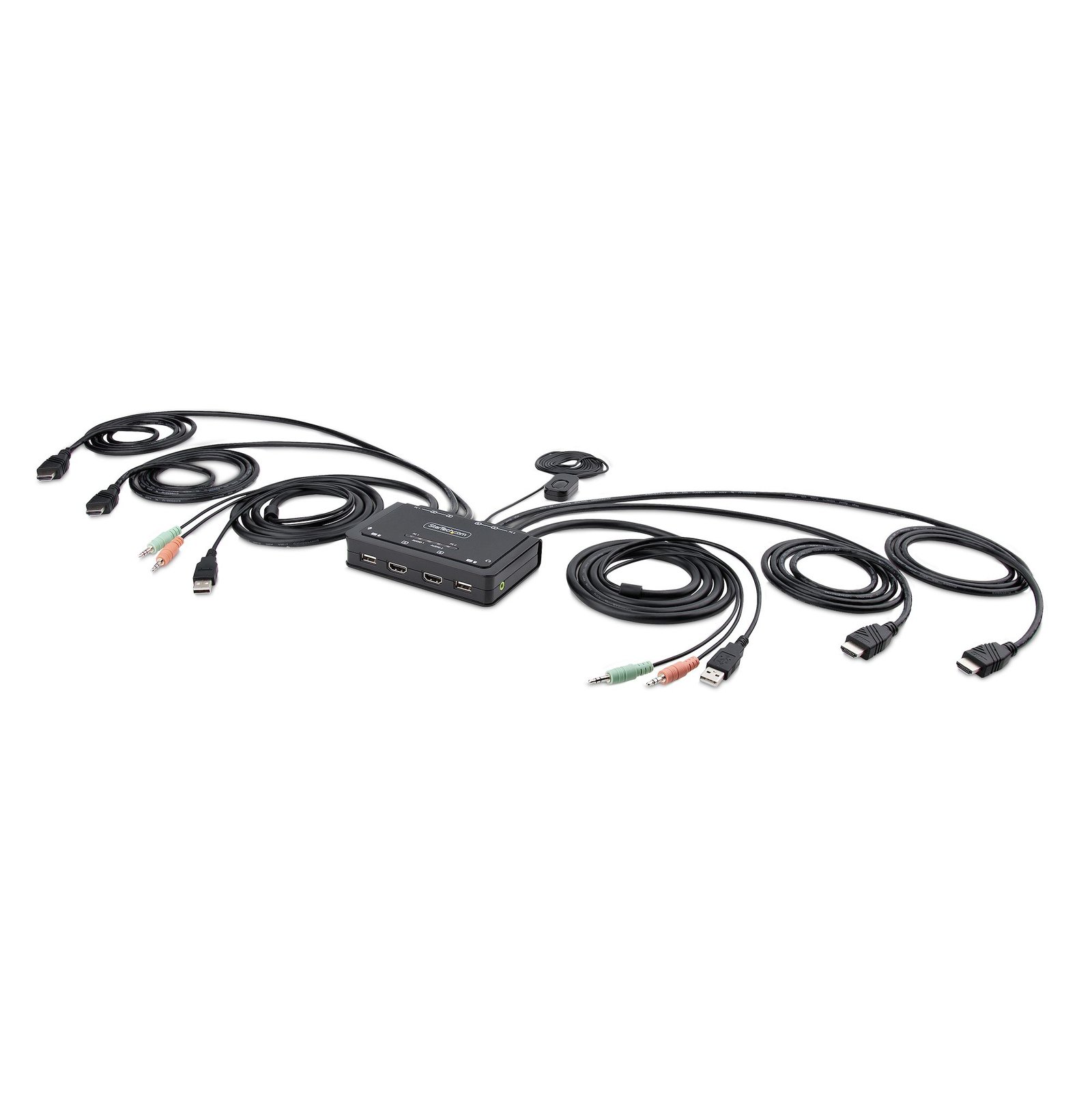

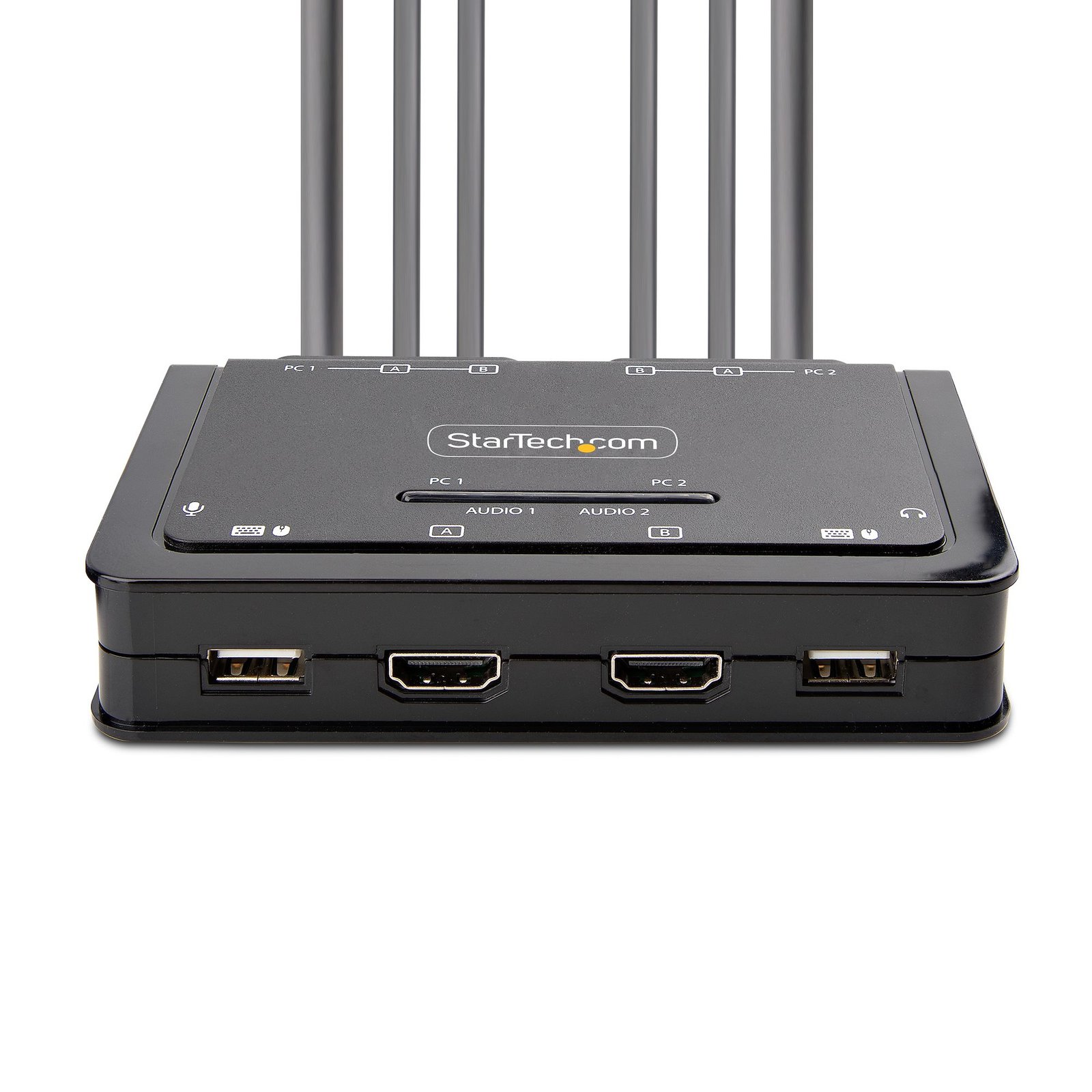

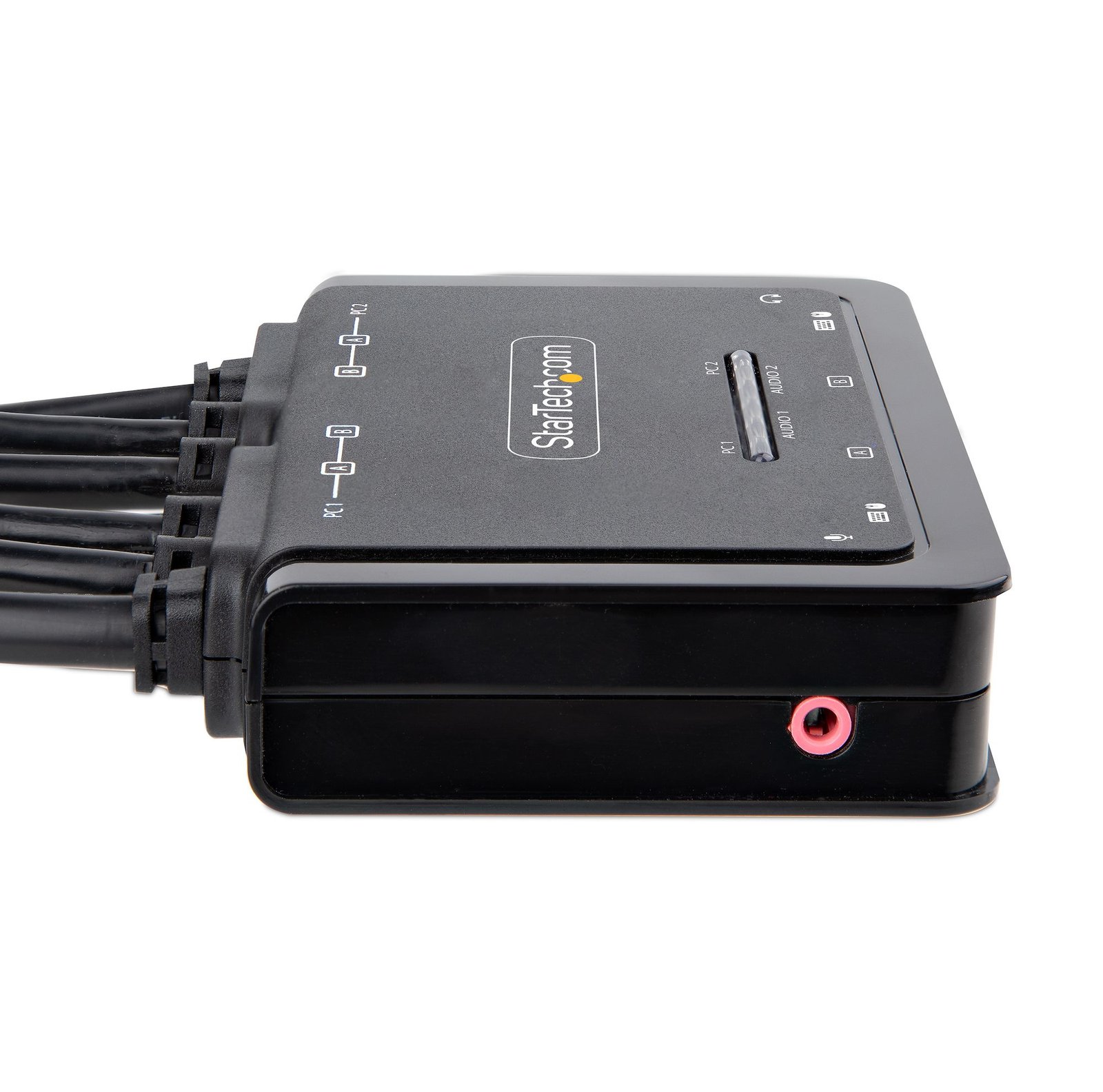

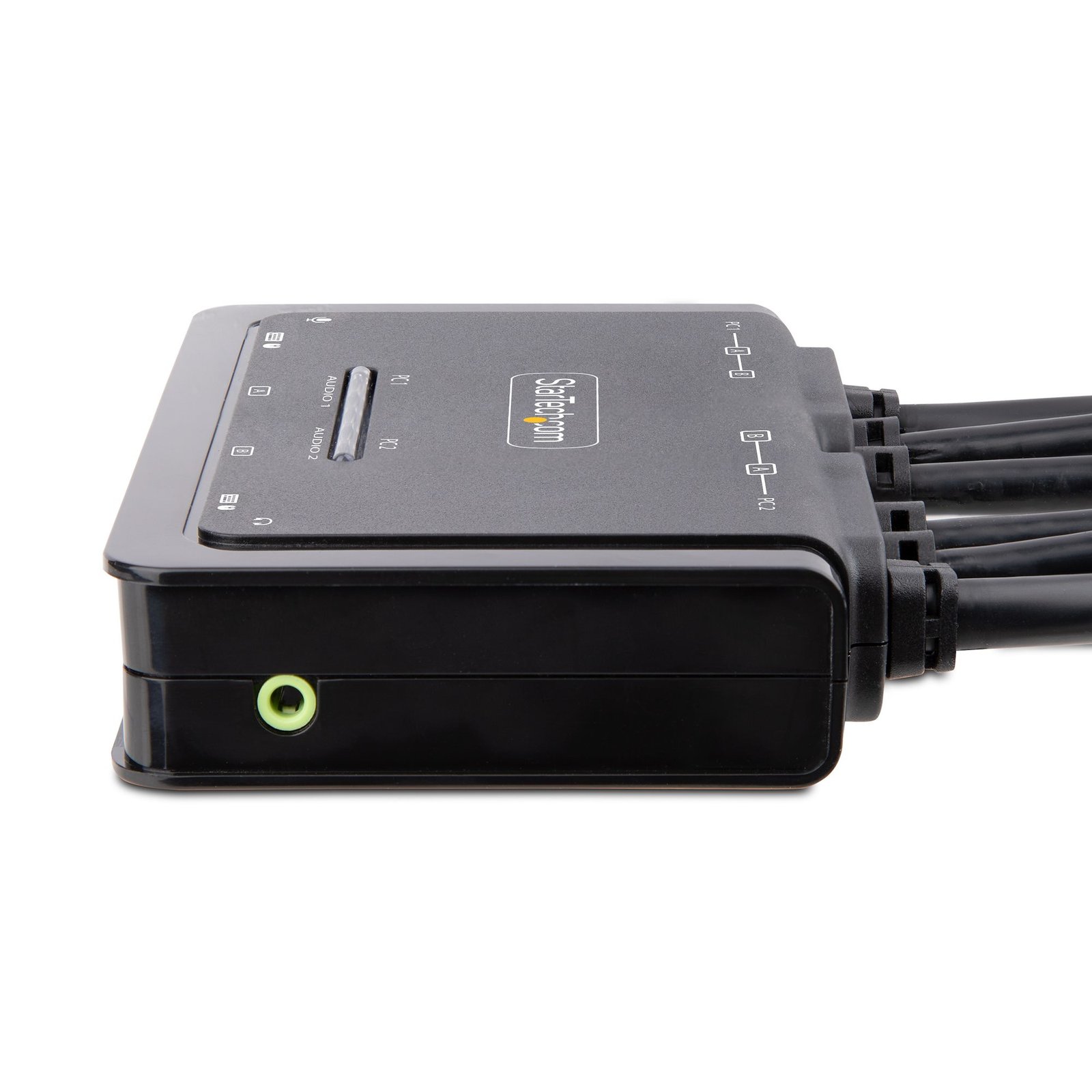

StarTech.com 2-Port Dual-Monitor HDMI Cable KVM Switch, 4K 60Hz, Compact KVM with 5ft/1.5m USB-A/HDMI/Audio Integrated Cables, Bus Powered – Remote Push Button/Hotkey Switching
Availability: 18 in stock
₹28,030.90
About This Product
Share a mouse, keyboard, and dual-4K 60Hz HDMI displays between two HDMI-enabled computers, using this KVM Switch with built-in cables

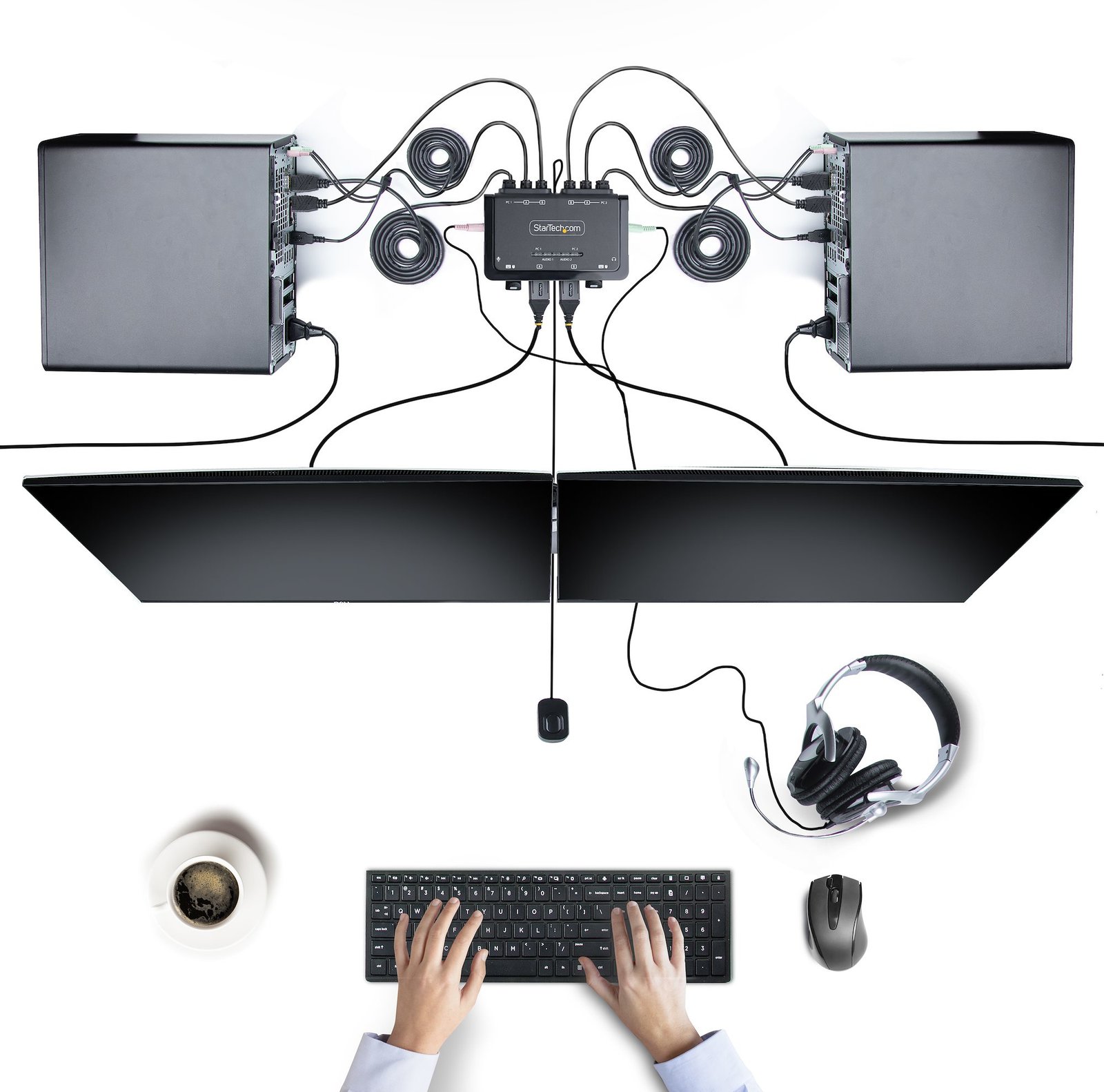

This Dual-Monitor KVM Switch enables users to switch between two USB-A and HDMI-enabled desktops, sharing dual-4K 60Hz HDMI monitors, a keyboard and mouse, and audio input/output devices.
Hassle-Free Setup

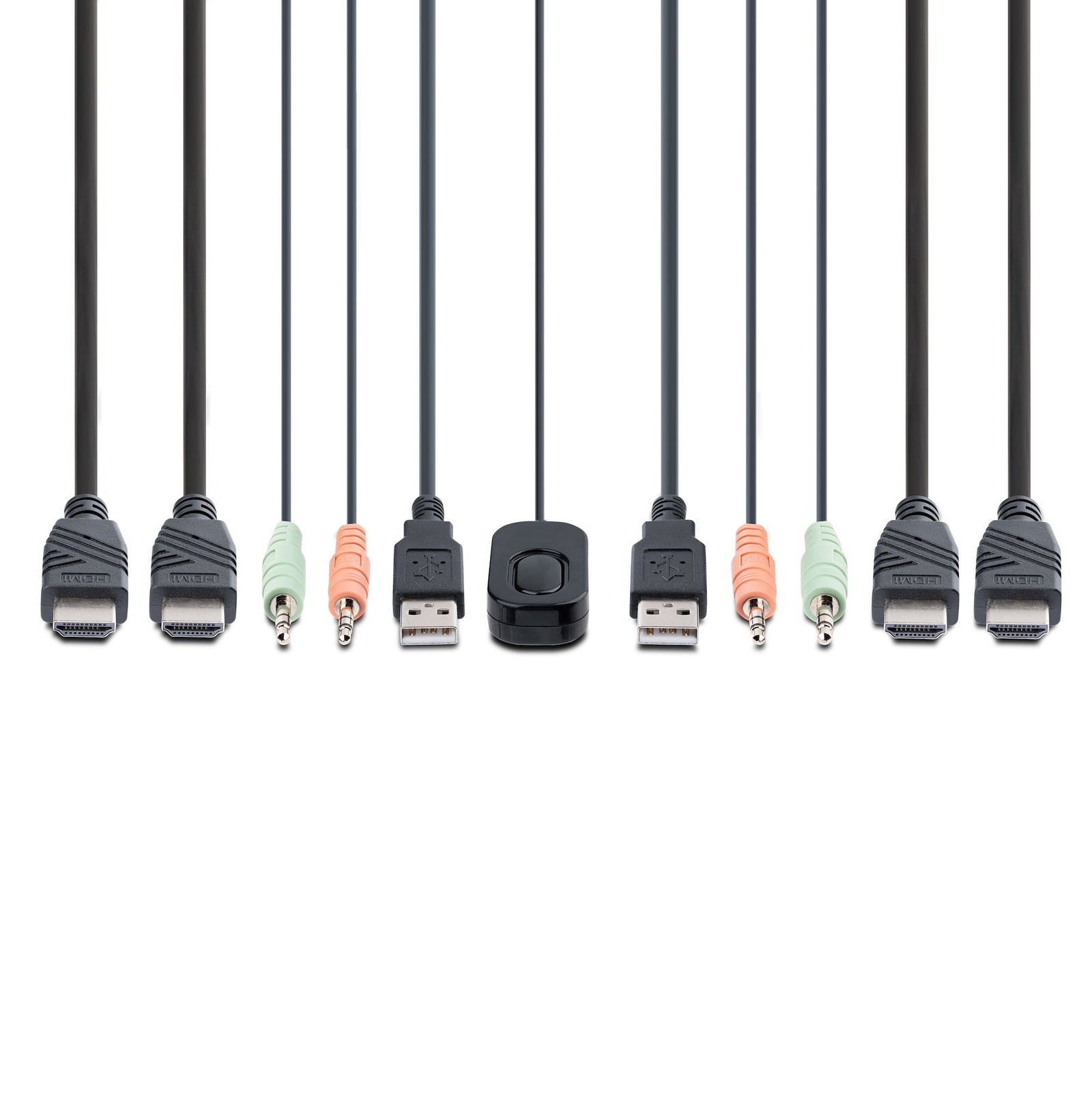

The KVM switch is bus powered and features built-in dual-HDMI, USB-A, and 3.5mm Audio Input/Output cables. This ensures compatibility and performance between the KVM switch, monitors, and peripherals – without the need to select and purchase the cables required for those connections.
Compatibility
The 2-port KVM switch is compatible with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM works with all hardware platforms including Intel, AMD, and Apple M1/M2.
Intuitive Control
The KVM switch features two options to switch between hosts – a remote push button and hotkey commands, using the downloadable software. The remote push button includes a 1.5m cable for optimal placement in the setup. Independent audio switching can be achieved through the software, utilizing keyboard shortcuts (i.e., hotkeys), ensuring uninterrupted audio when switching between host devices.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• MAC Address Pass-Through Utility: Improve network security.
• USB Event Monitoring Utility: Track and log connected USB devices.
• Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools
Key Features & Highlights
- DUAL 4K 60HZ MONITOR KVM SWITCH: Enables switching between two USB-A and HDMI-enabled desktops to share a mouse, keyboard, audio, and dual-4K 60Hz HDMI displays
- READY-TO-USE: Small form factor, integrated cables, and no external power adapter enable rapid deployment; Bus-powered KVM switch features integrated 5ft/1.5m host cables to allow for extended reach, reducing port and connector strain
- SWITCHING OPTIONS: Remote Push Button and Hotkey Commands enable switching between hosts; Remote push button has a 1.5m cable for ideal placement in the setup; Downloadable software allows listening to audio from one computer, while controlling the other
- COMPATIBILITY: 2-Port Dual-Monitor KVM Switch works with any operating system including Windows, macOS, Linux, and ChromeOS; Compatible with all hardware platforms such as Intel and AMD
- OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with USB Event Monitoring for logging USB device connections with timestamps, and Windows Layout to restore windows locations upon switching hosts
📄 Product Documentation: Download Official Manual / Spec Sheet (PDF)
Technical Specifications
Ports & interfaces
| Number of computers controlled | 2 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 4 |
| HDMI version | 2.1 |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Console USB ports quantity | 2 |
| Console HDMI ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 2 |
| Number of microphone inputs | 2 |
Performance
| HD type | 4K Ultra HD |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Data transfer rate (max) | 0.48 Gbit/s |
| Scan interval | 10,20,30,40,50,60 s |
| Chipset | SN8P2202SG |
| Audio channels | 2.0 |
| Number of displays supported | 2 |
Design
| Rack mounting | No |
|---|---|
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Cable length | 1.5 m |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 26928 h |
Display
| Built-in display | No |
|---|---|
| On Screen Display (OSD) | No |
Power
| Power source | USB |
|---|
System requirements
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
|---|---|
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Other operating systems supported | ChromeOS |
Sustainability
| Sustainability compliance | Yes |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Operating temperature (T-T) | 0 – 40 °C |
|---|---|
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 0 – 90% |
Weight & dimensions
| Width | 127 mm |
|---|---|
| Depth | 83 mm |
| Height | 26 mm |
| Weight | 600 g |
Packaging data
| Package width | 163 mm |
|---|---|
| Package depth | 214 mm |
| Package height | 105 mm |
| Package weight | 800 g |
Packaging content
| Quick installation guide | Yes |
|---|
Other features
| IP control | No |
|---|
Logistics data
| Master (outer) case width | 449 mm |
|---|---|
| Master (outer) case length | 332 mm |
| Master (outer) case height | 356 mm |
| Products per master (outer) case | 12 pc(s) |
| Manufacturer Part Number | C2-DH46-UA2-CBL-KVM |
|---|---|
| Brand | STARTECH.COM |
| UPC / EAN | 0065030899222 |
| SKU | GD1105319 |
| Category | KVM Switches |
| Subcategory | Kvm Switch Entry |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 4 |
| HDMI version | 2.1 |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Console USB ports quantity | 2 |
| Console HDMI ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 2 |
| Number of microphone inputs | 2 |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Video bandwidth | 60 Hz |
| Data transfer rate (max) | 0.48 Gbit/s |
| Scan interval | 10,20,30,40,50,60 s |
| Chipset | SN8P2202SG |
| Audio channels | 2.0 |
| Number of displays supported | 2 |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Cable length | 1.5 m |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 26928 h |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power source | USB |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Other operating systems supported | ChromeOS |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 0 – 90% |
| Width | 127 mm |
| Depth | 83 mm |
| Height | 26 mm |
| Weight | 600 g |
| Package width | 163 mm |
| Package depth | 214 mm |
| Package height | 105 mm |
| Package weight | 800 g |
| Quick installation guide | Yes |
| IP control | No |
| Master (outer) case width | 449 mm |
| Master (outer) case length | 332 mm |
| Master (outer) case height | 356 mm |
| Products per master (outer) case | 12 pc(s) |
Product Documentation & Datasheet
Click the button below to view or download the official manufacturer documentation for this product:
📄 Download Official PDF Manual / DatasheetRelated products
-
Kvm Switch Entry
StarTech.com Laptop-to-Server KVM Console with Rugged Housing – TAA
₹61,539.95 Add to cart -
Kvm Switch Entry

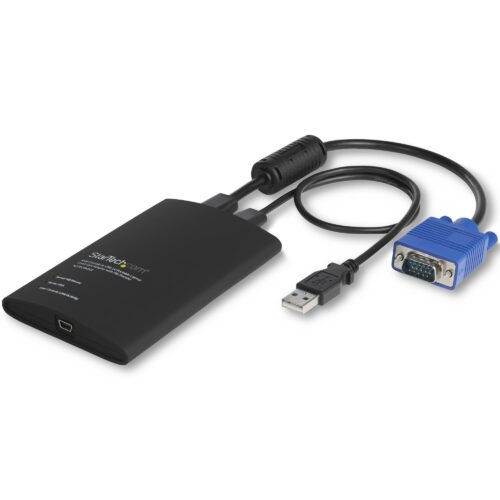

StarTech.com USB Crash Cart Adapter with File Transfer & Video Capture – TAA
