About This Product
Connect hard-to-reach USB 2.0 peripherals, for installation in narrow spaces

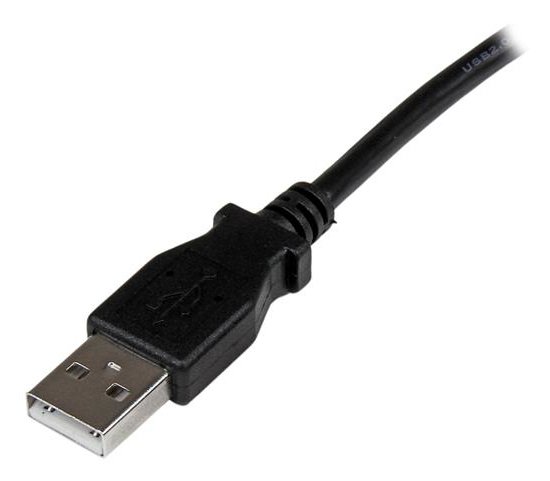

The USBAB2MR 2-meter USB printer cable features one USB ‘A’ male connector and one right-angle USB ‘B’ male connector, providing a high-quality connection to USB 2.0 peripherals.
The right-angled USB ‘B’ connector allows you to connect to your hard-to-reach USB 2.0 printers, scanners, external hard drives, etc. and enables installation in narrow spaces.
Constructed of only top quality materials and expertly designed for durability, this angled USB cable is backed by StarTech.com’s Lifetime Warranty.
As an alternative, StarTech.com also offers a 2m USB 2.0 A to Left Angle B Cable (USBAB2ML), which provides the same convenience as this right-angled cable, but allows you to connect to your USB device from the opposite direction.
Key Features & Highlights
- 1x USB 'A' male connector
- 1x Right-angled USB 'B' male connector
- Aluminum-Mylar Foil with Braided Shielding
- Supports USB 2.0 data transfer rates up to 480 Mbps
Technical Specifications
Features
| USB version | USB 2.0 |
|---|---|
| Connector 1 | USB A |
| Connector 2 | USB B |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Angled |
| AWG wire size | 24/28 |
| Connector contacts plating | Nickel |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Cable shielding | Aluminum mylar foil |
| Maximum data transfer rate | 0.48 Gbit/s |
| Cable type | Round cable |
| Plug and Play | Yes |
| Product colour | Black |
Weight & dimensions
| Cable length | 2 m |
|---|---|
| Width | 15 mm |
| Height | 10 mm |
| Weight | 60.6 g |
Packaging data
| Package width | 123 mm |
|---|---|
| Package depth | 145 mm |
| Package height | 24 mm |
| Package weight | 66.1 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Operational conditions
| Operating temperature (T-T) | -20 – 60 °C |
|---|---|
| Storage temperature (T-T) | 10 – 30 °C |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, REACH |
Logistics data
| Products per master (outer) case | 150 pc(s) |
|---|---|
| Master (outer) case width | 346 mm |
| Master (outer) case length | 396 mm |
| Master (outer) case height | 312 mm |
| Export Control Classification Number (ECCN) | EAR99 |
| Harmonized System (HS) code | 84733080 |
