About This Product
Industrial-grade | 8kV Air | 4kV Contact | Metal | Mountable | DIN Rail | 480 Mbps
This TAA compliant 4-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.
Perfect for Harsh Environments
This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.
Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 55°C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.
Connect More USB Devices
Designed for a high volume of connections, this robust USB 2.0 hub offers four connection ports, for connecting more USB devices and peripherals.
Locate the Hub Where You Need It Most

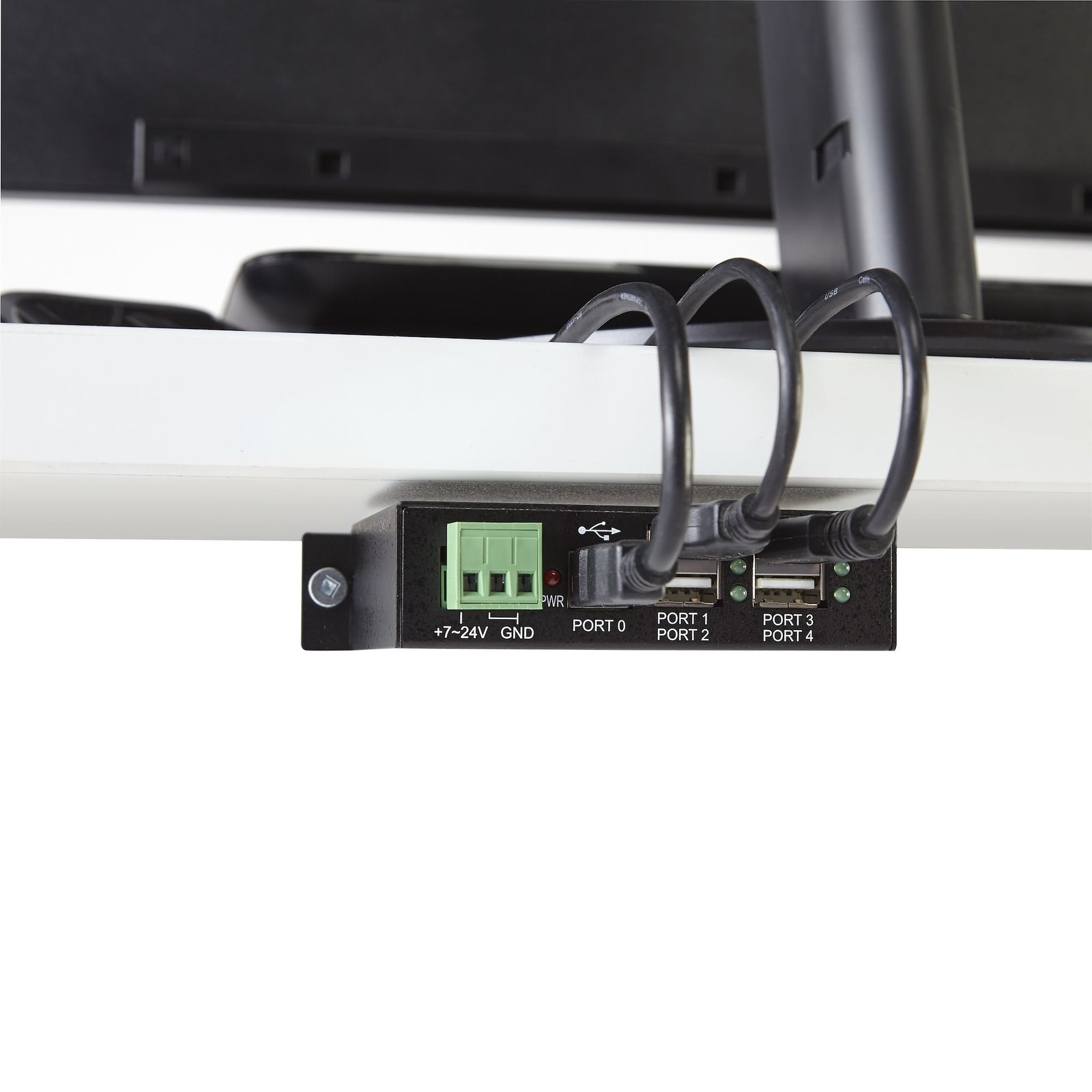

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets, included DIN mount rails, and an included 2-meter USB host cable, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.
StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.
Works with Older USB Devices
The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.
The ST4200USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Key Features & Highlights
- Protects your connected devices with 8kV Air and 4kV Contact ESD protection
- Mount industrial USB 2.0 hub where required with built-in mounting brackets or included DIN rails

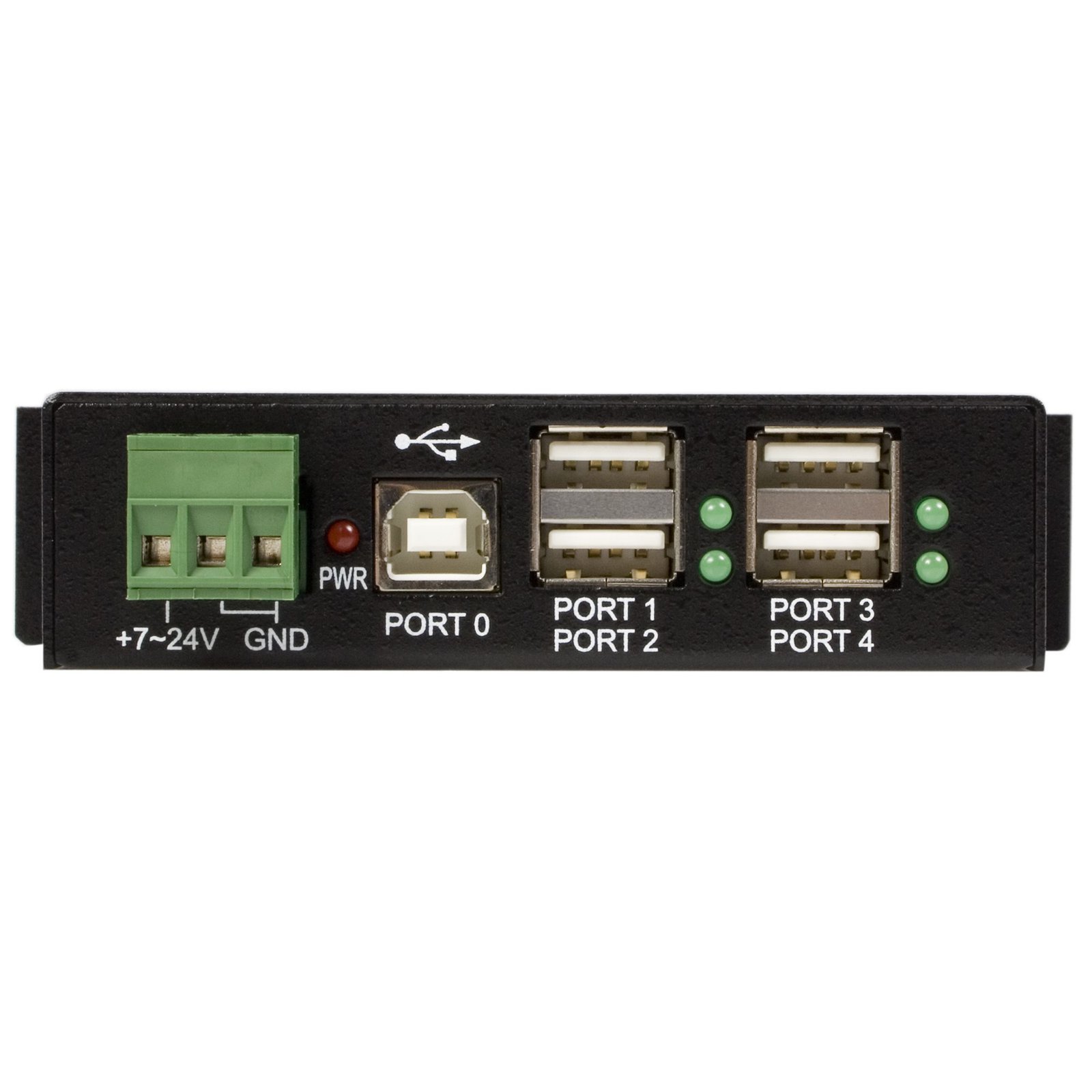

- Offers flexible, wide-range power inputs with a 7-24V DC terminal block
- Adds four USB 2.0 ports from a single USB connection
Technical Specifications
Ports & interfaces
| Host interface | USB 2.0 Type-B |
|---|---|
| Hub interfaces | USB 2.0 |
| USB 2.0 ports quantity | 4 |
| Ports quantity | 4 |
| Card reader integrated | No |
| Terminal block port | Yes |
| DC-in jack | No |
Features
| Data transfer rate | 480 Mbit/s |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Power |
| Plug and Play | Yes |
| Certification | CE, FCC, TAA, RoHS |
Power
| Input voltage | 7 – 24 V |
|---|
Weight & dimensions
| Width | 57.3 mm |
|---|---|
| Depth | 114 mm |
| Height | 26 mm |
| Weight | 207 g |
Packaging data
| Package width | 145 mm |
|---|---|
| Package depth | 205 mm |
| Package height | 39 mm |
| Package weight | 400 g |

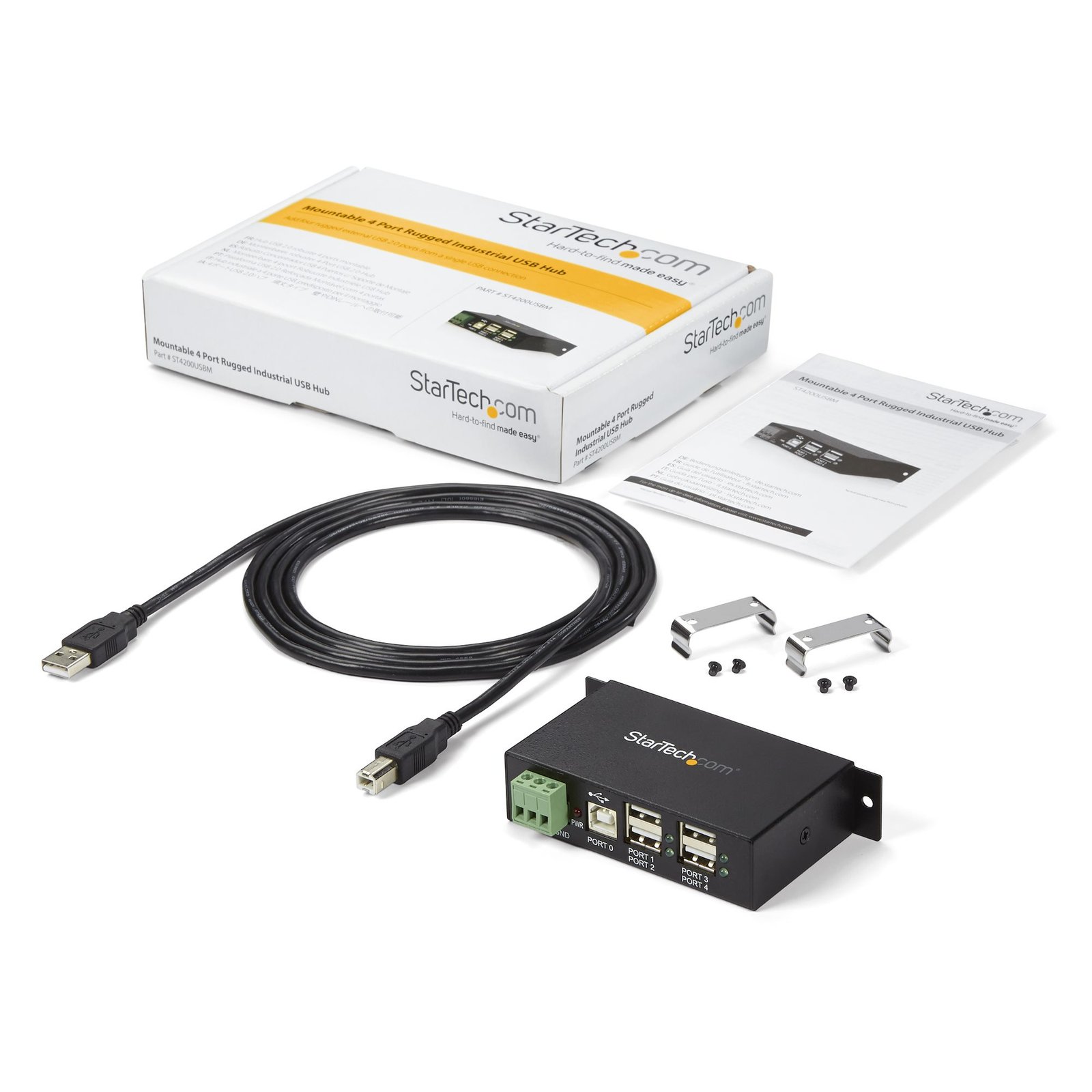

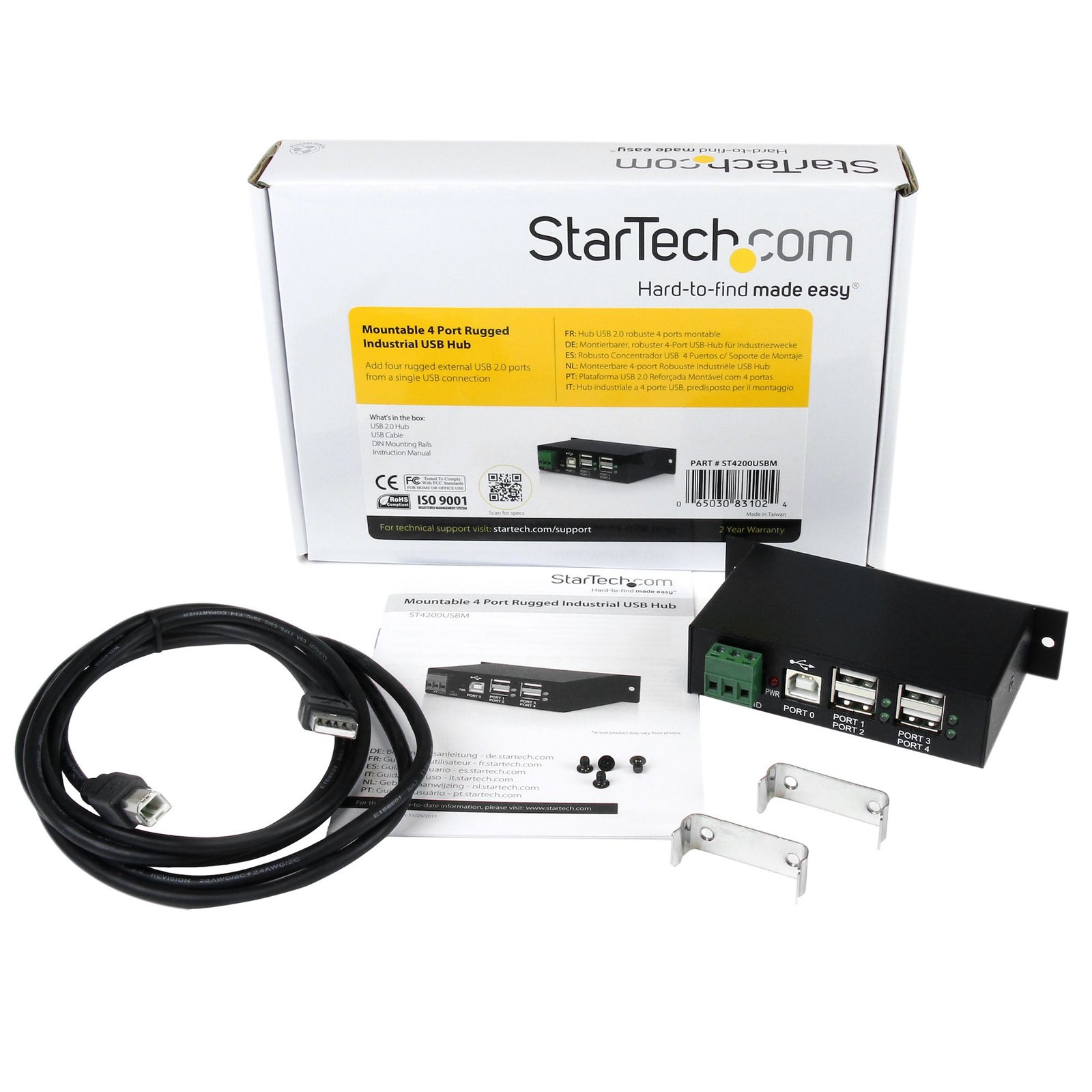

Packaging content
| Cables included | USB |
|---|---|
| Manual | Yes |
| DIN rail kit included | Yes |
Operational conditions
| Operating temperature (T-T) | 0 – 55 °C |
|---|---|
| Storage temperature (T-T) | -20 – 85 °C |
| Operating relative humidity (H-H) | 5 – 95% |
Performance
| Mean time between failures (MTBF) | 193317 h |
|---|
Logistics data
| Master (outer) case width | 445 mm |
|---|---|
| Master (outer) case length | 520 mm |
| Master (outer) case height | 335 mm |
| Products per master (outer) case | 50 pc(s) |
| Harmonized System (HS) code | 84719000 |
Other features
| Chipset | Renesas/NEC – µPD720114 |
|---|
