About This Product
2x USB 3.2 Gen 2 (10Gbps) Type-A | 2x USB 3.2 Gen 2 (10Gbps) Type-C

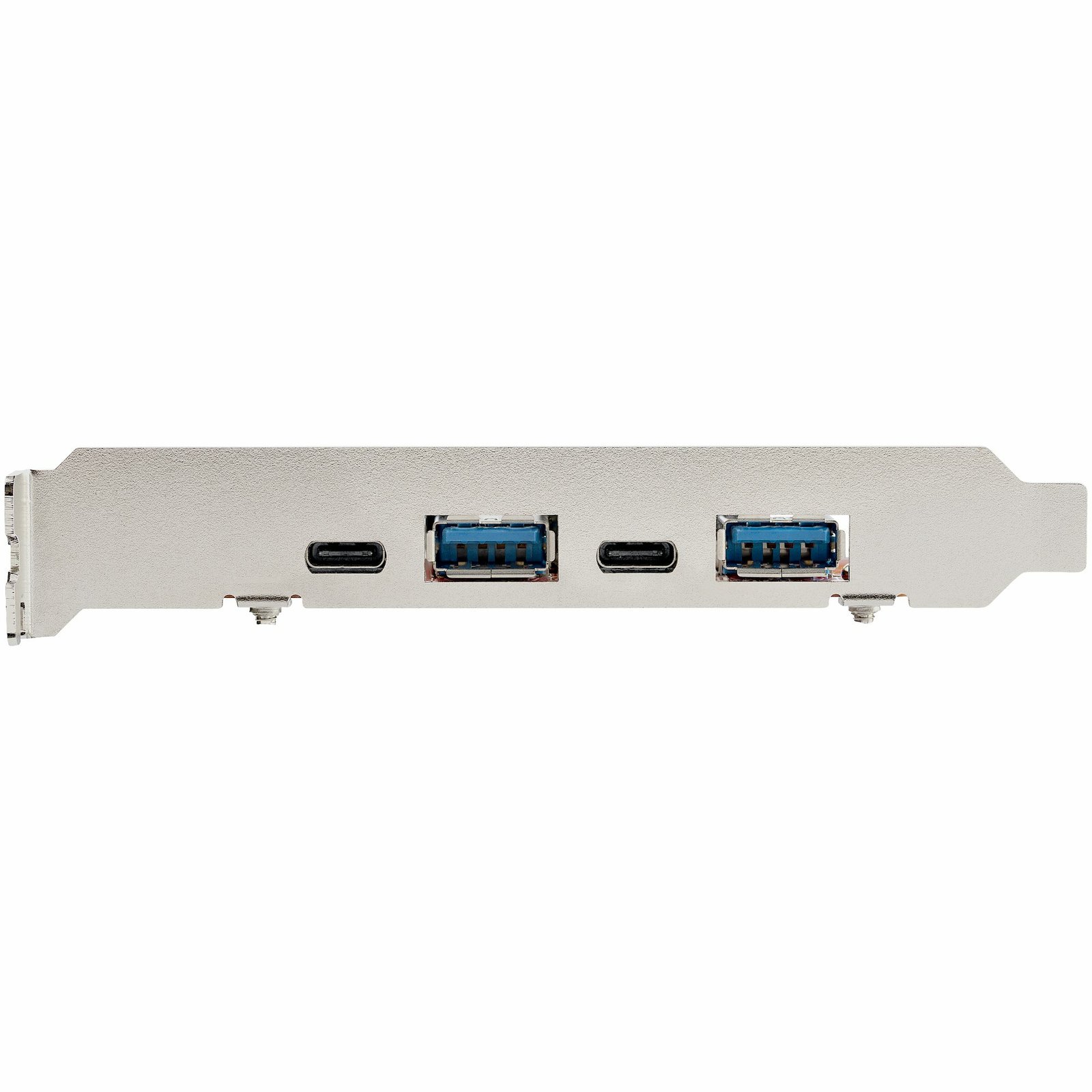

This 4-port USB 3.2 Gen 2 (10Gbps) combo card makes it easy to add to the performance and connectivity of your computer. The USB 3.2 card offers two USB Type-C™ port (10Gbps), and two traditional USB Type-A ports (10Gbps).
By offering two different USB port types, you can easily connect a variety of USB devices to your desktop computer.
Because the card offers 10Gbps USB ports, you can save time and avoid the performance bottlenecks that are often associated with other connectivity technologies.
USB 3.2 Gen 2 (10Gbps) is also known as USB 3.1 (10Gbps).
Work faster and prepare for the future
This versatile PCI Express combo card leverages the performance potential of USB 3.2 Gen 2 (10Gbps) to help you work faster. The USB ports offer a data throughput of up to 10Gbps, so you can spend less time waiting for file transfers to complete or for access to your external peripherals.
Connect different types of USB devices
Now you can easily add a variety of types and speeds (generations) of USB ports to your desktop or server, using a single adapter card. The card features:
• Two external USB-C port (USB 10Gbps)
• Two external USB-A ports (USB 10Gbps)
With a range of port types, the card lets you bridge the gap between devices that use different connectors. You can simultaneously connect and access USB Type-A and USB Type-C devices, while using only a single PCI Express expansion slot.
By adding two types of USB ports in one combo card, you can free up space in your PC case, and eliminate the nuisance of having different cards for different USB devices.
Connect your older USB devices
Connecting your older peripherals isn’t a problem. This 4-port USB 3.2 card is backward compatible with legacy USB 3.2 Gen 1, 2.0 and 1.1 devices, so you can eliminate the added expense and aggravation of purchasing new devices.
USB 3.2 Gen 1 is also known as USB 3.0 (5Gbps).
The PEXUSB312A2C2V is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note: The card does not support DP alt mode or USB Power Delivery.
Key Features & Highlights

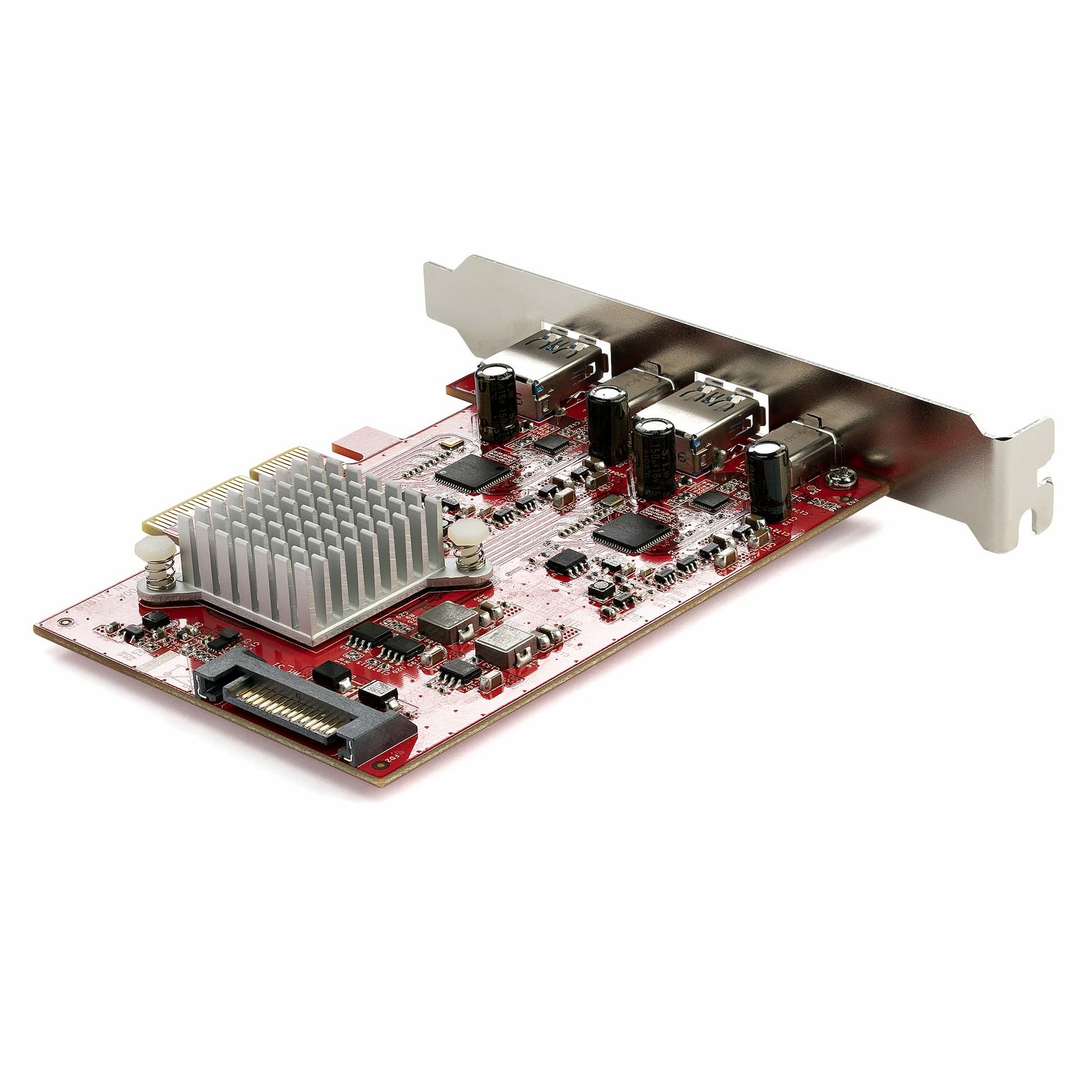

- HIGH PERFORMANCE: 4 Port USB PCIe card with dual ASM3142 controllers with up to 20Gbps total bandwidth across 4 ports; 2x USB-A (10Gbps) 2x USB-C (10Gbps) hub; Supports USB 3.2 Gen 2
- TRANSFER SPEEDS UP TO 10Gbps: USB-A & USB-C PCIe card adapter supports Multiple INs maintaining max bandwidth with mixed speed devices; UASP support; ideal for use with USB devices & external storage like SSDs, HDDs, NVMe drives; Works w/ USB 3.2 Gen 2/3.0/2.0
- OPTIONAL POWER: USB PCIe expansion card with SATA power supplies supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 3A/15W per USB Type-C port & 5V 0.9A/4.5W per USB Type-A port
- COMPATIBILITY: USB C add-on card installs in full-profile PCIe 3.0 (x4 slot) desktop/server; lower performance with PCI-e 2.0; Windows/Linux/macOS auto driver install (Windows 8 & up)
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; These this USB-A & USB-C combo PCI Express Host Controller card is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
Technical Specifications
Ports & interfaces
| Host interface | PCIe |
|---|---|
| Output interface | USB 3.2 Gen 2 (3.1 Gen 2) |
| Expansion card standard | PCIe 3.0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Internal SATA ports quantity | 1 |
Design
| Internal | Yes |
|---|---|
| Product colour | Red |
Features
| Chipset | ASMedia – ASM3142, ASMedia – ASM2806 |
|---|---|
| Data transfer rate (max) | 10 Gbit/s |
| UASP support | Yes |
Operational conditions
| Operating temperature (T-T) | 0 – 70 °C |
|---|---|
| Storage temperature (T-T) | -20 – 80 °C |
| Operating relative humidity (H-H) | 15 – 90% |
System requirements
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
|---|---|
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2019 |
Technical details
| Compliance certificates | CE, RoHS |
|---|
Weight & dimensions
| Width | 85 mm |
|---|---|
| Depth | 112 mm |
| Height | 22 mm |
| Weight | 80 g |
Packaging data
| Mounting brackets included | Yes |
|---|---|
| Quick installation guide | Yes |
| Package width | 142 mm |
| Package depth | 175 mm |
| Package height | 34 mm |
| Package weight | 141 g |
Logistics data
| Harmonized System (HS) code | 84733020 |
|---|---|
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 374 mm |
| Master (outer) case length | 365 mm |
| Master (outer) case height | 500 mm |
