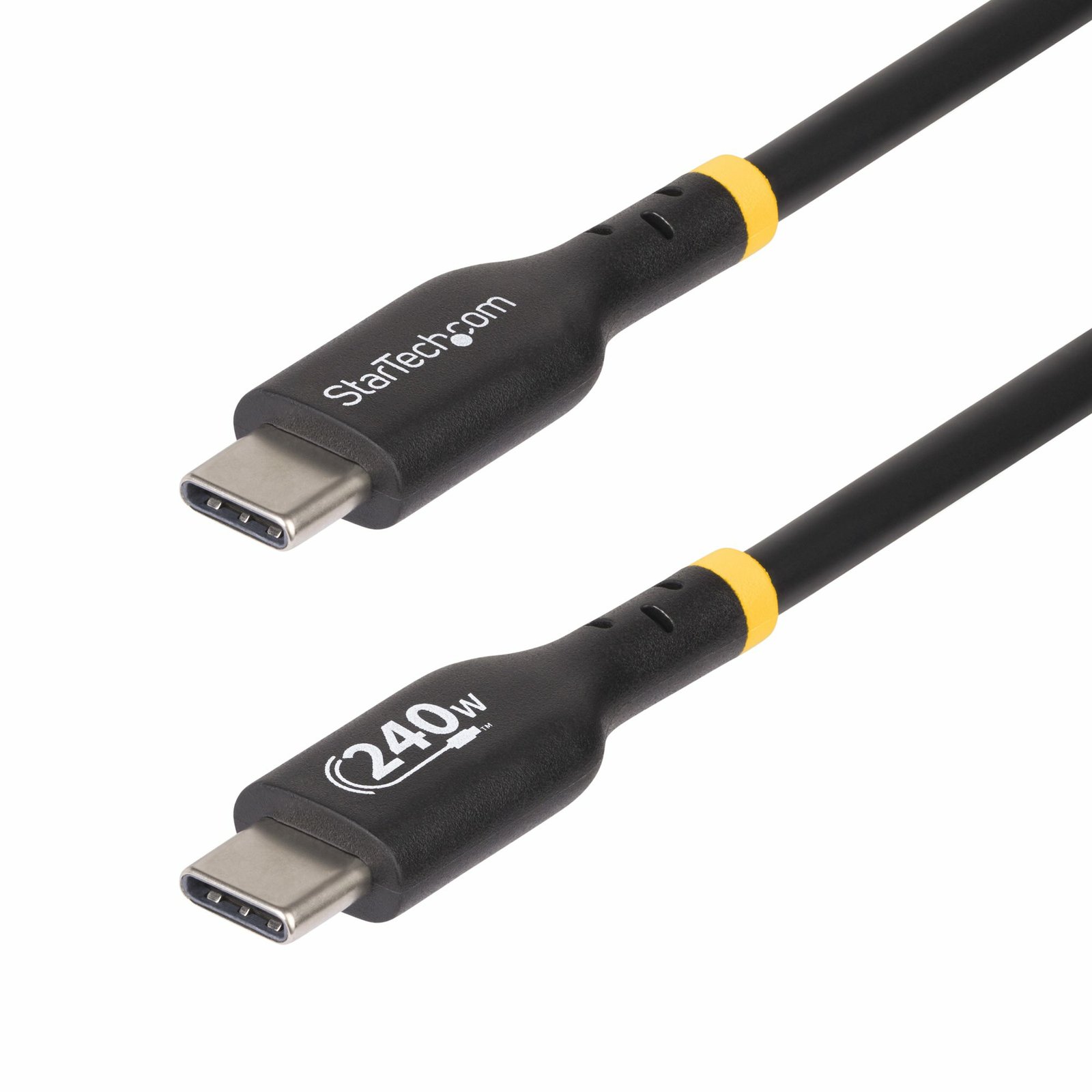

About This Product
Charge high performance USB-C devices at up to 240W Extended Power Range (EPR)
Connect a charger to a USB Power Delivery (PD) 3.1-enabled device, using this USB-C Charging Cable. The USB-C charger cord facilitates up to 240W of USB-C Extended Power Range (EPR) Power Delivery and 5A output for fast charging. It supports USB 2.0 (480Mbps) throughput for general file transfer.
Quality Construction
Designed for frequent use, the USB-C EPR Charging Cable features a rugged TPE outer jacket for increased wear resistance. The durable nickel-plated connectors are rated to operate beyond 10,000 insertion cycles, enhancing its durability and longevity.
Charge Mobile Devices On The Go
Charge a USB-C device with a USB-C wall charger, car charger, or power bank. The 2 meter (6.6 foot) USB Type-C cable is the ideal length for desk and mobile workstations or to reduce clutter when syncing with a USB-C laptop.

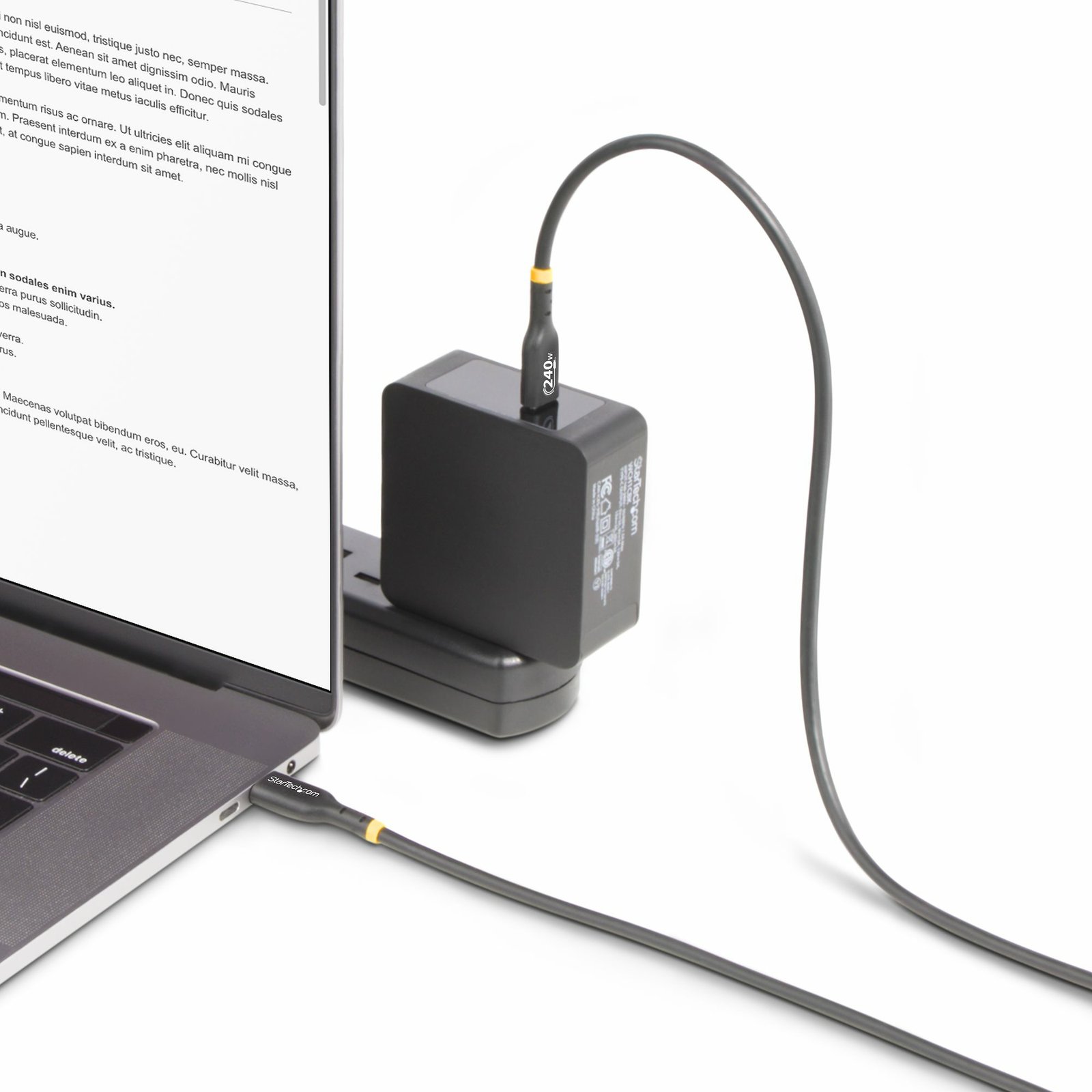

Power a Laptop
With up to 5A of output, the USB-C Charger Cord supports up to 240W of Power Delivery to charge a USB-C laptop, or fast charge a tablet or smartphone. To use, connect the cable from a USB-C laptop to a USB-C wall charger.
Key Features & Highlights
- USB-C EPR CHARGING CABLE: USB Type-C cable supports Power Delivery 3.1 Extended Power Range (EPR); Up to 240W output for charging high-performance USB-C laptops and devices; Connects to a USB-C wall charger, power bank, or external USB-C hub
- USB-IF Certified: The USB C Cable is USB-IF certified with integrated E-marker chip, for consistent Power Delivery output to USB-C hosts and peripherals; When using certified cables, reliable performance and compatibility is guaranteed
- QUALITY CONSTRUCTION: Nickel-plated connectors rated beyond 10,000 insertion cycles; 30AWG wire tested to withstand 120° bends; Braided Aluminum shield for enhanced EMI protection; Durable TPE outer jacket is halogen-free and RoHS compliant
- APPLICATIONS: Compatible with USB-C Power Delivery-enabled devices; Ideal for high-power laptops requiring EPR charging, including 16in MacBook Pro M3 Pro/M3 Max; Supports USB 2.0 for general use, including file transfer and device synchronization
- PERFORMANCE: 240W/5A PD 3.1 EPR, 48V; Backward Compatible w/140W/100W/60W; USB 2.0 Type-C (480Mbps); 2-meter (6.6-foot) cable; Color: Black; O.D.: 0.16in (4.0mm); TPE Jacket w/Braided Aluminum Shield; NOTE: USB-C video (DP Alt Mode) is not supported
Technical Specifications
Features
| USB version | USB 2.0 |
|---|---|
| Connector 1 | USB C |
| Connector 2 | USB C |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| AWG wire size | 30 |
| Connector contacts plating | Nickel |
| Cable jacket material | Thermoplastic elastomer (TPE) |
| Cable shielding | Aluminum mylar foil |
| Maximum data transfer rate | 0.48 Gbit/s |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.1 |
| USB Power Delivery up to | 240 W |
| Product colour | Black |
| USB Type-C DisplayPort Alternate Mode | No |
Power
| Input current (max) | 5 A |
|---|

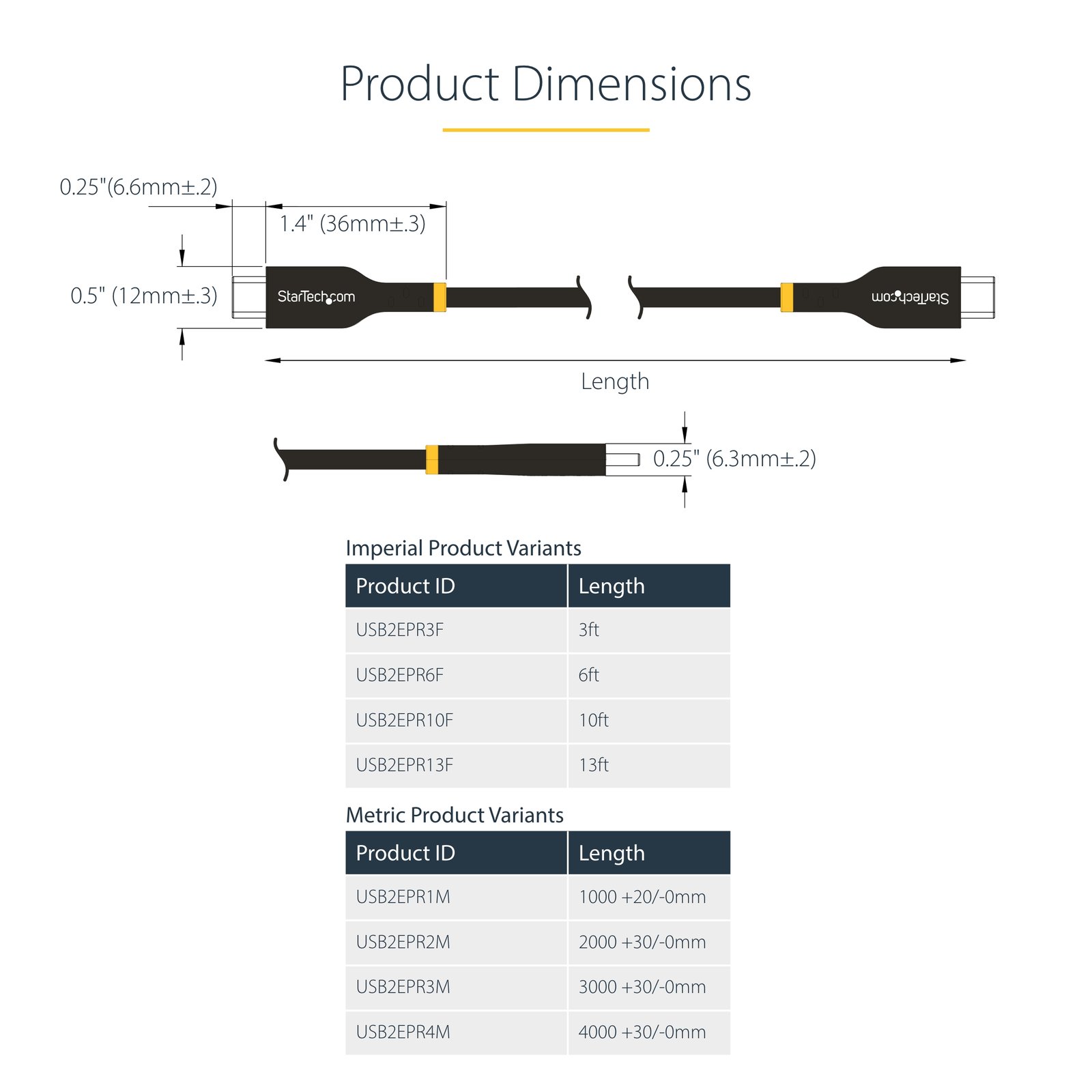

Weight & dimensions
| Cable length | 2 m |
|---|---|
| Cable diameter | 4 mm |
Packaging data
| Package width | 220 mm |
|---|---|
| Package depth | 125 mm |
| Package height | 15 mm |
| Package weight | 75 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Sustainability
| Sustainability compliance | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | -10 – 60 °C |
|---|---|
| Storage temperature (T-T) | -20 – 70 °C |
Certificates
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
|---|
Logistics data
| Products per master (outer) case | 150 pc(s) |
|---|---|
| Master (outer) case width | 500 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 215 mm |
