About This Product
Connect a DVI monitor to a single-mode DisplayPort output from your computer

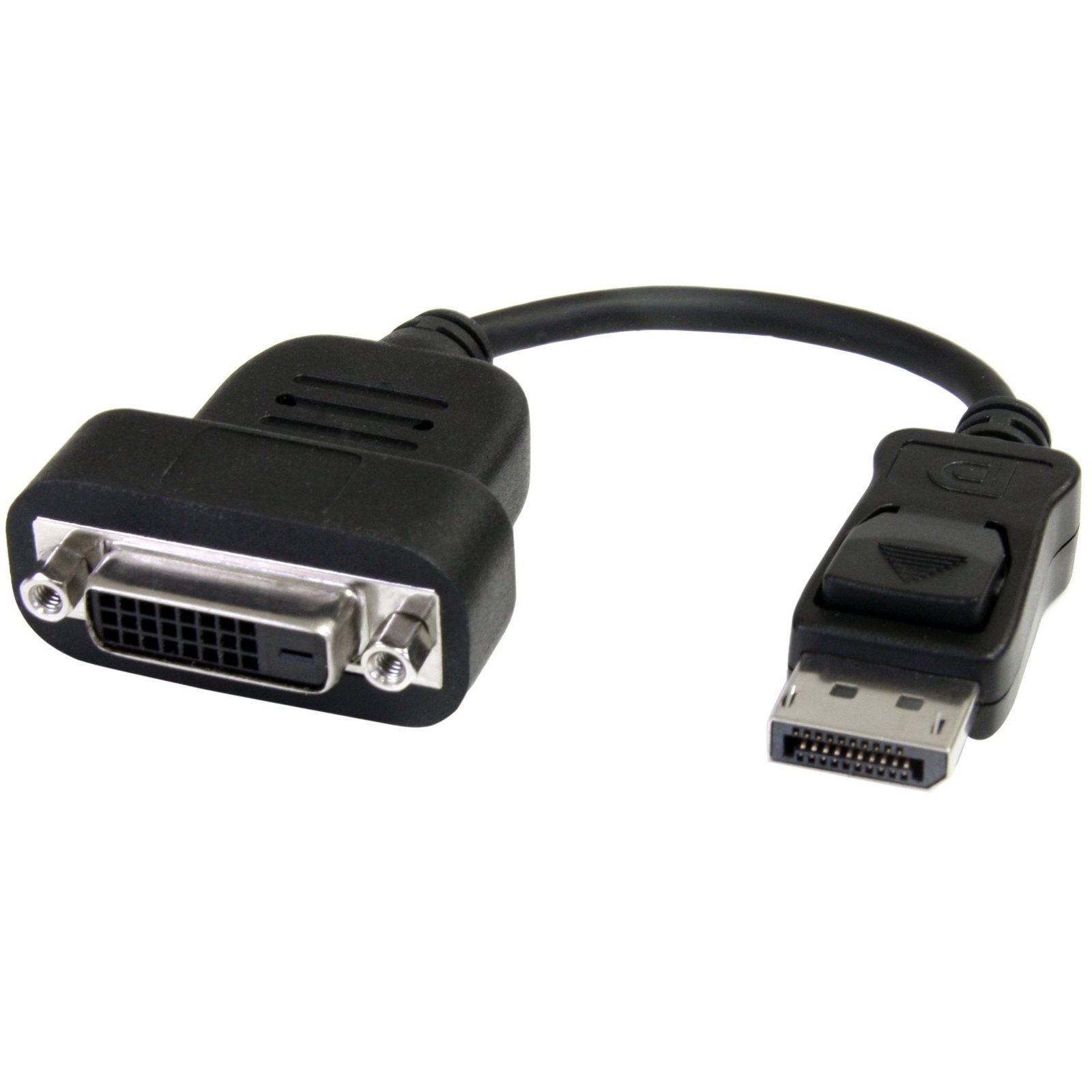

The DP2DVIS DisplayPort to DVI Active Single Link adapter lets you connect your DisplayPort video source (desktop PC, laptop, etc.) to a DVI-D monitor, projector or display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort-capable monitor.
Unlike passive adapters, this DP to DVI converter offers an active conversion for use with any DisplayPort output – ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity). Supporting resolutions up to 1920×1200, this compact device provides a simple solution for converting DisplayPort output for compatibility with existing DVI monitors, televisions or projectors.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Key Features & Highlights
- DISPLAYPORT TO DVI ADAPTER: DisplayPort 1.2 (HBR2) to DVI-D single-link adapter connects a DVI display/projector supporting 1920×1200 & 1080p 60Hz / EDID/DDC pass-through ensures compatibility between source & display / 5.7" (15cm) attached cable
- COMPATIBILITY: Active video converter supports DP or DP++ source incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations / AMD Eyefinity Certified ideal for use with Radeon Pro Series Workstation Graphics
- CONNECT A PRIMARY OR SECONDARY DISPLAY: Connect a DVI monitor or projector or add a second display to your workstation / Compact design /Tested w/ DVI cables up to 25ft / Supports Apple Cinema Display HD

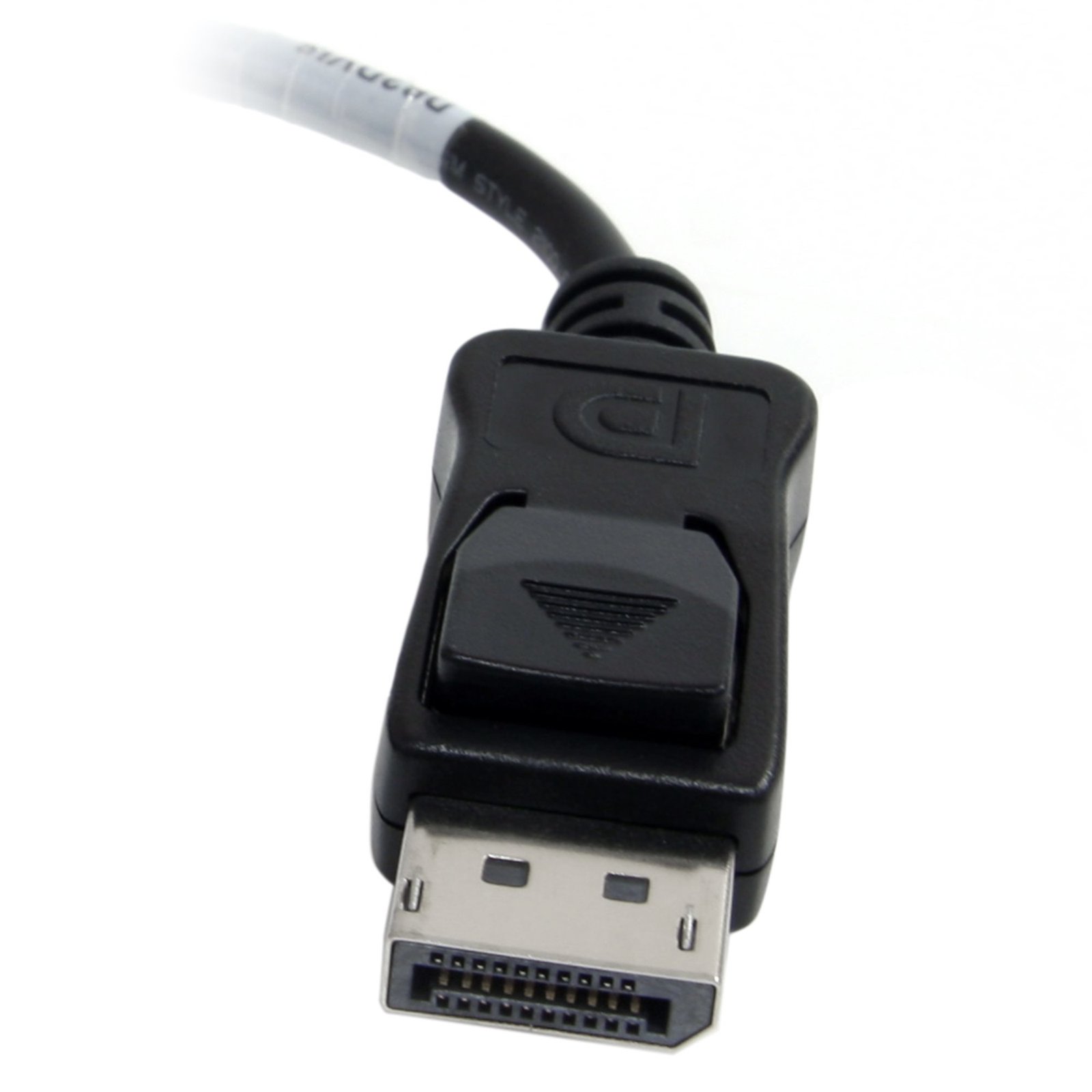

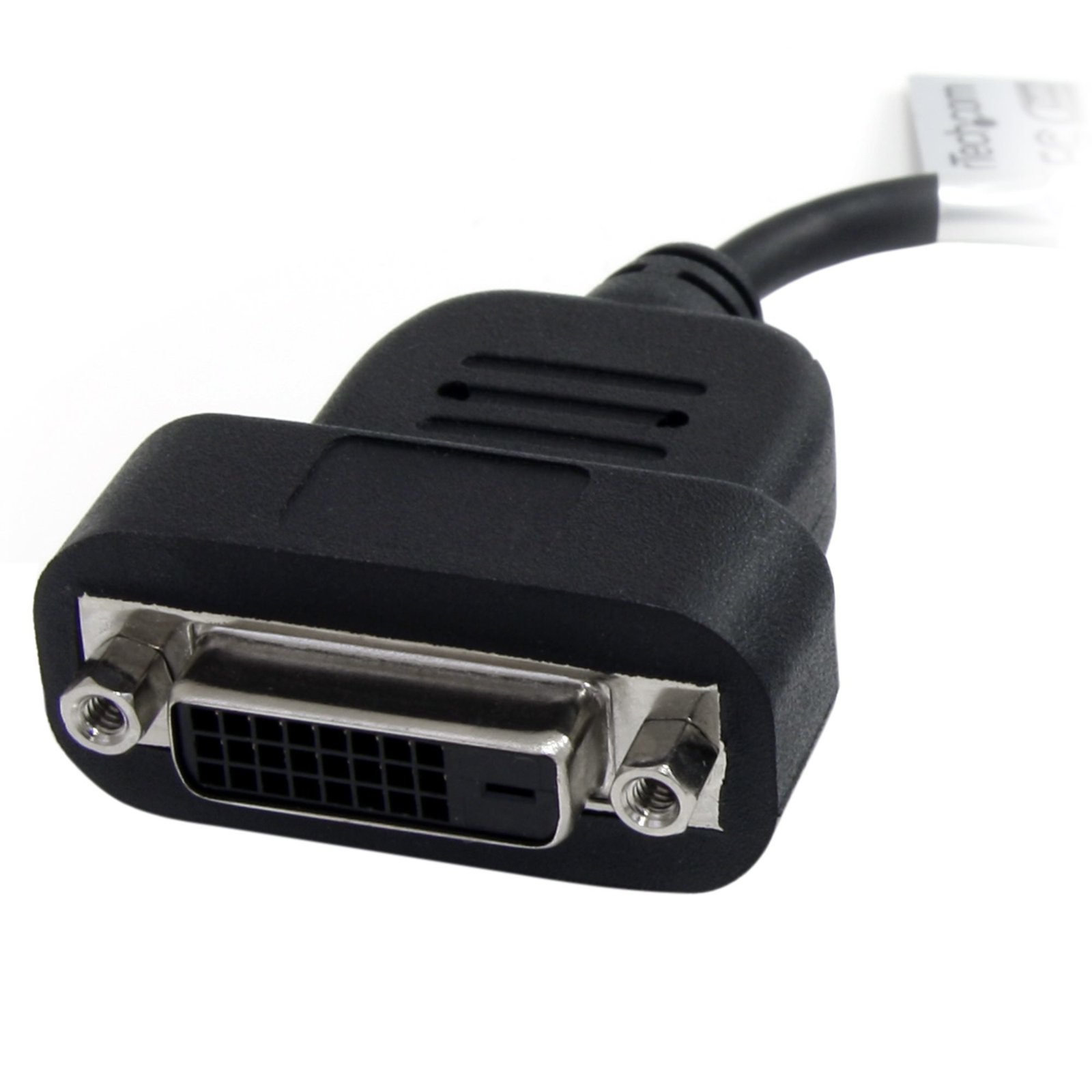

- LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching DP connector ensures a solid host connection / Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection
- EASY TO USE: With no software or drivers required, the DP to DVI adapter converter works with any OS including Windows, Ubuntu and macOS; DisplayPort male to DVI female adapter dongle
Technical Specifications
Features
| Connector 1 form factor | Straight |
|---|---|
| Connector 2 form factor | Straight |
| Cable length | 0.2 m |
| Connector 1 | DisplayPort |
| Connector 2 | DVI-D |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| HDCP | Yes |
| HDCP version | 1.3 |
| DisplayPort version | 1.2 |
| Dual Link DVI | No |
| Product colour | Black |
| Chipset | Parade PS 161 |
| Converter type | Active video converter |
Operational conditions
| Operating temperature (T-T) | 0 – 40 °C |
|---|---|
| Storage temperature (T-T) | 0 – 70 °C |
| Operating relative humidity (H-H) | 80 – 90% |
| Storage relative humidity (H-H) | 80 – 90% |
Weight & dimensions
| Weight | 48 g |
|---|---|
| Width | 44 mm |
| Depth | 200 mm |
| Height | 20 mm |
Packaging data
| Package width | 200 mm |
|---|---|
| Package depth | 220 mm |
| Package height | 20 mm |
| Package weight | 57 g |
Logistics data
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 337 mm |
| Master (outer) case length | 496 mm |
| Master (outer) case height | 226 mm |
| Products per master (outer) case | 90 pc(s) |
