About This Product

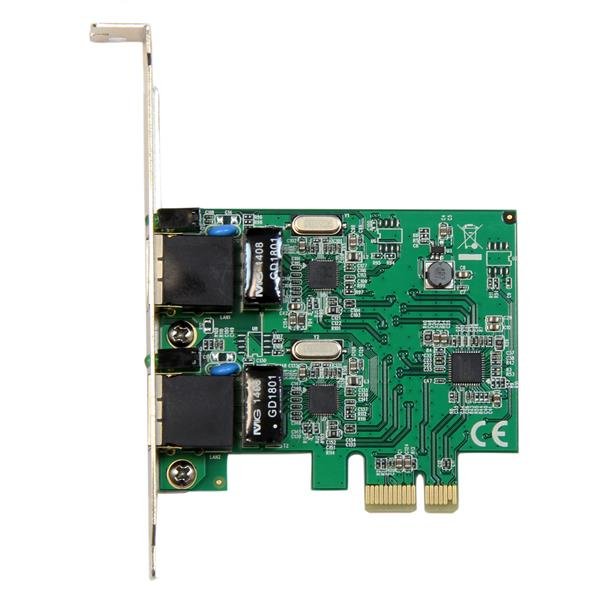

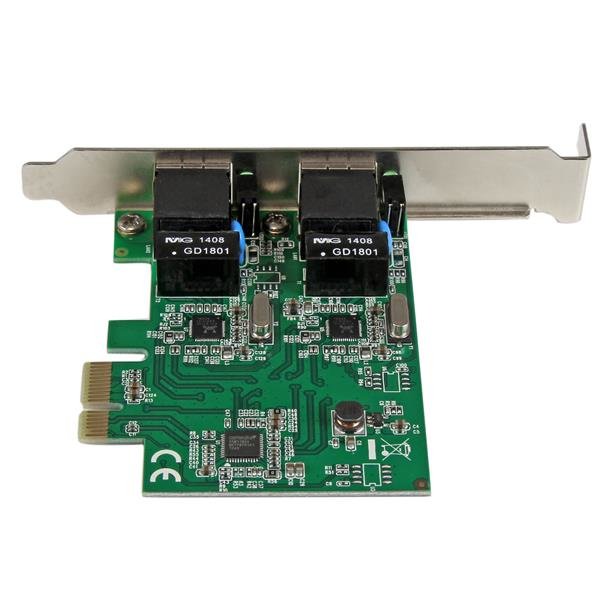

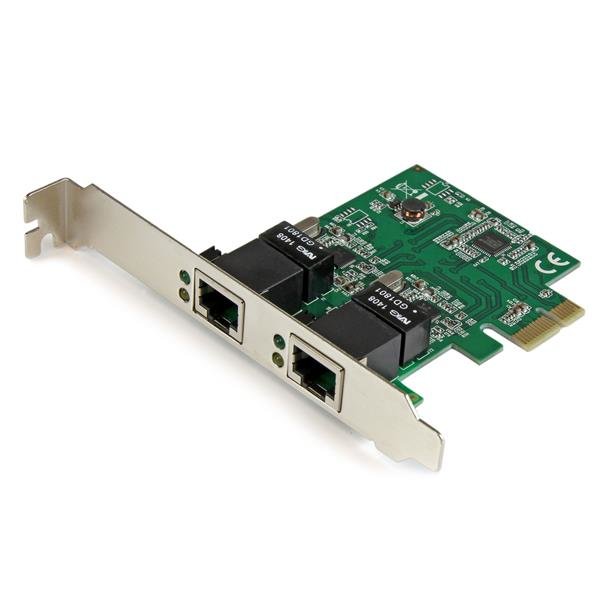

The ST1000SPEXD4 PCI Express Dual-Port Gigabit Network Card lets you add two gigabit Ethernet ports to a client, server or workstation through a single PCIe slot. Each port provides 10/100/1000 Mbps capable Ethernet and is fully compatible with IEEE 802.3/u/ab standards.
Suitable for any standard PCI Express-enabled system, the 2-port Ethernet card supports full-duplex flow control for maximum data transfer speeds of up to 2000 Mbps – an ideal 2-port NIC for setting up dual-homed, or multi-homed host configurations providing added security to corporate networks.
The dual-port server adapter is compliant with the PCIe 2.0 standard and features support for Jumbo Frames and 802.1q VLAN tagging as well as Wake on LAN (WoL). The adapter includes an optional low-profile / half-height bracket that can be used for installation into a standard or small form-factor computer chassis.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Key Features & Highlights
- Two 10/100/1000Mbps compatible RJ-45 Ethernet ports
- Up to 9K Jumbo Frame support
- Compatible with PCI Express Base Specification 2.0 (backward compatible with 1.0a/1.1)
- Supports Microsoft NDIS5 Checksum Offload (IP, TCP, UDP) and Large send Offload
- Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control
- Wake-on-LAN / Remote Wake-up support

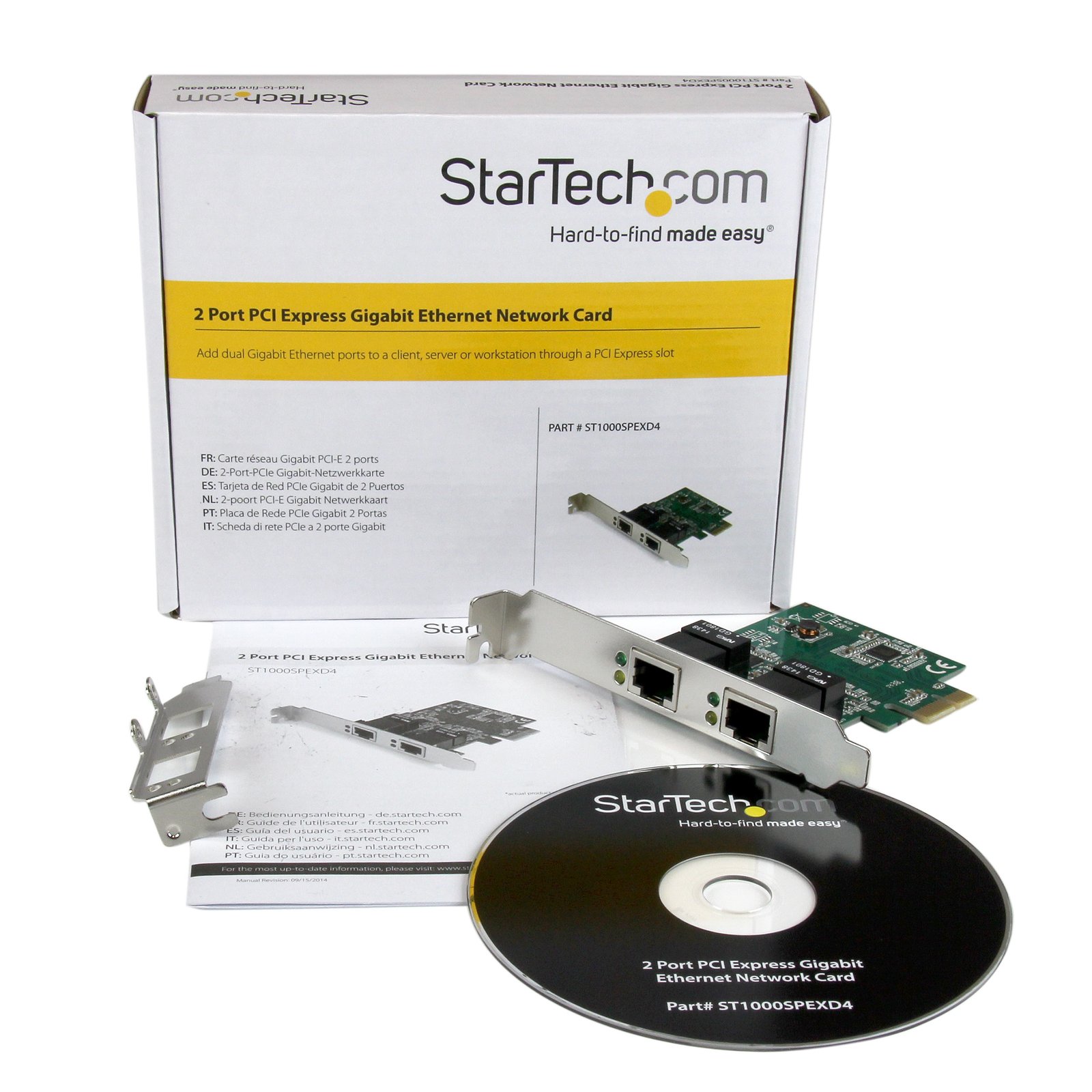

- Configured with standard profile bracket, low profile/half-height bracket included
- Supports Pair Swap / Polarity / Skew Correction
Technical Specifications
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
| PCI version | 2.0 |
Network
| Maximum data transfer rate | 2000 Mbit/s |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000BaseT(X) |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Full duplex | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| VLAN tagging | Yes |
Design
| Internal | Yes |
|---|---|
| Chipset | Realtek – RTL8111E, Asmedia – ASM1182E |
| LED indicators | Activity, Link |
| Certification | CE, FCC |
System requirements
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
|---|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Operational conditions
| Operating temperature (T-T) | 0 – 70 °C |
|---|---|
| Storage temperature (T-T) | 0 – 100 °C |
| Operating relative humidity (H-H) | 10 – 90% |
Weight & dimensions
| Width | 18 mm |
|---|---|
| Depth | 92.6 mm |
| Height | 120 mm |
| Weight | 51 g |
Packaging data
| Drivers included | Yes |
|---|---|
| Low-profile bracket | Yes |
| Package width | 170 mm |
| Package depth | 143 mm |
| Package height | 30 mm |
| Package weight | 142 g |
Packaging content
| Manual | Yes |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
Logistics data
| Harmonized System (HS) code | 85176990 |
|---|
Other features
| Flow control support | Yes |
|---|
