About This Product

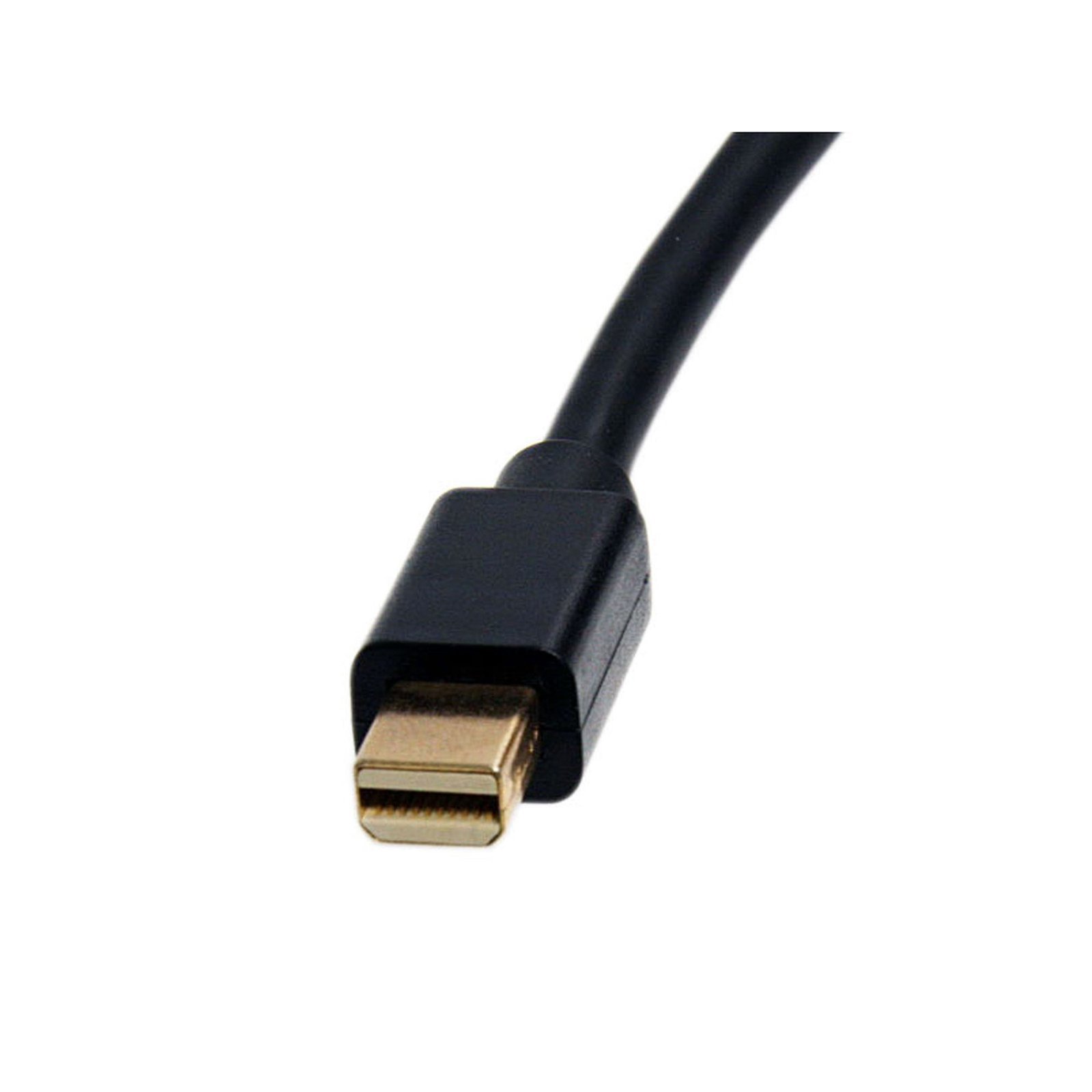

Connect an HDMI® enabled display to a Mini DisplayPort® equipped PC or MAC
This Mini DisplayPort to HDMI® adapter lets you connect your mDP computer to an HDMI, television, projector or monitor. The adapter works with Mini DisplayPort computers like your Ultrabook™ or any of the Microsoft® Surface™ Pro devices with mDP.
Easily connect your Mini DisplayPort computer to an HDMI display
The mDP to HDMI adapter lets you connect your Mini DisplayPort laptop, desktop or tablet to an HDMI display. The adapter is compatible with mDP ports as well as Thunderbolt 1 and Thunderbolt 2 I/O ports, and supports plug-and-play connectivity ensuring a hassle-free setup.
Works with HD TVs
The Mini DisplayPort adapter features a female HDMI connector that supports 7.1 audio, making your mDP computer fully compatible with an HDMI television or projector in your home or around your office.
Designed for maximum portability
The Mini DisplayPort to HDMI converter maximizes portability with a compact, lightweight design, making it the perfect travel accessory to carry with your Surface Pro or Ultrabook, fitting easily into your laptop bag or carrying case. This ultra-portable design makes this adapter perfect for BYOD (Bring Your Own Device) applications at the office.
Crystal-clear picture quality
With support for video resolutions up to 1080p, you’ll be surprised at the picture spectacular picture quality this adapter provides. The adapter harnesses the video capabilities built into your mDP connection to deliver every detail in stunning high-definition.
The MDP2HDMI is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Key Features & Highlights
- PERFORMANCE: mDP 1.2 to HDMI 1.4 adapter connects your mDP host to an HDMI display – 1920×1200/1080p 60Hz Video, 7.1ch Audio, HDCP 1.4, DPCP, 5" (13cm) attached cable – Upgraded version available with 12"/30cm attached cable for extended reach (MDP2HDEC)
- HOST COMPATIBILITY: Passive Mini DP to HDMI display adapter supports mDP++ source including Thunderbolt 1 & 2 MacBooks, MacBook Air & Mac Mini, Microsoft Surface Pro 1-6, desktops (AMD FirePro/NVidia Quadro), laptops, mini itx computers, Intel NUC & docks
- INCREASE PRODUCTIVITY: Mini DisplayPort to HDMI adapter connects an HDMI monitor, TV or projector, or add a second display to your workstation – Compact, small form factor design makes it easy to carry between home office and office
- RELIABLE CONNECTION: MiniDisplayPort to HDMI video converter is designed with gold-plated connectors to ensure enhanced signal quality – Tested with HDMI cables up to 50ft (15m)
- EASY TO USE: With no software or drivers required, the mDP to HDMI adapter dongle works with any OS including macOS, Windows & Ubuntu – Compatible with MiniDP devices like Microsoft Surface PCs or TB1/TB2 MacBooks
Technical Specifications
Features
| Connector 1 form factor | Straight |
|---|---|
| Connector 2 form factor | Straight |
| Cable length | 0.13 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| HDMI version | 1.4 |
| HDCP | Yes |
| HDCP version | 1.4 |
| DisplayPort version | 1.2 |
| DisplayPort Content Protection (DPCP) | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Supported video modes | 1080p |
| Product colour | Black |
| Chipset | NXP Semiconductors PTN3361B |
| Supported audio channels | 7.1 |
| Plug and Play | Yes |
| Converter type | Passive video converter |
Operational conditions
| Operating temperature (T-T) | 0 – 45 °C |
|---|---|
| Storage temperature (T-T) | -10 – 80 °C |
| Operating relative humidity (H-H) | 10 – 85% |
Certificates
| Compliance certificates | CE, RoHS |
|---|---|
| Certification | RoHS, CE, FCC |
Weight & dimensions
| Weight | 20 g |
|---|---|
| Width | 40 mm |
| Depth | 76.2 mm |
| Height | 15 mm |
Packaging data
| Package width | 199 mm |
|---|---|
| Package depth | 107 mm |
| Package height | 20 mm |
| Package weight | 29 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Logistics data
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 508 mm |
| Master (outer) case length | 330 mm |
| Master (outer) case height | 229 mm |
| Products per master (outer) case | 220 pc(s) |
