About This Product
Copper SFP+ Cable | 10 Gbps | Passive DAC | Lifetime Warranty

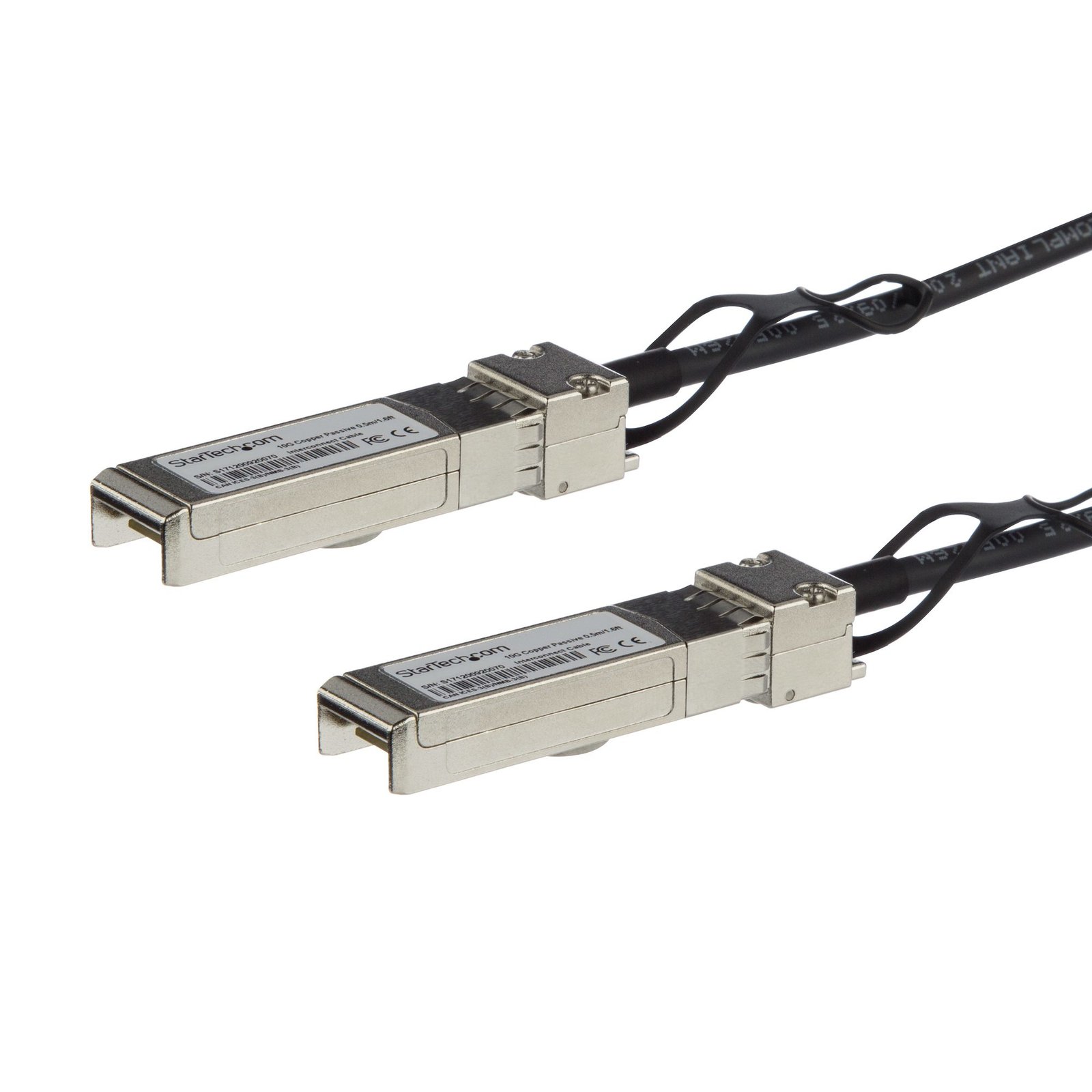

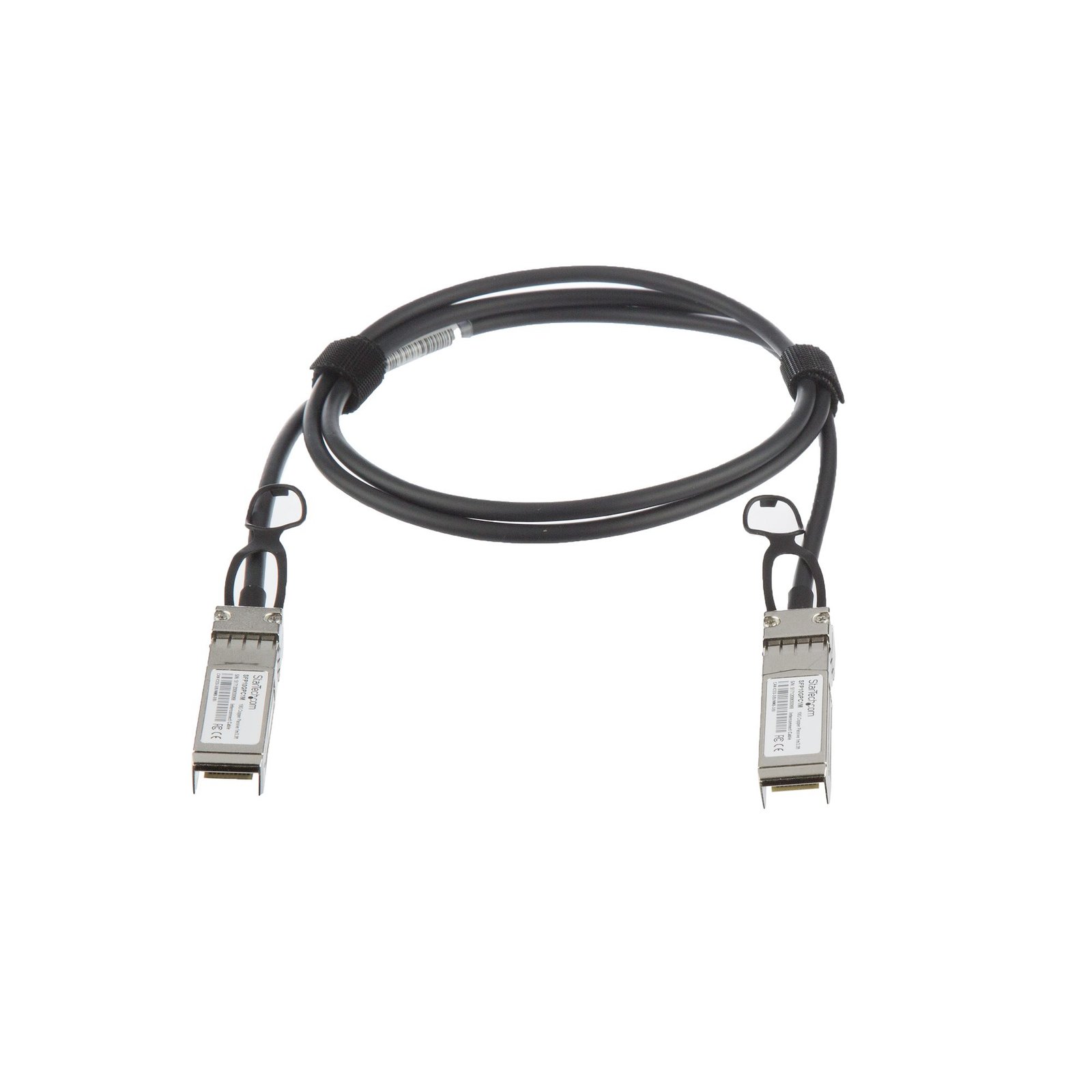

The SFP10GPC1M is an MSA compliant direct-attach copper SFP+ cable that’s designed, programmed and tested to work in 10G network deployments. It delivers dependable 10 GbE connectivity over copper cabling, which is a cost-effective alternative to fiber-optic cable setups.
This passive Twinax cable supports 10 Gigabit Ethernet applications connected through SFP+ (Mini-GBIC) ports. The cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
At 1 meter long and designed for high-speed performance, this copper SFP+ cable is ideal for medium-distance applications such as across-rack network switch or server connections.
StarTech.com SFP Cables
All StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP Cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.
Key Features & Highlights
- MSA UNCODED SFP+ CABLE (DAC): 10G direct attach cable works with MSA compliant switches the accept uncoded transceivers and modules
- TECHNICAL SPECS: 1m (3.3ft) / 10 Gbps / Passive Twinax (Copper) / 2x SFP+ Pluggable Connector / 100 Ohm Impedance / 30 AWG Wire Gauge / PVC Cable Jacket / Hot swappable / MSA Compliant
- DESIGNED FOR SERVER ROOMS: Mini GBIC DAC is a cost-effective copper alternative to fiber cable inside & between racks. Factory termination means high performance & reliability with less maintenance.
- OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24
- WORKS WITH MSA COMPLIANT SWITCHES: Low power 10 GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers
Technical Specifications
Features
| Cable length | 1 m |
|---|---|
| InfiniBand protocol | Yes |
| Connector 1 | SFP+ |
| Connector 2 | SFP+ |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Black |
| Data transfer rate | 10000 Mbit/s |
| Jacket material | Polyvinyl chloride (PVC) |
| Plug and Play | Yes |
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, FCC |
Operational conditions
| Operating temperature (T-T) | 0 – 70 °C |
|---|---|
| Storage temperature (T-T) | -40 – 80 °C |
Weight & dimensions
| Weight | 74 g |
|---|
Packaging data
| Package width | 198 mm |
|---|---|
| Package depth | 133 mm |
| Package height | 18 mm |
| Package weight | 84 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Logistics data
| Master (outer) case width | 255 mm |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Master (outer) case length | 344 mm |
| Master (outer) case height | 295 mm |
| Products per master (outer) case | 10 pc(s) |
