About This Product
10 Gbps | Copper | RJ45 | 30 m (98.4 ft) | Lifetime Warranty

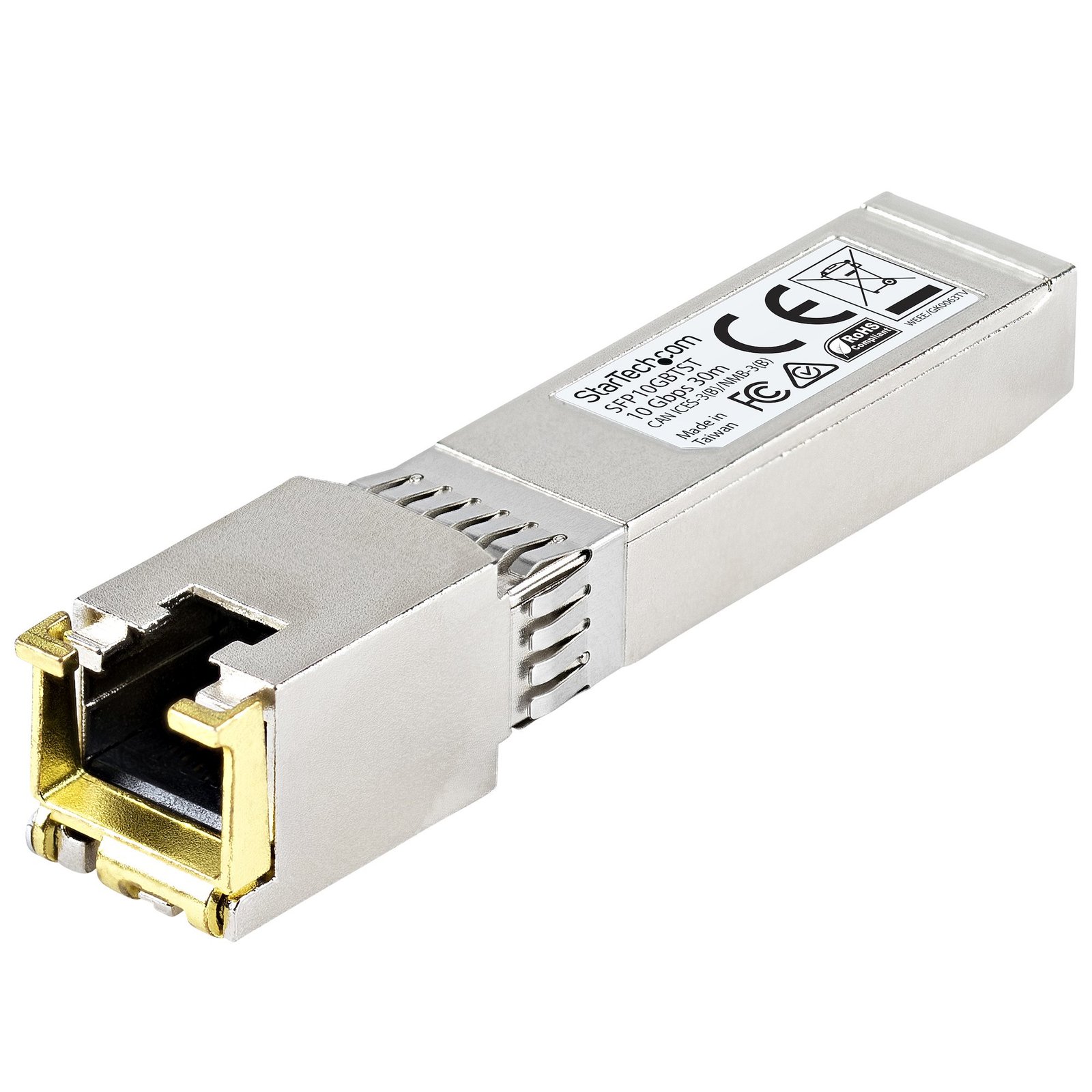

The SFP10GBTST is an MSA compliant copper SFP transceiver that’s designed, programmed and tested to work with 10GBASE-T compatible switchess and routers. The SFP+ transceiver module supports a maximum distance of up to 30 m (98.4 ft.) and delivers dependable 10 GbE connectivity over copper cabling, which is a cost-effective alternative to fiber-optic cable setups.
Technical Specifications:
• Maximum Data Transfer Rate: 10 Gbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 30 m (98.4 ft.)
• MTBF: 4,598,430 hours DDM: No >
This SFP+ copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
Key Features & Highlights
- 100% MSA UNCODED SFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver reliable 10GbE connectivity
- TESTED FOR COMPATIBILITY: Hot-swappable in MSA Compliant routers and switches
- WORKS WITH MSA COMPLIANT SWITCHES: Works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance
Technical Specifications
Performance
| SFP transceiver type | Copper |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Maximum transfer distance | 30 m |
| Networking standards | IEEE 802.3an |
| Cabling technology | 10GBASE-T |
| Ethernet LAN (RJ-45) ports | 1 |
| Duplex system | Full |
| Auto MDI/MDI-X | Yes |
| Digital Diagnostics Monitoring (DDM) | No |
Features
| Product colour | Silver |
|---|---|
| Housing material | Zinc steel |
| Hot-Plug support | Yes |
| Brand compatibility | MSA Compliant |
Power
| Power consumption (typical) | 2.3 W |
|---|
Certificates
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, FCC |
Operational conditions
| Operating temperature (T-T) | 0 – 70 °C |
|---|---|
| Storage temperature (T-T) | -40 – 85 °C |
| Operating relative humidity (H-H) | 5 – 95% |
Weight & dimensions
| Width | 13.9 mm |
|---|---|
| Depth | 70 mm |
| Height | 12.6 mm |
| Weight | 28 g |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Packaging data
| Package width | 119 mm |
|---|---|
| Package depth | 76 mm |
| Package height | 34 mm |
| Package weight | 60 g |
Logistics data
| Master (outer) case width | 342 mm |
|---|---|
| Master (outer) case length | 638 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 290 mm |
| Products per master (outer) case | 150 pc(s) |
| Country of origin | China |
