StarTech.com USB C to DisplayPort Adapter – 8K/4K 60Hz USB-C to DisplayPort 1.4 Adapter Dongle – USB Type-C to DP Monitor Video Converter – Works w/Thunderbolt 3 – w/12″ Long Attached Cable
Availability: 30 in stock
₹1,985.35
About This Product
Extended Cable | DP 1.4 | HBR3 | Thunderbolt 3 Compatible

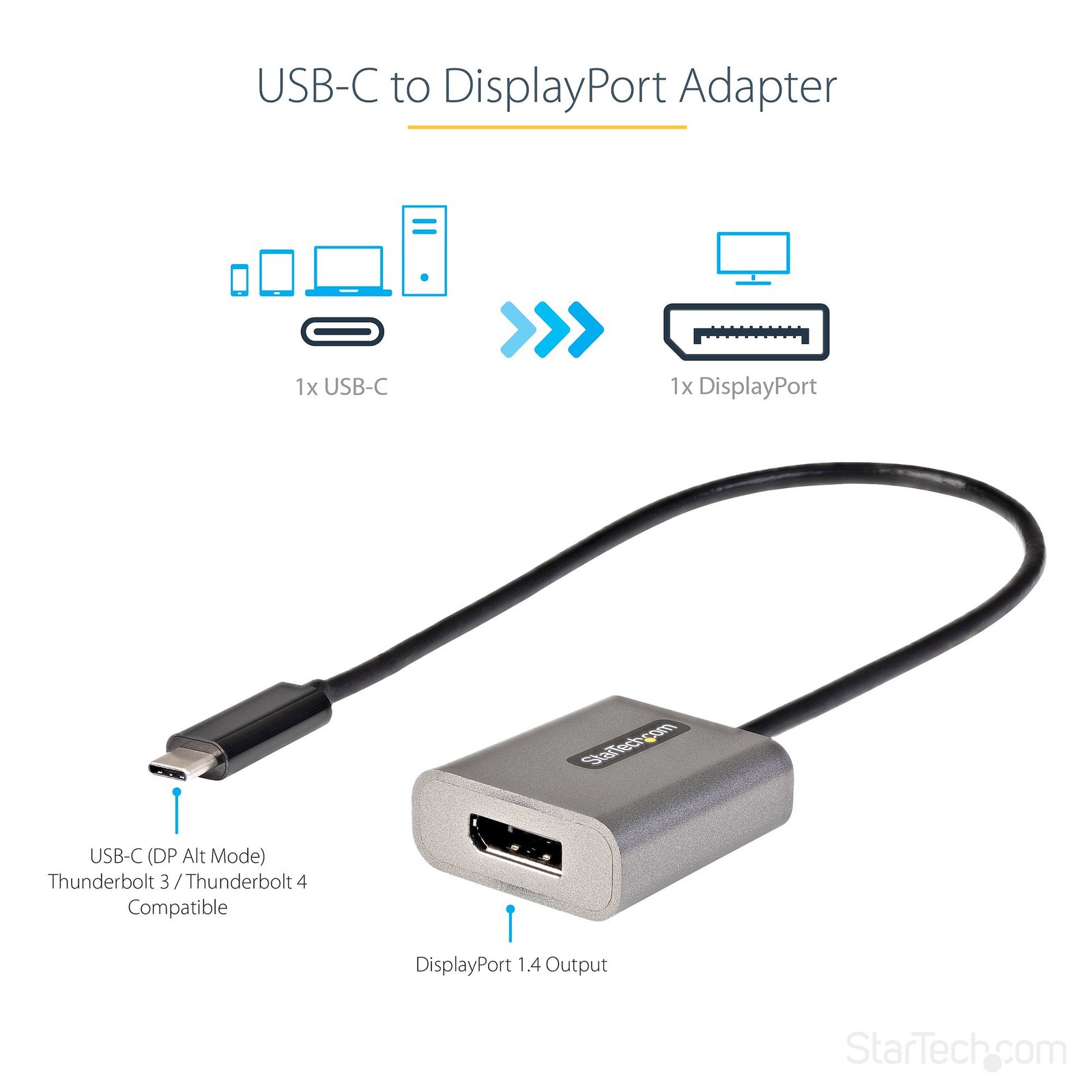

This USB-C™ to DisplayPort™ adapter enables you to output DP video and audio from the USB Type-C™ port on your laptop, tablet, smartphone or other USB C device.

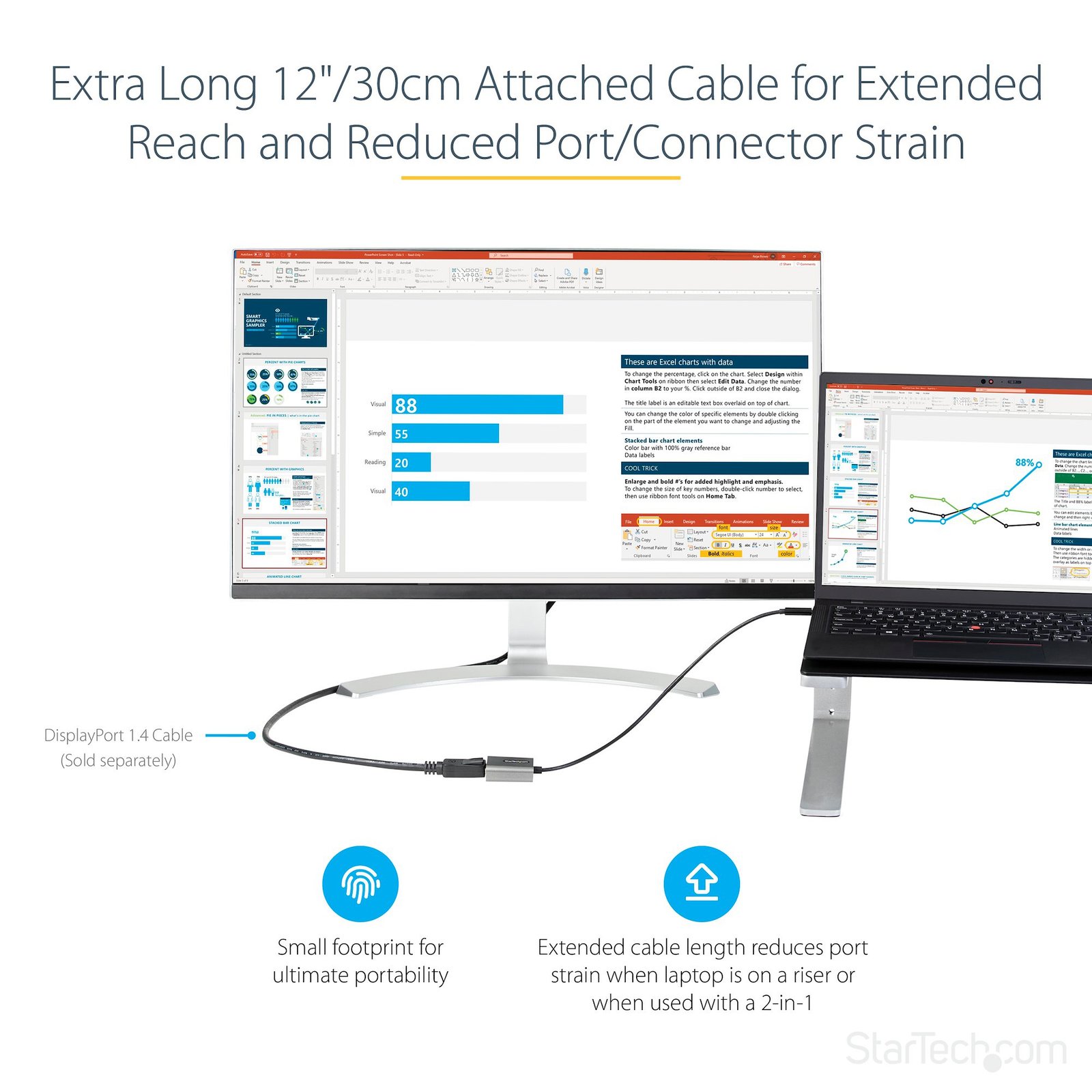

Extended Cable Length

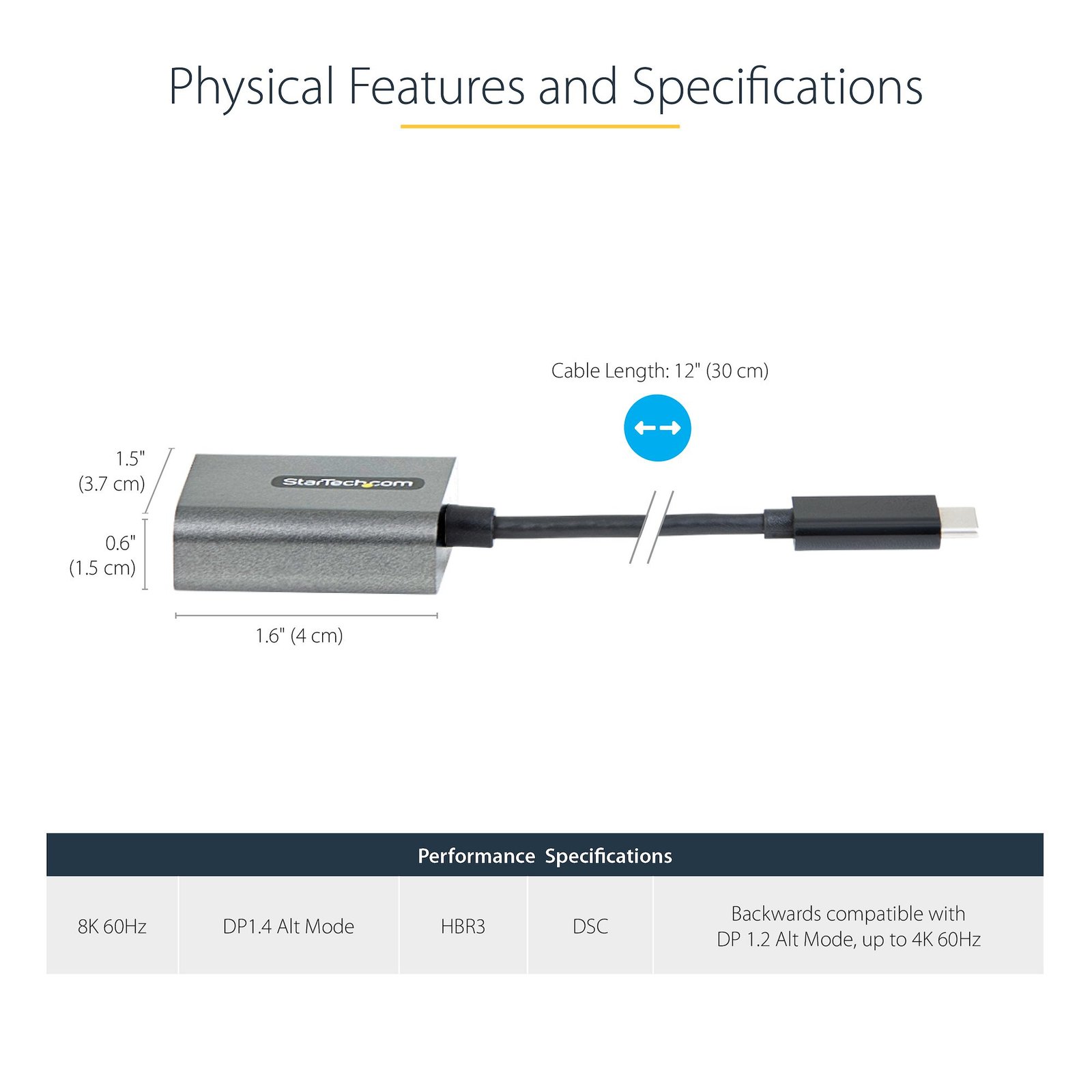

This USB C adapter is equipped with an extra-long 12″ (30cm) attached cable, providing an extended reach to reduce port and connector strain on 2-in-1 devices or laptops on risers stands.
Ultra HD 4K & 8K Resolution
The adapter lets you harness the video capabilities that are built into your computer’s USB Type-C connection, to deliver the astonishing quality of UHD to your 4K 60Hz display. This makes it easier for you to multitask while working on the most resource-demanding applications imaginable.
With this adapter, you can also achieve an output resolution of up to 7680×4320 at 60Hz (with a laptop supporting DP 1.4 and DSC) or 7680×4320 at 30Hz (without DSC), which is perfect for performing high-resolution tasks such as viewing 8K video. Plus, the DP 1.4 adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other workspace applications while future-proofing for 8K implementation.

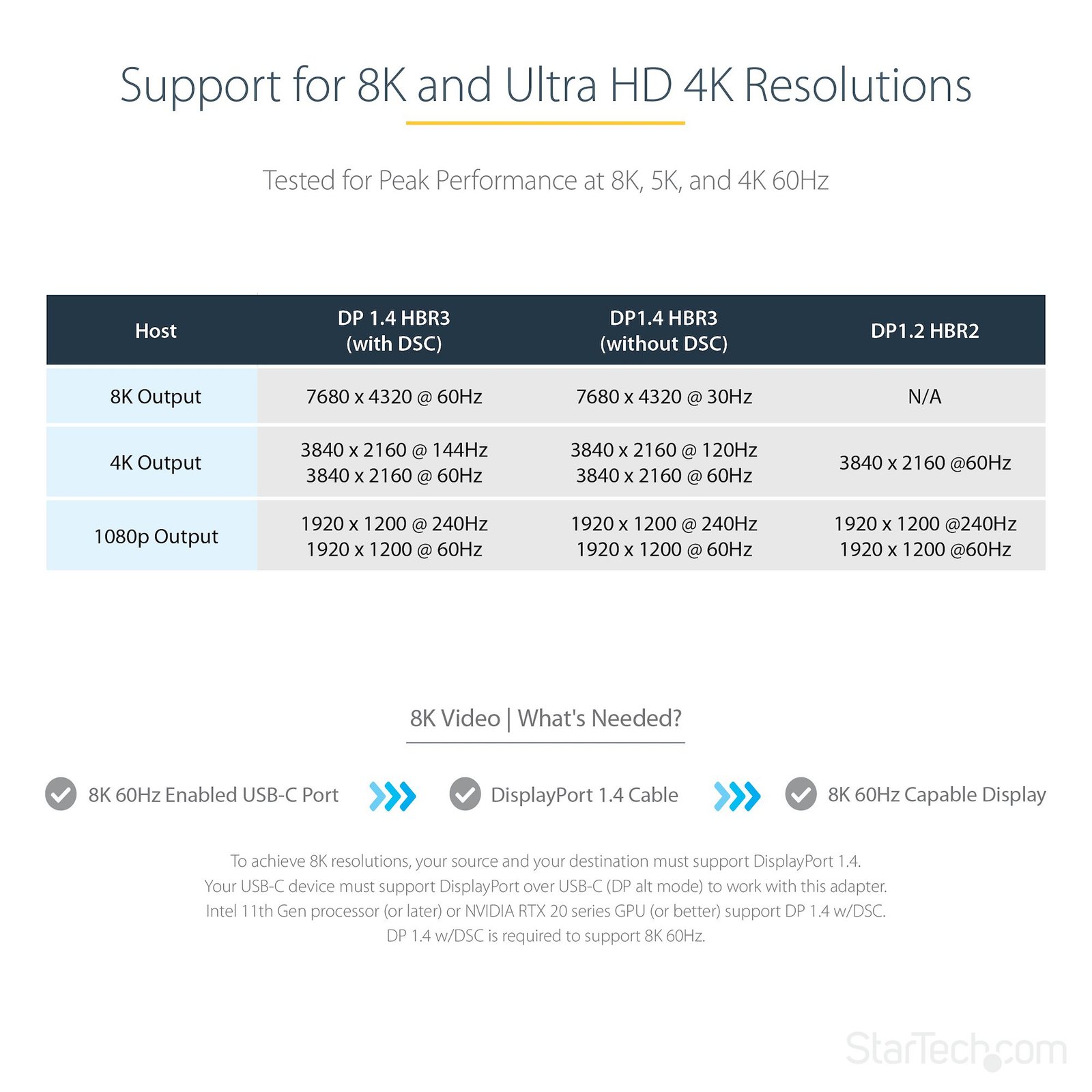

Host
DP 1.4 HBR3 (with DSC)
DP 1.4 HBR3 (without DSC)
DP 1.2 HBR2
8K Output
7680×4320 @ 60Hz
7680×4320 @ 30Hz
N/A
4K Output
3840×2160 @ 60Hz
3840×2160 @ 60Hz
3480×2160 @ 60Hz
1080p Output
1920×1200 @ 60Hz
1920×1200 @ 60Hz
1920×1200 @ 60Hz
Ultimate Portability
This USB Type-C video adapter is highly portable with a small footprint and lightweight design that’s easy to tuck into your laptop bag while commuting between your home, office or traveling for business.
The CDP2DPEC is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Notes:
• To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4
• Your USB-C device must support DisplayPort over USB-C (DP alt mode) to work with this adapter
Key Features & Highlights
- HIGH PERFORMANCE: USB C to DisplayPort 1.4 adapter connects a single DP display supporting up to 8K 60Hz with DSC (8K 30Hz without DSC) & 4K 60Hz UHD (3840×2160) / DP Alt Mode / HBR3 / 32.4Gbps / 2ch Audio / HDCP 2.2/1.4 / Backward compatible w/ 1080p
- EXTRA LONG CABLE: USB-C to DisplayPort display adapter with 12" (30cm) attached cable for extended reach to reduce port/connector strain on 2-in-1 devices like Surface Pro 7, iPad Pro & laptops on risers stands / Compact, portable design

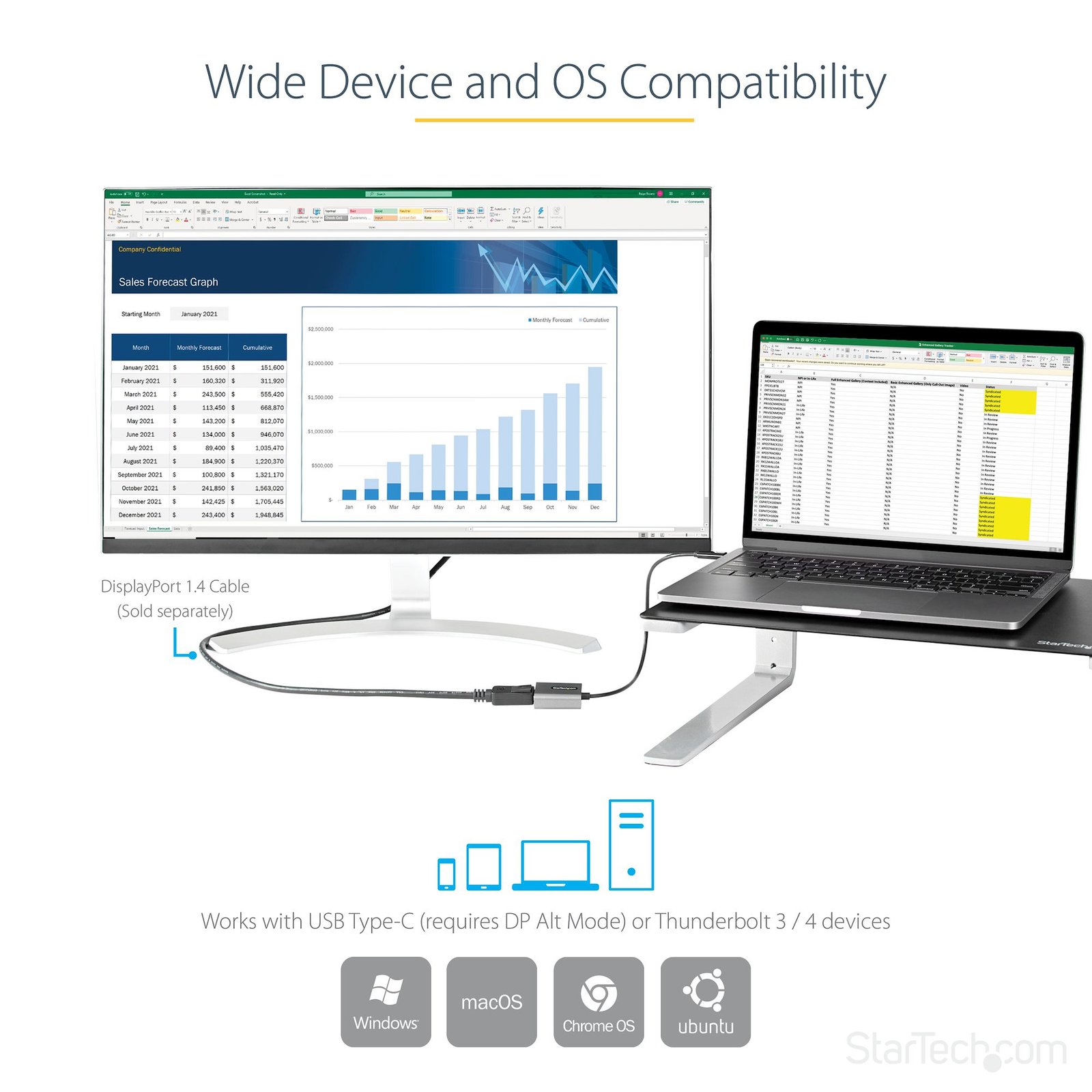

- DEVICE COMPATIBILITY: Works w/ Dell XPS, Precision, Latitude, Lenovo ThinkPad X1 Carbon, Extreme, Surface Laptop 3, Pro 7, MacBook Pro/Air (Intel Processor & M1 Chip), HP EliteBook, Chromebook / Requires Intel 11th Gen w/DSC (or later) for DP 1.4 8K 60Hz
- DISPLAY COMPATIBILITY: USBC to DP external video adapter/converter has been tested for peak performance at 8K/4K 60Hz on a range of DP monitors incl. brands like Dell UltraSharp, Samsung, Asus ProArt, Acer & LG / Supports ultrawide displays (3440×1440)
- EASY TO USE: USB-C to DP adapter dongle supports driverless setup and is OS independent; Works w/any USB Type-C (DisplayPort over USB-C) or Thunderbolt 3 (TB3) device / Recommend using a StarTech.com DisplayPort 1.4 cable (DP14MM2M) to support DSC 8K 60Hz
📄 Product Documentation: Download Official Manual / Spec Sheet (PDF)
Technical Specifications
Performance
| USB connector type | USB Type-C |
|---|---|
| USB connector gender | Male |
| USB connector form factor | Straight |
| DVI output | No |
| HDMI output | No |
| DisplayPort output | Yes |
| Number of displays supported | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Audio output channels | 2.0 channels |
| Chipset | VL103 |
| Data transfer rate (max) | 32.4 Gbit/s |
Design
| Product colour | Black, Grey |
|---|---|
| Housing material | Plastic |
| Integrated USB cable | Yes |
Weight & dimensions
| Width | 38 mm |
|---|---|
| Depth | 390 mm |
| Height | 15 mm |
| Weight | 26 g |
| USB cable length | 0.3 m |
Operational conditions
| Operating temperature (T-T) | 0 – 45 °C |
|---|---|
| Storage temperature (T-T) | -10 – 70 °C |
| Operating relative humidity (H-H) | 10 – 85% |
Packaging data
| Package width | 125 mm |
|---|---|
| Package depth | 173 mm |
| Package height | 24 mm |
| Package weight | 32 g |
Technical details
| Compliance certificates | CE, RoHS |
|---|
Logistics data
| Products per master (outer) case | 200 pc(s) |
|---|---|
| Master (outer) case width | 330 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 220 mm |
| Harmonized System (HS) code | 84733020 |
| Manufacturer Part Number | CDP2DPEC |
|---|---|
| Brand | STARTECH.COM |
| UPC / EAN | 0065030888851 |
| SKU | GD1105285 |
| Category | USB Graphics Adapters |
| Subcategory | Tablets |
| USB connector type | USB Type-C |
| USB connector gender | Male |
| USB connector form factor | Straight |
| DVI output | No |
| HDMI output | No |
| DisplayPort output | Yes |
| Number of displays supported | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 pixels |
| Refresh rate at maximum resolution | 60 Hz |
| Audio output channels | 2.0 channels |
| Chipset | VL103 |
| Data transfer rate (max) | 32.4 Gbit/s |
| Product colour | Black, Grey |
| Housing material | Plastic |
| Integrated USB cable | Yes |
| Width | 38 mm |
| Depth | 390 mm |
| Height | 15 mm |
| Weight | 26 g |
| USB cable length | 0.3 m |
| Operating temperature (T-T) | 0 – 45 °C |
| Storage temperature (T-T) | -10 – 70 °C |
| Operating relative humidity (H-H) | 10 – 85% |
| Package width | 125 mm |
| Package depth | 173 mm |
| Package height | 24 mm |
| Package weight | 32 g |
| Compliance certificates | CE, RoHS |
| Products per master (outer) case | 200 pc(s) |
| Master (outer) case width | 330 mm |
| Master (outer) case length | 500 mm |
| Master (outer) case height | 220 mm |
| Harmonized System (HS) code | 84733020 |
