About This Product

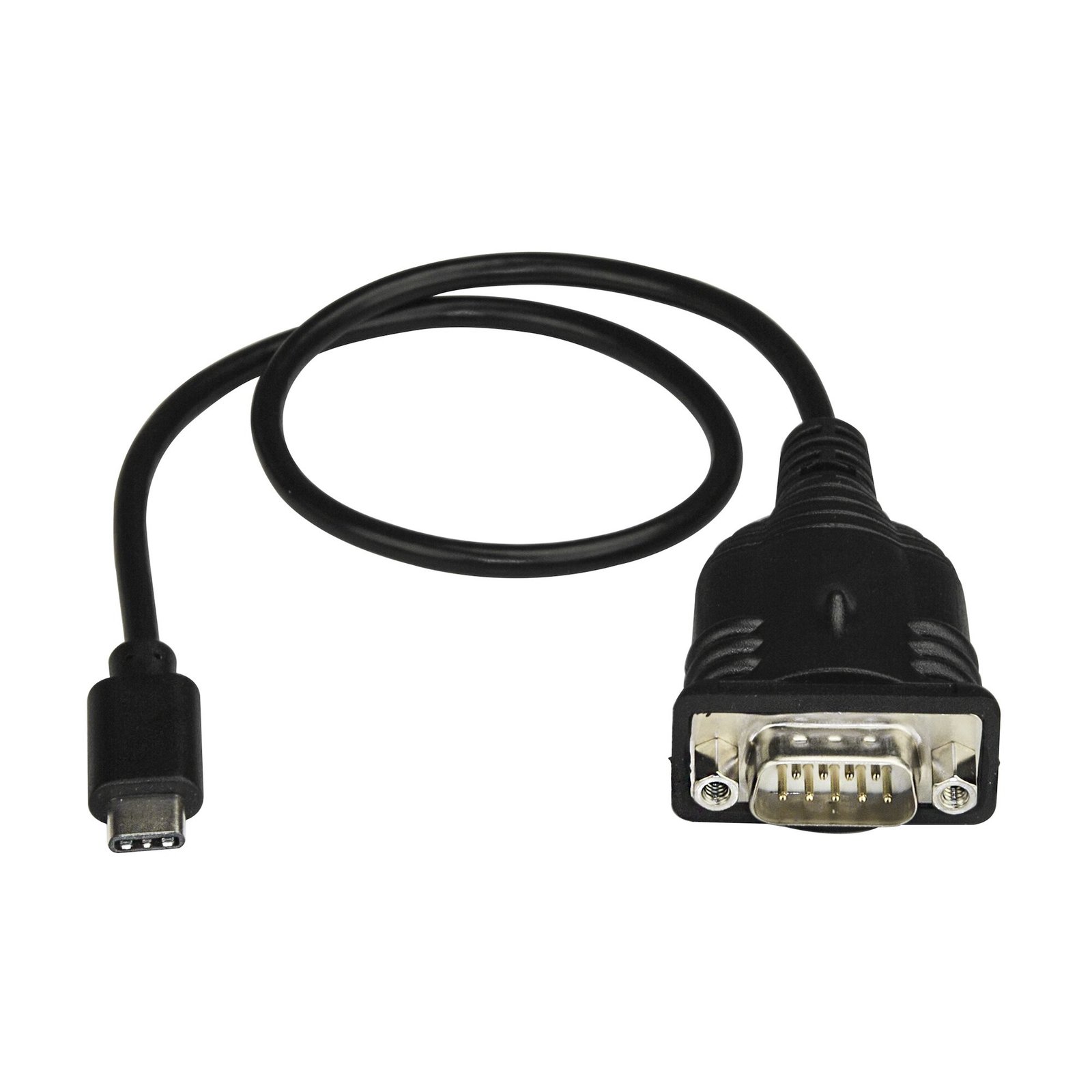

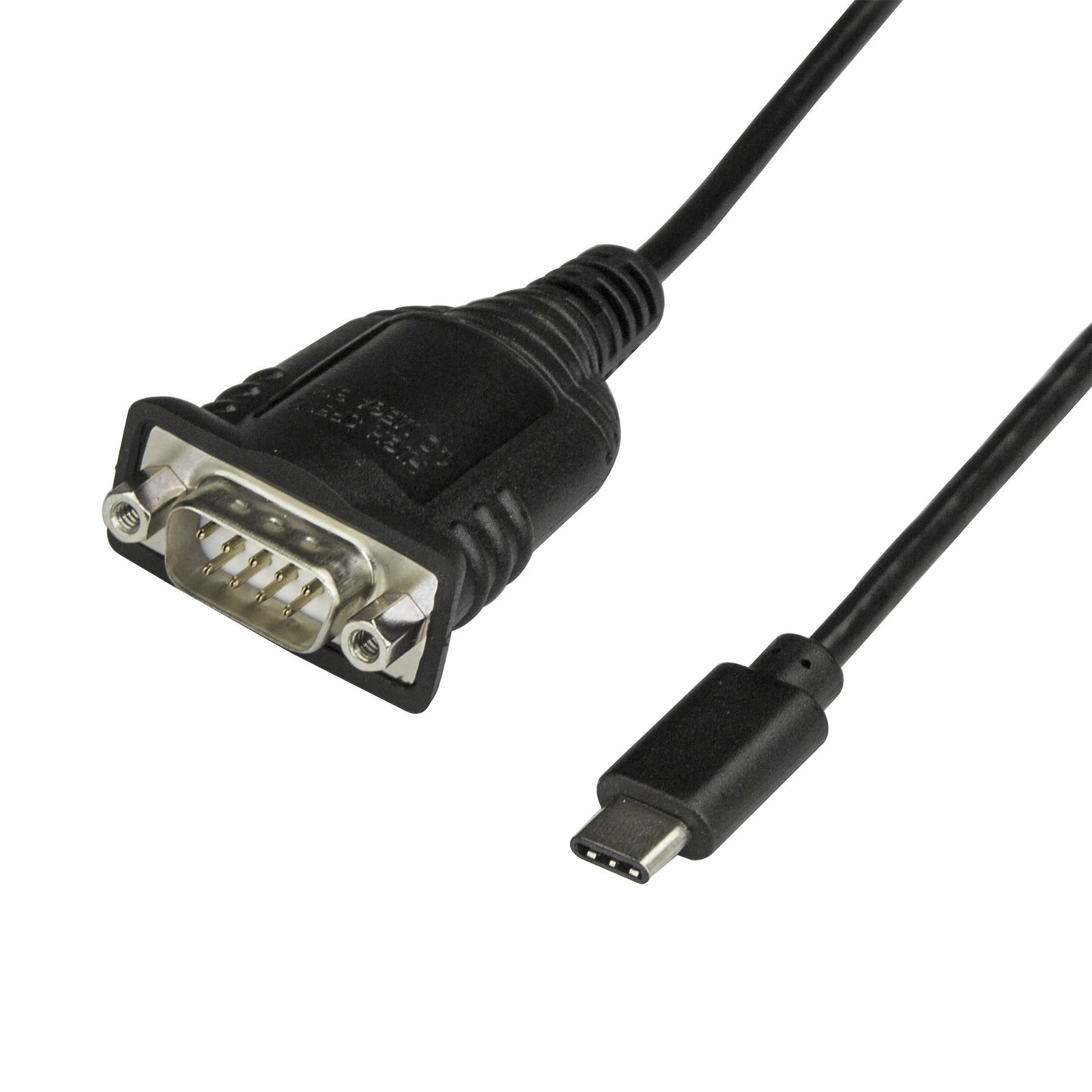

Connect an RS232 (DB9) peripheral to your USB-C device
This USB-C™ to serial adapter lets you connect your USB-C devices to your legacy serial equipment. It converts a USB-C port on your laptop or computer into a RS232 DB9 serial port, giving you a cost-saving way to connect to serial devices such as point-of-sale terminals, serial modems, industrial equipment, and a wide variety of other RS232 peripherals.
Connect with ease
The RS232 adapter cable is compatible with Windows®, macOS and Linux® operating systems, which makes it easy to integrate into mixed environments.
Ready for mobile or desktop applications
The USB-C to serial adapter is USB powered, so you don’t need an additional external power supply. It’s a compact solution that’s easy to bring along with your laptop, when you’re on the go.
The ICUSB232C is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Key Features & Highlights
- USB-C TO SERIAL: Interface with Serial RS-232 (DB9) equipment using this black USB Type-C Serial adapter converter cable; Male DB9 connector features screw-lock nuts; Cable length of 16" [40 cm]
- TECH SPECS: 921.6 Kbps baud / 512 byte FIFO / Data bits of 5/6/7/8 and stop bits 1/1.5/2 / Parity Modes of None, Xon/Xoff, RTS/CTS, DTR/DSR / Flow control options Odd/Even/Mark/Space/None
- APPLICATIONS: Using your laptop's USB-C port, control serial equipment such as PLCs, scanners, sensors, oscilloscopes, medical, scales or receipt printers; Use in manufacturing, scientific, automation
- HOST COMPATIBILITY: Driverless setup for easy install; Tested on major operating systems, including Windows 7 and up, macOS 10.11 and up, Linux 2.6 and up; USB bus powered
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This RS232 Serial Adapter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
Technical Specifications
Features
| Product colour | Black |
|---|---|
| Cable length | 0.4 m |
| Connector 1 | USB C |
| Connector 2 | DB-9 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Chipset | Prolific – PL2303RA |
| Mac operating systems supported | Mac OS X 13.0 Ventura |
Packaging data
| Quantity per pack | 1 pc(s) |
|---|---|
| Package width | 199 mm |
| Package depth | 137 mm |
| Package height | 21 mm |
| Package weight | 52 g |
Certificates
| Compliance certificates | CE, RoHS |
|---|
Operational conditions
| Operating temperature (T-T) | 0 – 60 °C |
|---|---|
| Storage temperature (T-T) | -20 – 80 °C |
| Operating relative humidity (H-H) | 0 – 65% |
Weight & dimensions
| Weight | 36 g |
|---|
Logistics data
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 370 mm |
| Master (outer) case length | 410 mm |
| Master (outer) case height | 280 mm |
| Products per master (outer) case | 200 pc(s) |
