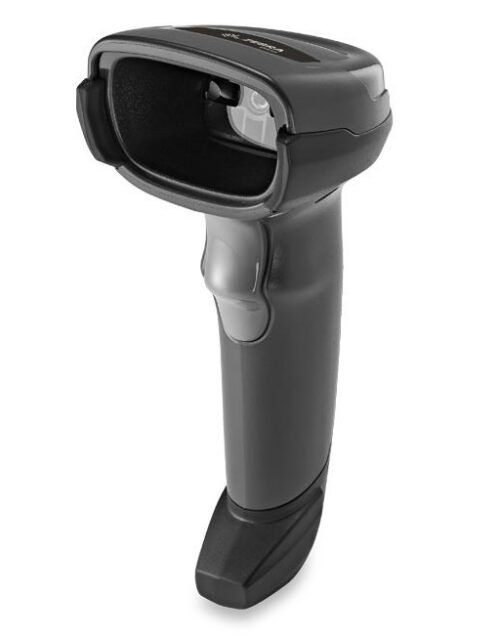

Zebra DS4608-SR Handheld bar code reader 1D/2D LED Black

Availability: 932 in stock

- +

14,412.05

Accepted Payment Methods

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

About This Product

Versatility That Does More for Your Whole Store

Shrink lines and deliver an in-store experience that keeps customers coming back again and again. The feature-rich DS4600 Series for Retail helps associates scan items of all sizes, read barcodes in nearly any condition and handle transactions of all kinds. Bulky items in a shopping cart, a customer’s driver’s license at the returns desk, a mobile coupon at checkout, tiny barcodes in the jewelry department, data from a travel document, the DS4600 Series does more for your whole store.

Capture Barcodes Up to 28 Inches Away

Bulky and heavy items won’t slow down your checkout lines. With an industry-leading 28-inch scan range on UPC codes and bright aim dot, it’s easy for checkout associates to scan items in a shopper’s cart without leaving the cashwrap.

One Scanner for Your Whole Store

No matter what kind of data you need to capture, the DS4600 Series is ready for the job. Scan barcodes on a mobile phone. Capture tiny barcodes on jewelry tags, or DotCode and dotted DataMatrix barcodes through cellophane. Read wide barcodes on packages. Collect data from IDs. Parse driver’s license information. And much more.

Fastest Scanning Performance in Its Class

Empower every associate to scan like your best associate. An 800 MHz microprocessor, high-resolution megapixel sensor and Zebra’s exclusive PRZM Intelligent Imaging technology provide instant barcode capture on even the most challenging barcodes.

Do More Throughout Your Whole Store

With the DS4600 Series for Retail, you get a wide range of productivity-enhancing innovation to streamline more transactions and tasks throughout the store. Intelligent Document Capture not only captures images of documents, but automatically orients, de-skews and brightens the image for optimum clarity. Scan multiple barcodes with a single trigger pull, or automatically single out and scan one barcode on a field of many. You can capture data from travel documents with OCR. And there’s optional support for U.S. driver’s license parsing and EAS tag deactivation.

Key Features & Highlights

  • Handheld bar code reader Black
  • Scanner type: 1D/2D Sensor type: LED
  • Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, PDF417, UPC-E Aztec Code, Composite Codes, Data Matrix, Dot Code A, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
  • Wired Standard interfaces: USB
  • Power source type: USB

Technical Specifications

Scanning

Type Handheld bar code reader
Scanner type 1D/2D
Sensor type LED
Linear (1D) barcodes supported Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, PDF417, UPC-E
2D (matrix & stacked) barcodes supported Aztec Code, Composite Codes, Data Matrix, Dot Code A, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Pitch reading angle -60 – 60°

Ports & interfaces

Connectivity technology Wired
Standard interfaces USB

Performance

International Protection (IP) code IP52
LED indicators Yes
Product colour Black

Power

Power source type USB
Power consumption 340 mA

Weight & dimensions

Width 98 mm
Depth 165 mm
Height 67 mm
Weight 161.9 g

Operational conditions

Operating temperature (T-T) 0 – 50 °C
Storage temperature (T-T) -40 – 70 °C
Operating relative humidity (H-H) 5 – 95%

Logistics data

Harmonized System (HS) code 84716070
Manufacturer Part Number

DS4608-SR7U2100ZZY

Brand

ZEBRA

UPC / EAN

9999999999999

SKU

GI747I621S

Category

Barcode Readers

Subcategory

Barcode Scanner

Type

Handheld bar code reader

Scanner type

1D/2D

Sensor type

LED

Linear (1D) barcodes supported

Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, PDF417, UPC-E

2D (matrix & stacked) barcodes supported

Aztec Code, Composite Codes, Data Matrix, Dot Code A, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39

Pitch reading angle

-60 – 60°

Connectivity technology

Wired

Standard interfaces

USB

International Protection (IP) code

IP52

LED indicators

Yes

Product colour

Black

Power source type

USB

Power consumption

340 mA

Width

98 mm

Depth

165 mm

Height

67 mm

Weight

161.9 g

Operating temperature (T-T)

0 – 50 °C

Storage temperature (T-T)

-40 – 70 °C

Operating relative humidity (H-H)

5 – 95%

Harmonized System (HS) code

84716070

Product Documentation & Datasheet

Click the button below to view or download the official manufacturer documentation for this product:

📄 Download Official PDF Manual / Datasheet
