About This Product

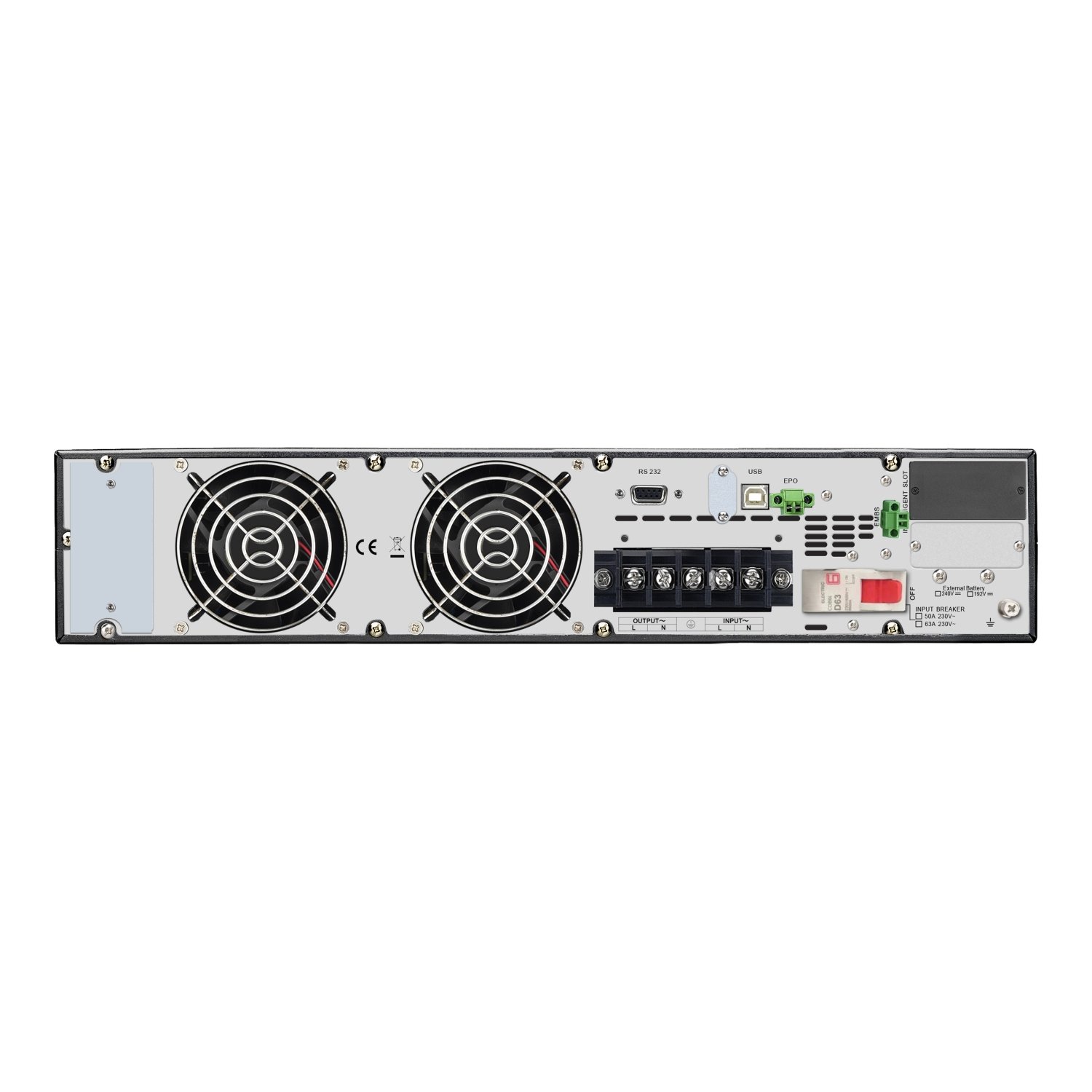

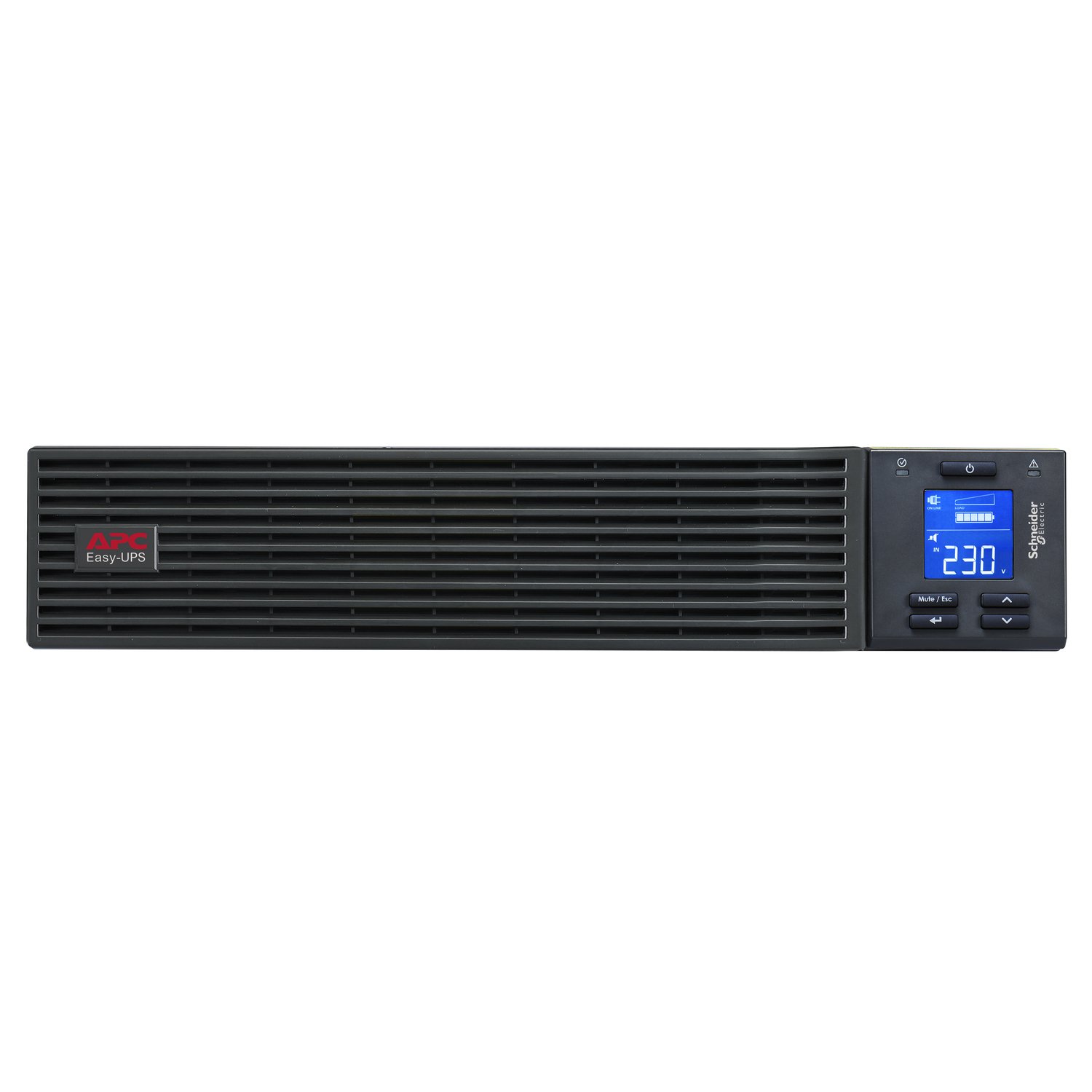

This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA double-conversion on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with hard wire 3-wire(1P+N+E) input and 1x hard wire 3-wire(1P+N+E) outlet. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGLS9901I) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The UPS is compatible with SRVRK1 and SRVRK2 rail kit sold separately. The Easy UPS has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
Key Features & Highlights
- 10kVA/10kW double-conversion on-line pure sine wave 2U rackmount UPS
- High operating efficiency in energy-saving ECO mode
- Add up to 4 external battery packs (SRV240RLBP-9A) for extended runtime
- Easy-to-read LCD interface for detailed and accurate information on UPS status
Technical Specifications
Features
| UPS topology | Double-conversion (Online) |
|---|---|
| Output power capacity | 10 kVA |
| Output power | 10000 W |
| Waveform | Sine |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 600 J |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Single-phase input voltage supported | 230 V |
| Crest factor | 3:1 |
| ECO mode | Yes |
| Emergency Power Off (EPO) | Yes |
| Noise level | 58 dB |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Auto-restart | Yes |
Ports & interfaces
| USB port | Yes |
|---|---|
| Serial interface | Yes |
| SmartSlot | Yes |
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery voltage | 240 V |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
Design
| Form factor | Rackmount/Tower |
|---|---|
| Rack capacity | 2U |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Yes |
Operational conditions
| Operating temperature (T-T) | 0 – 40 °C |
|---|---|
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating altitude | 0 – 3000 m |
| Non-operating altitude | 0 – 15000 m |
Technical details
| Sustainable packaging | No |
|---|---|
| Packaging recycled materials | Recycled cardboard |
| SCIP number | 080b8d64-796e-42e7-a17d-31b86e55d143 |
Certificates
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|---|
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | CE; EAC |
Packaging content
| Cables included | USB cable |
|---|---|
| Manual | Yes |
Weight & dimensions
| Width | 438 mm |
|---|---|
| Depth | 615 mm |
| Height | 86.5 mm |
| Weight | 16 kg |
Packaging data
| Package width | 600 mm |
|---|---|
| Package depth | 760 mm |
| Package height | 240 mm |
| Package weight | 20 kg |
Logistics data
| Customs product code (TARIC) | 8504409590 |
|---|---|
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 3952.78125558934 |
| Country of origin | China |
Other features
| Output connection type | hard wire 3-wire (1P + N + E) for 1 zone(s) |
|---|---|
| Output voltage | 230 V |
| Mounting | front; horizontal |
