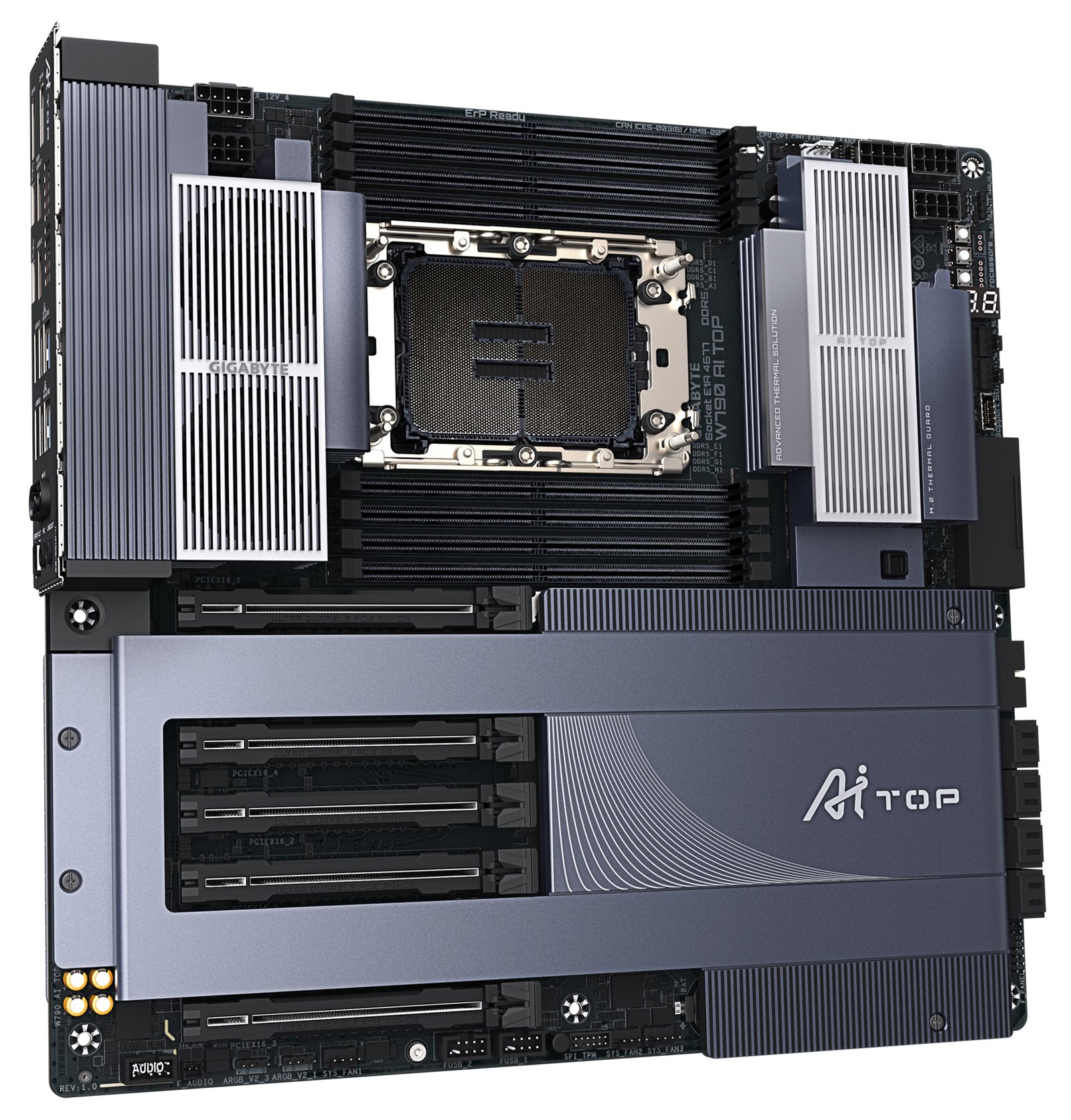

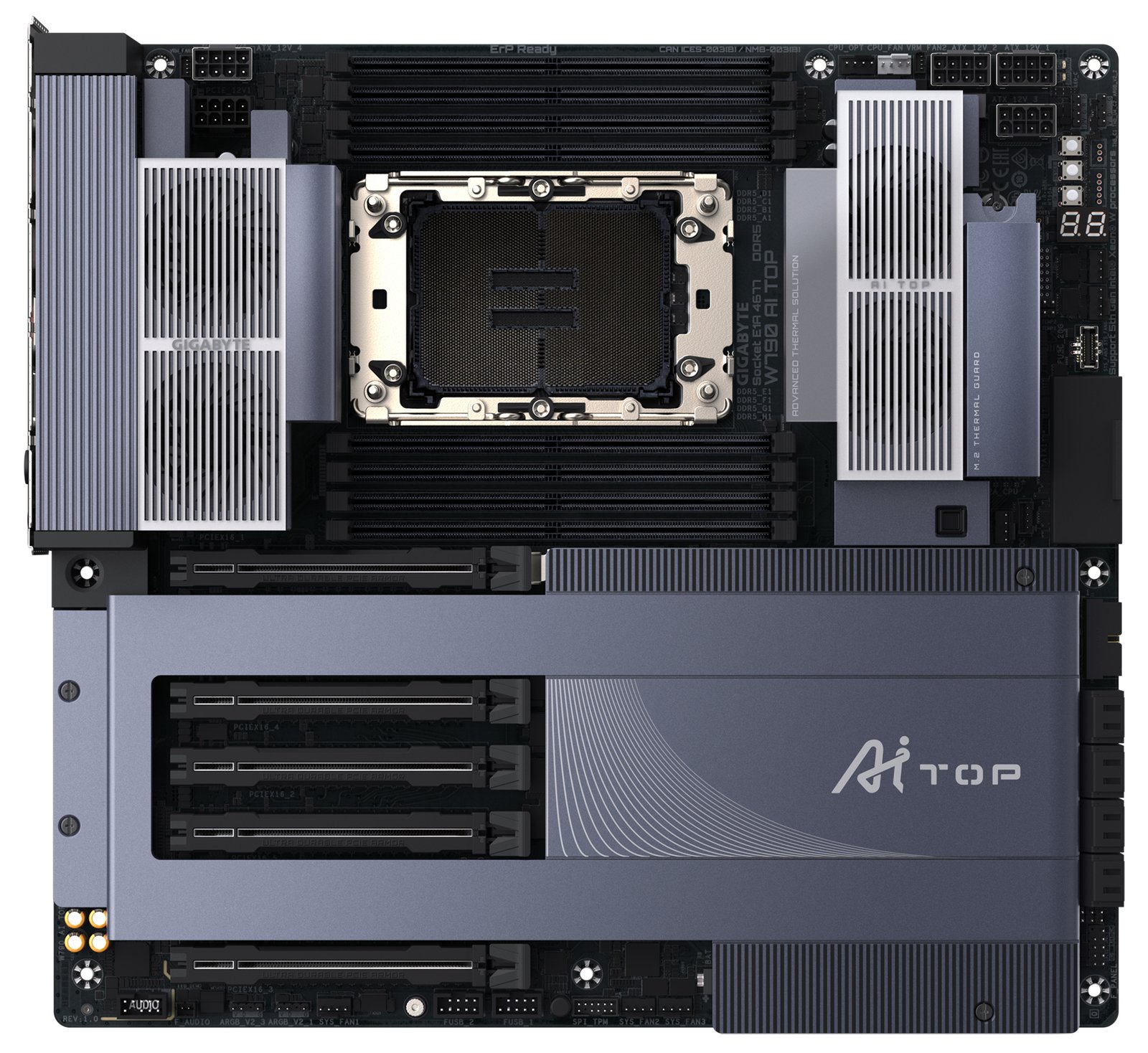

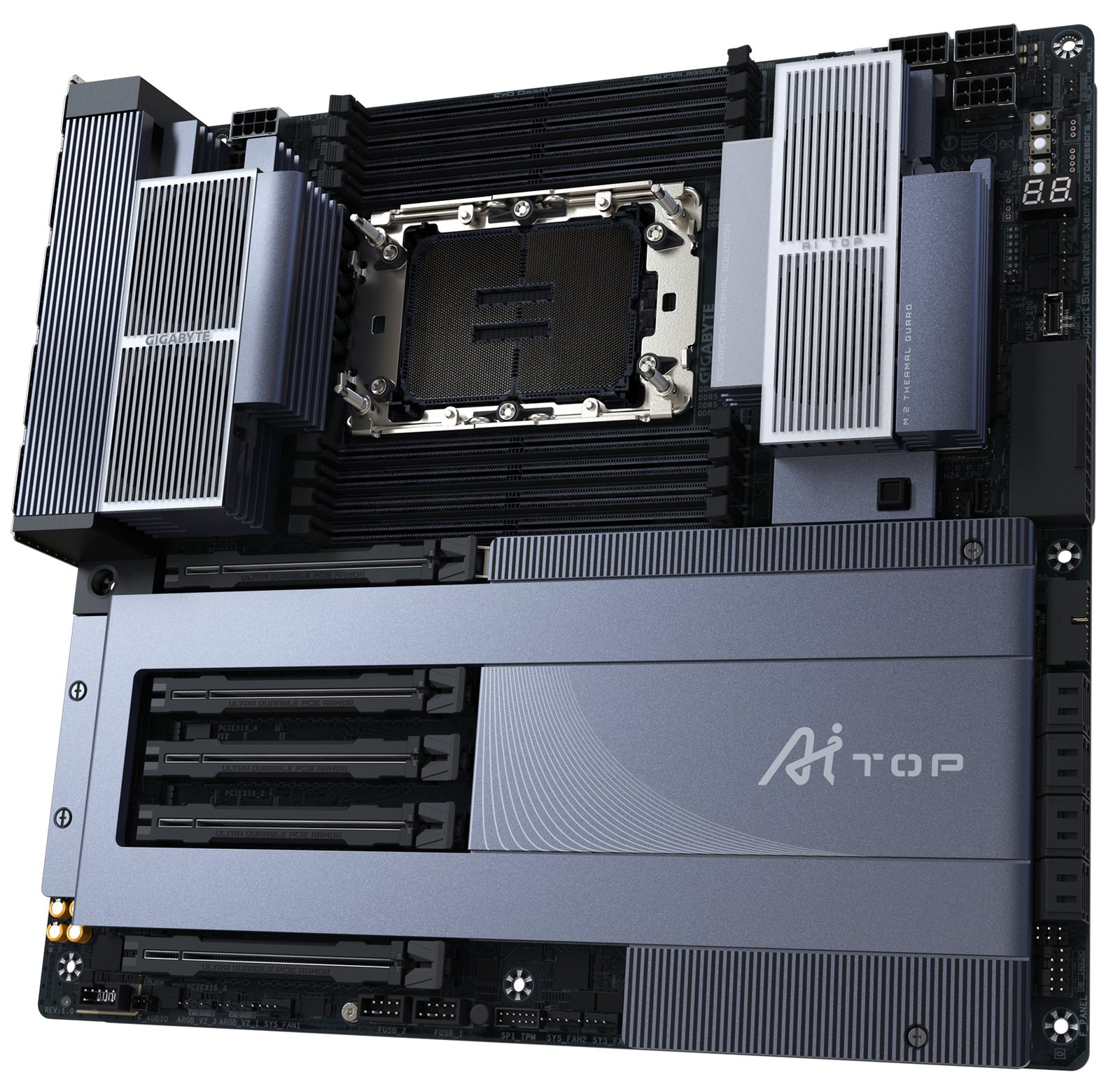

About This Product
Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Key Features & Highlights
- Training your own AI on your desk
- Support 5th Gen Intel Xeon W processors
- Digital twin 16+2+2 phases VRM solution
- Ultimate Scalibility : 5 * PCIe 5.0 x16 slots for Multi-GPU and 6*PCIe 5.0/4.0 M.2 slots
- Next-gen Connectivity : Dual Thunderbolt 4 Type-C with DP-Alt
- Blazing Fast Networks : Dual Sever-grade 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna
- 8 Channel DDR5 : 8*SMD ECC R-DIMMs with Maxmium 2TB capacity
- Reinforced Overall Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard Ext.
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- PCIe EZ-Latch Plus : PCIe slots with Quick Release & Screwless Design
- Friendly UI : AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
📄 Product Documentation: Download Official Manual / Spec Sheet (PDF)
Technical Specifications
Processor
| Processor manufacturer | Intel |
|---|---|
| Processor socket | LGA 4677 (Socket E) |
| Compatible processor series | Intel® Xeon® |
| Intel Xeon series | W-2400, W-3400, W3500, W-2500 |
Memory
| Supported memory types | DDR5-SDRAM |
|---|---|
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory channels | Octa-channel |
| ECC сompatibility | ECC |
| Supported memory clock speeds | 4800,5600 MHz |
| Supported memory clock speed (max) | 5600 MHz |
| Maximum internal memory | 2 TB |
| Maximum RDIMM memory | 256 GB |
Storage controllers
| Supported storage drive types | HDD & SSD |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| Number of HDDs supported | 8 |
| Number of storage drives supported | 14 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Parallel processing technology support | Not supported |
|---|
Internal I/O
| USB 2.0 connectors | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2×2 connectors | 1 |
| Number of SATA III connectors | 8 |
| Audio connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 6 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 4 |
| TPM connector | Yes |
| Number of water pump connectors | 1 |
| Number of temperature sensor headers | 2 |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 4 |

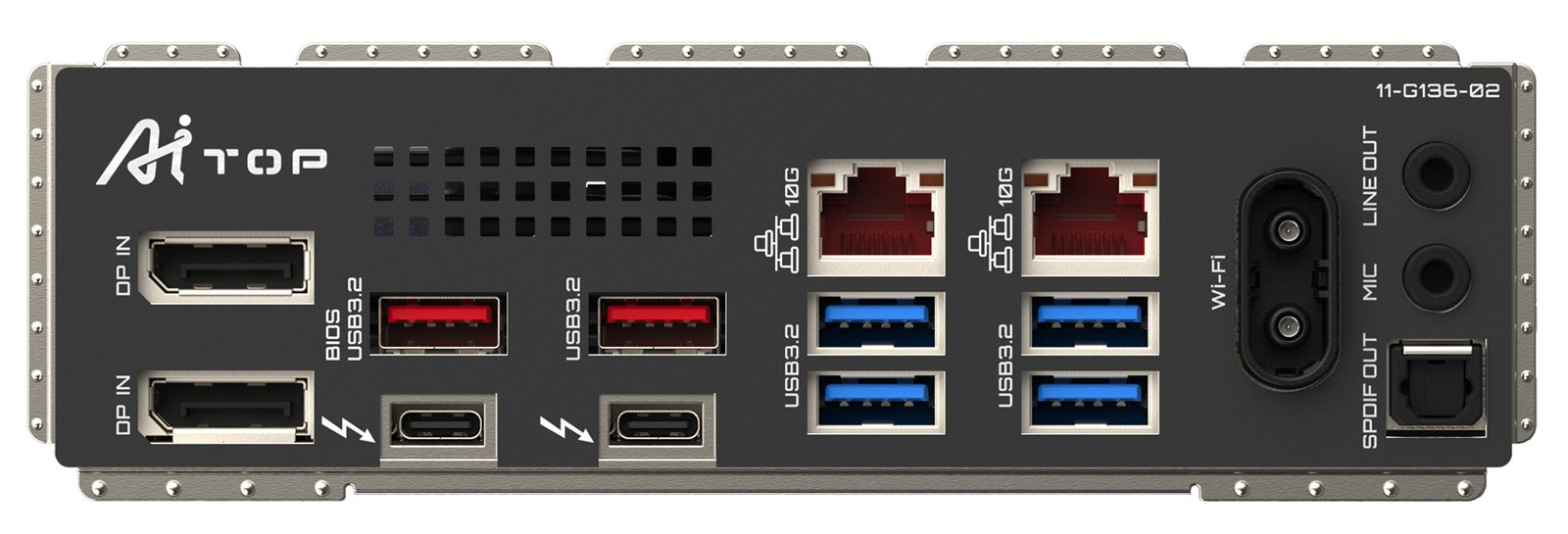

Rear panel I/O ports
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| DisplayPorts quantity | 2 |
| Headphone outputs | 1 |
| Line-in | Yes |
| S/PDIF out port | Yes |
| Digital audio optical out | 1 |
| Thunderbolt ports quantity | 2 |
| WiFi-AP antenna jack | 2 |
Network
| Ethernet LAN | Yes |
|---|---|
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Intel X710-AT2 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN controller model | Intel Wi-Fi 7 BE200 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
Features
| Motherboard chipset | Intel W790 |
|---|---|
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Component for | Server |
| Motherboard form factor | Extended ATX |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Windows operating systems supported | Windows 11 x64 |
Expansion slots
| PCI Express x16 (Gen 5.x) slots | 5 |
|---|---|
| Number of M.2 (M) slots | 6 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 5.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 5.0 |
| 5th M.2 largest key size | 2280 |
| 5th M.2 highest PCI Express generation | 4.0 |
| 6th M.2 largest key size | 2280 |
| 6th M.2 highest PCI Express generation | 4.0 |
BIOS
| BIOS type | UEFI AMI |
|---|---|
| BIOS memory size | 512 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Processor special features
| Trusted Platform Module (TPM) | Yes |
|---|
Logistics data
| Country of origin | Taiwan |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
Battery
| Battery weight | 3 g |
|---|---|
| Lithium weight per battery | 0.07 g |
| Number of battery cells | 1 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
Packaging data
| Package width | 363 mm |
|---|---|
| Package depth | 383 mm |
| Package height | 93 mm |
| Package weight | 5.7 kg |
Weight & dimensions
| Width | 305 mm |
|---|---|
| Depth | 330 mm |
| Height | 35 mm |
Packaging content
| Batteries included | Yes |
|---|---|
| Antenna included | Yes |
| Screws included | Yes |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
Other features
| Weight | 4.87 kg |
|---|
Technical details
| Warranty period | 3 year(s) |
|---|
