LG 86UH5N-M Digital signage flat panel 2.18 m (86″) LCD Wi-Fi 500 cd/m² 4K Ultra HD Black WebOS 24/7

Out of stock

236,000.00

Accepted Payment Methods

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

About This Product

UHD Signage Display with
LG webOS Platform and Advanced Security

High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.

Sturdy Design with Fire Flame Resistance
The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.

Convenient webOS Platform
The UH5N-M is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.

Design for Space Utilization

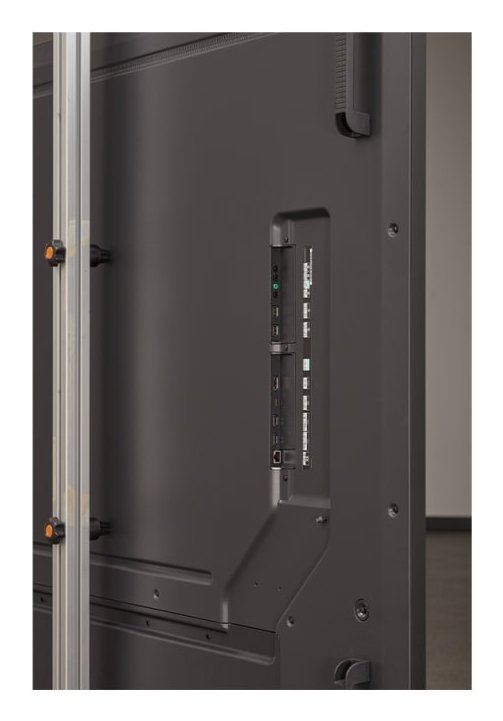

Designed with thin bezels and simple cable management, the UH5N-M saves space. With specialized hidden power inlets, it can be installed close to the wall, leaving only about 13 mm of space with the slim bracket.

Durability that Provides Reliability
Optimized for business environments, the UH5N-M is protected against salt, dust, iron powder and humidity thanks to conformal coating on power board, allowing for stable operation. Also, its customer-centric features, such as IP5x and Shock Monitoring, provide both reliability and satisfaction.

Enhanced Security Features
The UH5N-M provides security features, including LG’s Enhanced Kernel Protection (EKP) technology, protecting important data from external access or attacks. LG UHD Signage also holds reliable certification in the field of information security, maintaining customers’ data and businesses securely. For example, this model is ISO/IEC 15408 Common Criteria EAL2 Certified.

Sustainability
With a commitment to innovation and sustainability, LG is continuously striving to create a better future for manufacturers, consumers, and future generations. With a focus on minimizing waste, maximizing recycling, and efficient power management, LG actively strives for sustainability, obtaining various certifications such as FCC EMC Class B.

SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.

Key Features & Highlights

  • Resolution : 3,840 × 2,160 (UHD)
  • Brightness : 500 nits (Typ.)
  • Surface Treatment (Haze) : 25%
  • Bezel Width : 13.4 mm

Technical Specifications

Display

Panel type IPS
LED backlight Yes
LED backlighting type Edge-LED
Display diagonal 2.18 m (86")
Display technology LCD
Display resolution 3840 x 2160 pixels
Display brightness 500 cd/m²
HD type 4K Ultra HD
Touchscreen No
Native aspect ratio 16:9
Response time 8 ms
Contrast ratio (typical) 1200:1
Contrast ratio (dynamic) 1000000:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Display number of colours 1.07 billion colours
Panel life 50000 h
Native refresh rate 120 Hz
Haze rate 25%

Ports & interfaces

HDMI ports quantity 4
HDMI input ports quantity 3
HDMI output ports quantity 1
DVI port No
DisplayPorts quantity 1
USB port No
USB ports quantity 1
USB version 2.0
USB connector type USB Type-A
Ethernet LAN (RJ-45) ports 1
RS-232C Yes
Remote (IR) input 1

Audio

Built-in speaker(s) Yes
RMS rated power 20 W

Design

Product design Digital signage flat panel
Placement supported Indoor
Orientation Horizontal/Vertical
Product colour Black
VESA mounting Yes
Panel mounting interface 600 x 400 mm
Bezel width (bottom) 1.34 cm

Performance

Purpose Universal
Picture-in-Picture Yes
On Screen Display (OSD) Yes
Operating hours (hours/days) 24/7
HDCP Yes
International Protection (IP) code IPX5
HDCP version 1.4/2.2/2.3

Power

Power consumption (standby) 0.5 W
Power consumption (max) 297 W
AC input voltage 100 – 240 V
AC input frequency 50 – 60 Hz
Heat dissipation 699 BTU/h

Computer system

Computer system Yes
Computer system type System on Chip (SoC)
Internal memory 16 GB
Operating system installed WebOS
Operating system version 6.0

Weight & dimensions

Display width 1928.8 mm
Display depth 29.7 mm
Display height 1099.8 mm
Display weight 53 kg

Packaging data

Package width 2100 mm
Package depth 253 mm
Package height 1250 mm
Package weight 66.7 kg

Packaging content

Remote control included Yes
Batteries included Yes
Cables included AC

Operational conditions

Operating temperature (T-T) 0 – 40 °C
Operating relative humidity (H-H) 10 – 80%

Network

Ethernet LAN Yes
Wi-Fi Yes

Features

Heat dissipation (max) 1013 BTU/h
Manufacturer Part Number

86UH5N-M.ATRD

Brand

LG

UPC / EAN

8806096309476

SKU

GDA257466A01

Category

Signage Displays

Subcategory

Terminals

Panel type

IPS

LED backlight

Yes

LED backlighting type

Edge-LED

Display diagonal

2.18 m (86")

Display technology

LCD

Display resolution

3840 x 2160 pixels

Display brightness

500 cd/m²

HD type

4K Ultra HD

Touchscreen

No

Native aspect ratio

16:9

Response time

8 ms

Contrast ratio (typical)

1200:1

Contrast ratio (dynamic)

1000000:1

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

1.07 billion colours

Panel life

50000 h

Native refresh rate

120 Hz

Haze rate

25%

HDMI ports quantity

4

HDMI input ports quantity

3

HDMI output ports quantity

1

DVI port

No

DisplayPorts quantity

1

USB port

No

USB ports quantity

1

USB version

2.0

USB connector type

USB Type-A

Ethernet LAN (RJ-45) ports

1

RS-232C

Yes

Remote (IR) input

1

Built-in speaker(s)

Yes

RMS rated power

20 W

Product design

Digital signage flat panel

Placement supported

Indoor

Orientation

Horizontal/Vertical

Product colour

Black

VESA mounting

Yes

Panel mounting interface

600 x 400 mm

Bezel width (bottom)

1.34 cm

Purpose

Universal

Picture-in-Picture

Yes

On Screen Display (OSD)

Yes

Operating hours (hours/days)

24/7

HDCP

Yes

International Protection (IP) code

IPX5

HDCP version

1.4/2.2/2.3

Power consumption (standby)

0.5 W

Power consumption (max)

297 W

AC input voltage

100 – 240 V

AC input frequency

50 – 60 Hz

Heat dissipation

699 BTU/h

Computer system

Yes

Computer system type

System on Chip (SoC)

Internal memory

16 GB

Operating system installed

WebOS

Operating system version

6.0

Display width

1928.8 mm

Display depth

29.7 mm

Display height

1099.8 mm

Display weight

53 kg

Package width

2100 mm

Package depth

253 mm

Package height

1250 mm

Package weight

66.7 kg

Remote control included

Yes

Batteries included

Yes

Cables included

AC

Operating temperature (T-T)

0 – 40 °C

Operating relative humidity (H-H)

10 – 80%

Ethernet LAN

Yes

Wi-Fi

Yes

Heat dissipation (max)

1013 BTU/h

Product Documentation & Datasheet

Click the button below to view or download the official manufacturer documentation for this product:

📄 Download Official PDF Manual / Datasheet
