About This Product
Eliminate clutter by connecting your DP computer directly to an HDMI display, using this 5-meter cable
This 5-meter (16 ft.) DisplayPort to HDMI® adapter cable lets you connect your DisplayPort equipped Ultrabook™, laptop or desktop computer to an HDMI television, monitor or projector, with no additional adapters or cables required. The passive adapter supports video resolutions up to Ultra HD 4K, ensuring support for high-resolution applications.
Astonishing picture quality
This adapter cable ensures you can maintain an astonishing 4K picture quality, four times the resolution of 1080p, when converting DisplayPort to HDMI. The adapter is also backward-compatible with lower-resolution displays and video sources. With support for high-definition resolutions of 1080p and 720p, you can future-proof your existing setup for 4K video.
Hassle-free setup
For the simplest and most discreet installation, this DP to HDMI adapter connects directly from your DisplayPort video source to the HDMI port on your display. It doesn’t need a power source, unlike some converter dongles that require active power and separate bulky video cabling.
Clutter-free installation
With a built-in DP to HDMI adapter, this 5 m cable delivers a direct connection that eliminates the need for additional adapters, ensuring a tidy, professional installation. Plus, because the cable is 5 meters (16 feet) in length, the cable is ideal when connecting your computer to a display that’s much further away than a standard 6 ft. (2 m) cable.
For shorter installations, we also offer a 1 m DP to HDMI cable (DP2HDMM1MB), 2 m DP to HDMI cable (DP2HDMM2MB) and a 3 m DP to HDMI cable (DP2HDMM3MB), enabling you to choose the right cable length for your custom installation needs.
The DP2HDMM5MB is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Key Features & Highlights
- PERFORMANCE: 16ft (5m) DisplayPort 1.2 to HDMI 1.4 adapter cable connects a DP desktop/laptop to an HDMI monitor, projector or TV / Supports UHD 4K 30Hz (3840×2160) and 1080p video, 7.1ch Audio, HDCP 1.4 & DPCP
- HOST COMPATIBILITY: DisplayPort to HDMI cable is tested for compatibility with DP++ source; Passive converter cable supports DP++ source connector incl workstations, desktops (AMD/Nvidia video card), laptops, small form factor computers & docking stations
- INTEGRATED DISPLAY CABLE: DisplayPort to HDMI adapter cable has flexible design w/ adapter chip built into HDMI connector reducing clutter & providing a tidy install in the office or home office; 16' (5m) cable length for easy routing and install

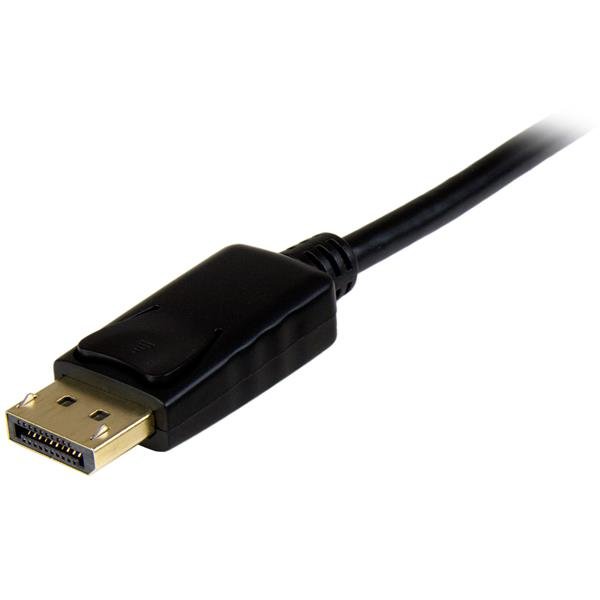

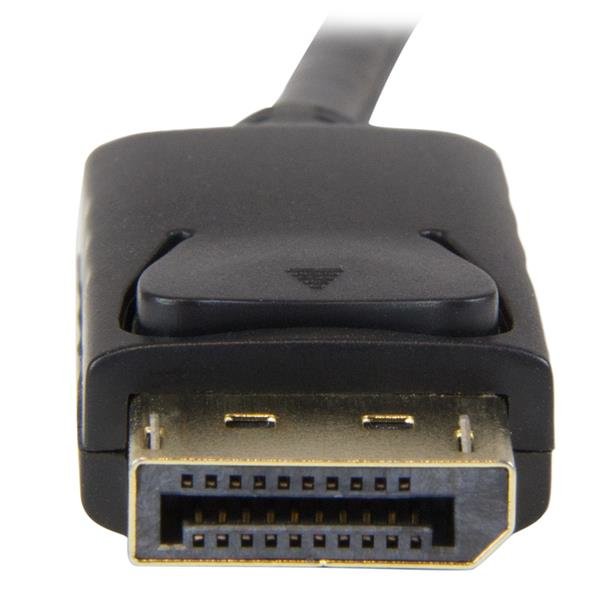

- LATCHING DISPLAYPORT CONNECTOR: DP to HDMI cable features a latching DP connector to prevent accidental disconnection from the host DP port; With chipset built into HDMI connector it minimizes signal loss, providing a crystal clear image
- EASY TO USE: With no software or drivers required, the DisplayPort to HDMI cord is OS independent; DP male to HDMI male cable
Technical Specifications
Features
| Connector 1 form factor | Straight |
|---|---|
| Connector 2 form factor | Straight |
| Cable length | 5 m |
| Connector 1 | DisplayPort |
| Connector 2 | HDMI |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| HDMI version | 1.4 |
| HDCP | Yes |
| HDCP version | 1.4 |
| DisplayPort version | 1.2 |
| DisplayPort Content Protection (DPCP) | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Product colour | Black |
| Plug and Play | Yes |
| Converter type | Passive |
Operational conditions
| Operating temperature (T-T) | 0 – 70 °C |
|---|---|
| Storage temperature (T-T) | -10 – 70 °C |
| Operating relative humidity (H-H) | 10 – 85% |
Certificates
| Compliance certificates | CE, RoHS |
|---|
Weight & dimensions
| Weight | 211.3 g |
|---|---|
| Width | 22 mm |
| Depth | 5000 mm |
| Height | 11 mm |
Packaging data
| Package width | 200 mm |
|---|---|
| Package depth | 220 mm |
| Package height | 30 mm |
| Package weight | 222 g |
Logistics data
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 426 mm |
| Master (outer) case length | 435 mm |
| Master (outer) case height | 430 mm |
| Products per master (outer) case | 60 pc(s) |
