About This Product
Eliminate clutter by connecting your PC directly to an HDMI display

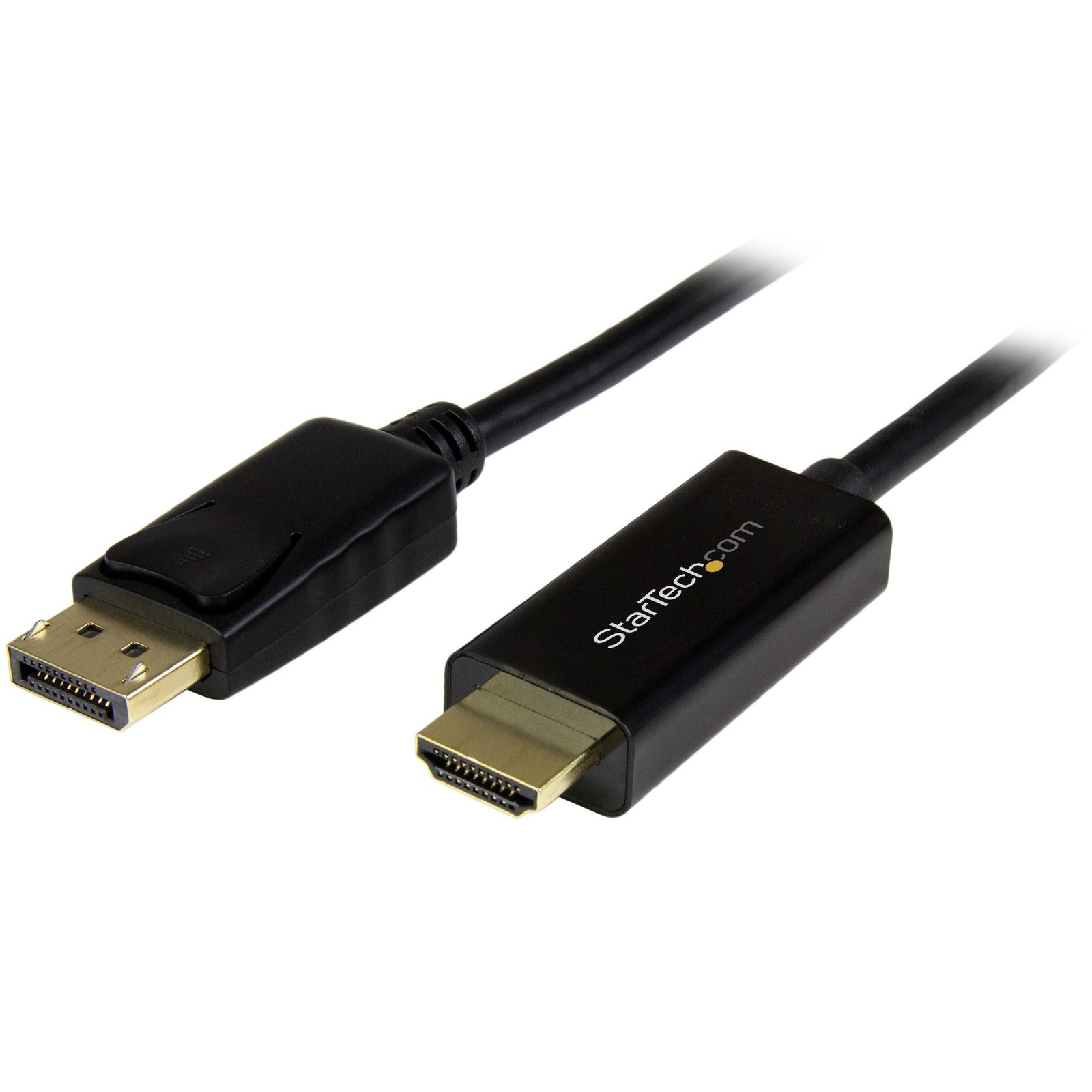

This 6.5-foot (2M) DisplayPort™ to HDMI® adapter cable lets you connect your DisplayPort equipped Ultrabook™; laptop or desktop computer to an HDMI display or projector with no additional adapters or cables required. The passive adapter supports video resolutions up to Ultra HD 4K.
Astonishing picture quality
This adapter cable ensures you can maintain an astonishing picture quality, four times the resolution of 1080p, when converting DisplayPort to HDMI. The adapter is also backward compatible with lower resolution displays and video sources. With support for high-definition resolutions of 1080p and 720p, you can future-proof your existing setup for 4K video.
Hassle-free setup
For the simplest and most discreet installation, this DP to HDMI adapter connects directly from your DisplayPort video source to the HDMI port on your display. It doesn’t need a power source, unlike some converter dongles that require active power and separate bulky video cabling.
Clutter-free installation
At 6.5ft (2m) in length, this adapter cable delivers a compact connection that eliminates excess to ensure a tidy, professional installation. For shorter installations, we also offer a 3 ft DP to HDMI cable (DP2HDMM1MB), enabling you to choose the right cable length for your custom installation needs.
The DP2HDMM2MB is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Key Features & Highlights
- PERFORMANCE: 6.6ft (2m) DisplayPort 1.2 to HDMI 1.4 adapter cable connects a DP desktop/laptop to an HDMI monitor, projector or TV / Supports UHD 4K 30Hz (3840×2160) and 1080p video, 7.1ch Audio, HDCP 1.4 & DPCP
- HOST COMPATIBILITY: DisplayPort to HDMI cable is tested for compatibility with DP++ source; Passive converter cable supports DP++ source connector incl workstations, desktops (AMD/Nvidia video card), laptops, small form factor computers & docking stations

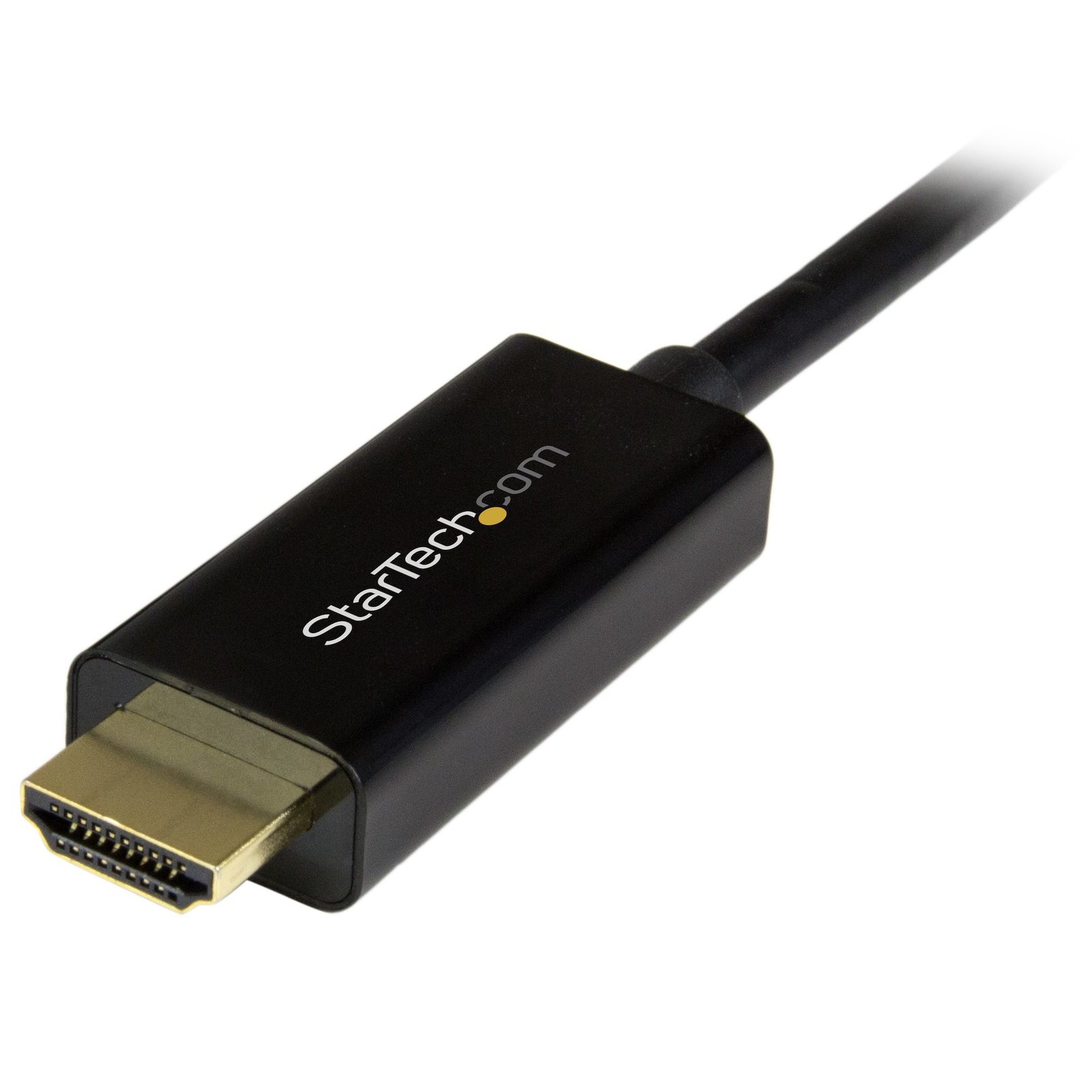

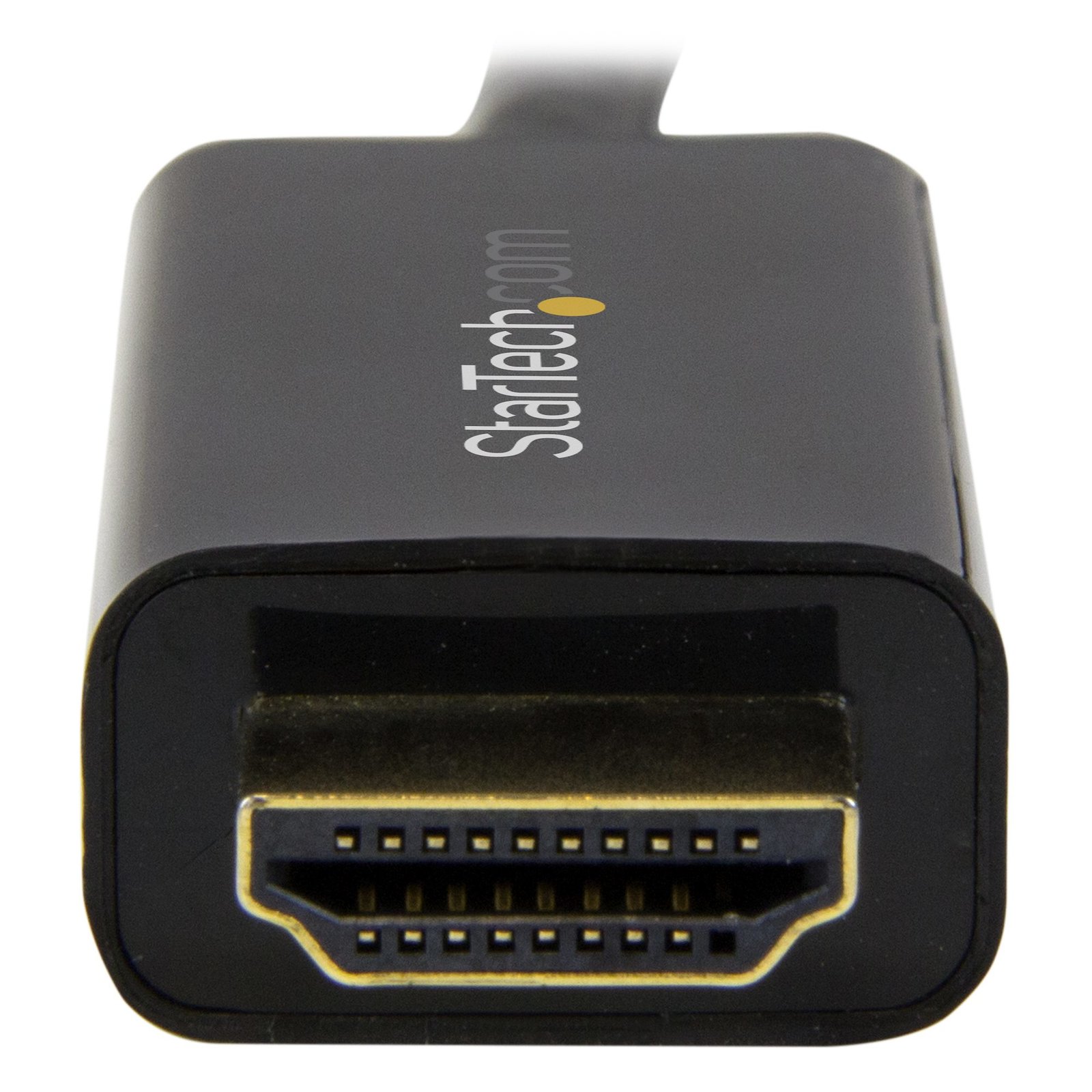

- INTEGRATED DISPLAY CABLE: DisplayPort to HDMI adapter cable has flexible design w/ adapter chip built into HDMI connector reducing clutter & providing a tidy install in the office or home office; 6.6' (2m) cable length for easy routing and install

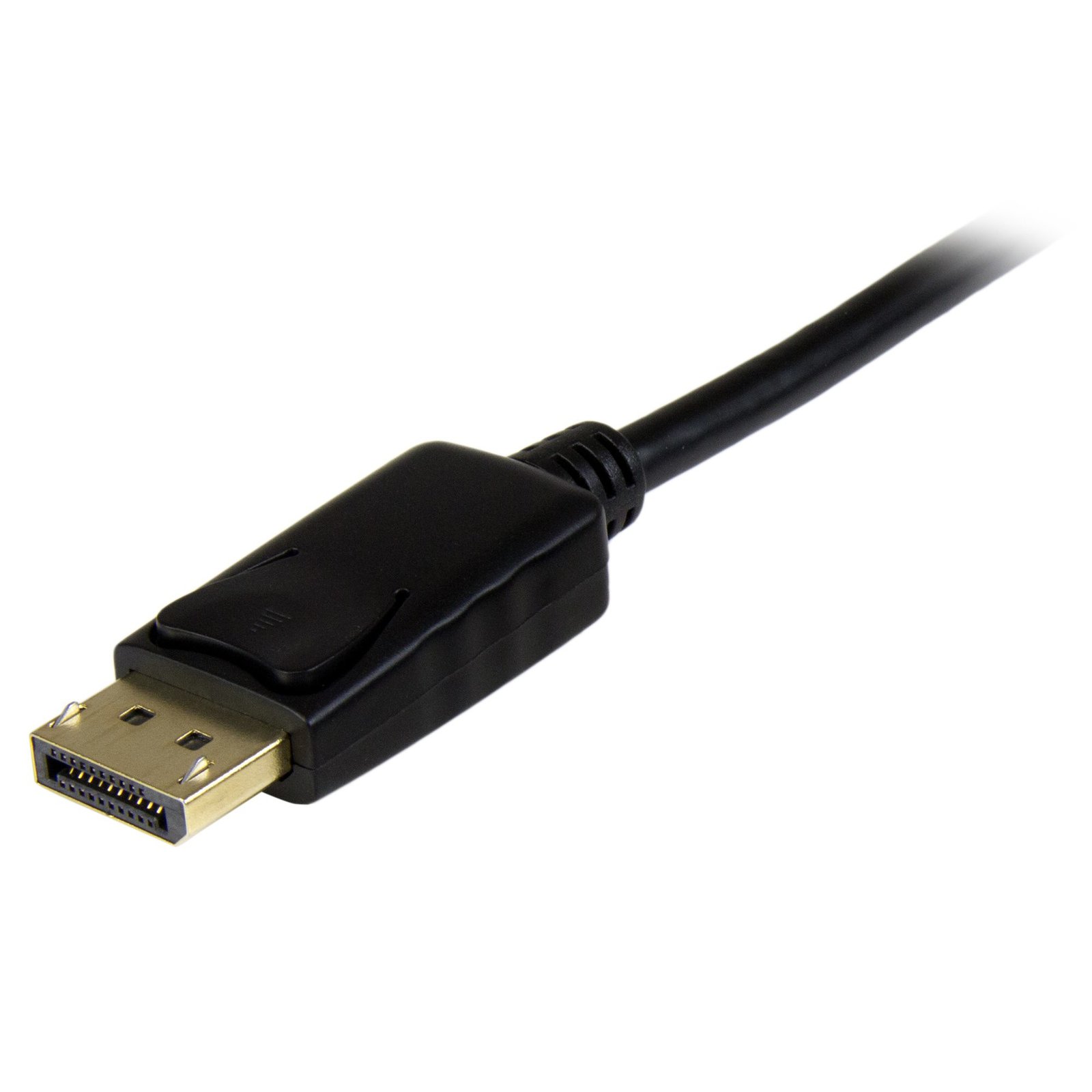

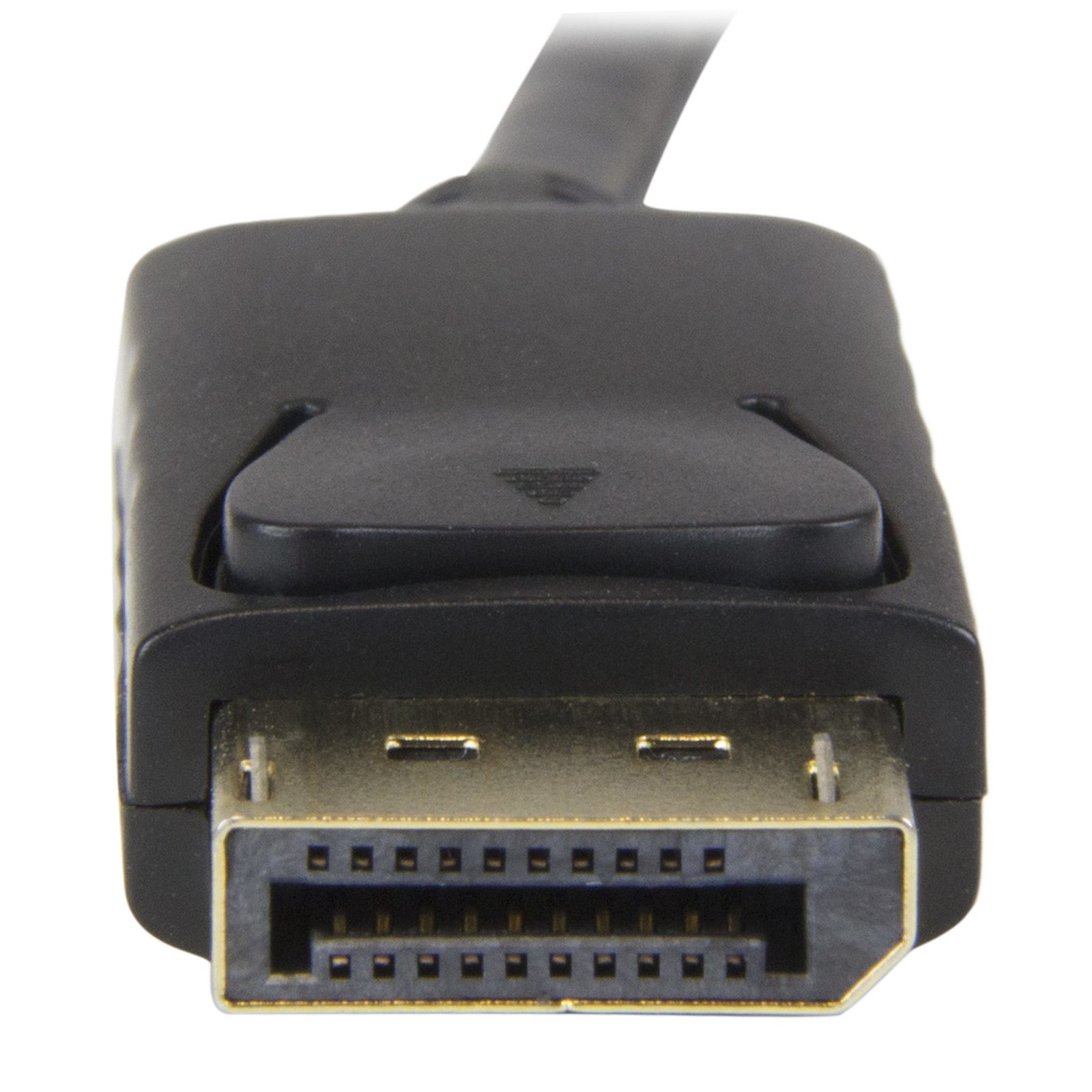

- LATCHING DISPLAYPORT CONNECTOR: DP to HDMI cable features a latching DP connector to prevent accidental disconnection from the host DP port; With chipset built into HDMI connector it minimizes signal loss, providing a crystal clear image
- EASY TO USE: With no software or drivers required, the DisplayPort to HDMI cord is OS independent; DP male to HDMI male cable
Technical Specifications
Features
| Connector 1 form factor | Straight |
|---|---|
| Connector 2 form factor | Straight |
| Cable length | 2 m |
| Connector 1 | HDMI Type A (Standard) |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| HDMI version | 1.4 |
| HDCP | Yes |
| HDCP version | 1.4 |
| DisplayPort version | 1.2 |
| DisplayPort Content Protection (DPCP) | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Supported video modes | 1080p, 720p |
| Maximum refresh rate | 30 Hz |
| Product colour | Black |
| Supported audio channels | 7.1 |
| Plug and Play | Yes |
| Converter type | Passive video converter |
Operational conditions
| Operating temperature (T-T) | 0 – 70 °C |
|---|---|
| Storage temperature (T-T) | -10 – 70 °C |
| Operating relative humidity (H-H) | 10 – 85% |
Certificates
| Compliance certificates | CE, RoHS |
|---|---|
| Certification | RoHS, CE, FCC |
Weight & dimensions
| Weight | 82.4 g |
|---|---|
| Width | 21 mm |
| Depth | 2000 mm |
| Height | 12 mm |
Packaging data
| Package width | 199 mm |
|---|---|
| Package depth | 142 mm |
| Package height | 24 mm |
| Package weight | 96 g |
Logistics data
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 473 mm |
| Master (outer) case length | 435 mm |
| Master (outer) case height | 423 mm |
| Products per master (outer) case | 180 pc(s) |
Other features
| Supported resolutions | 4000 x 2000 1920 x 1200 1920 x 1080 1280 x 720 |
|---|
