About This Product
Connect your HDMI® monitor or HDTV to a DisplayPort® equipped computer

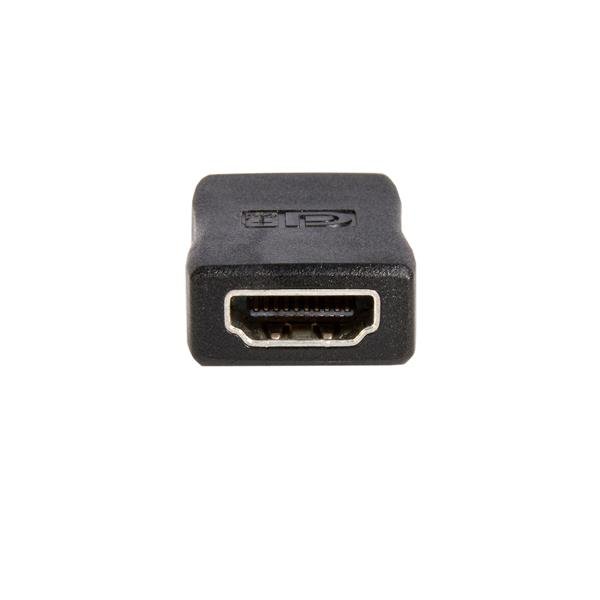

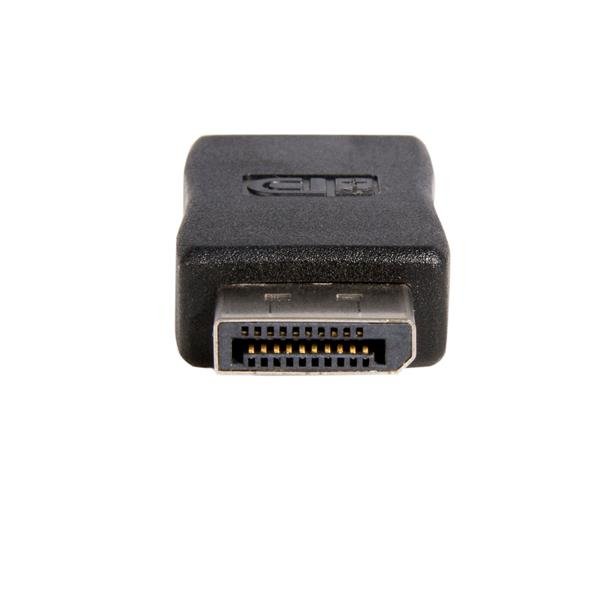

The DP2HDMIADAP DisplayPort® to HDMI® Adapter provides a DisplayPort male and HDMI female connector, allowing you to keep your existing (HDMI) display while using a DisplayPort video card/source.
Supporting display resolutions of up to 1920×1200 (computer)/1080p (HDTV), this cost-effective solution maintains the incredible graphical performance offered by DisplayPort, while eliminating the cost of having to upgrade your HDMI-capable display to a display with built-in DisplayPort support.
DP2HDMIADAP is a passive adapter cable that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
This adapter allows for audio pass-through if supported by the video source. Please review the video source manual to confirm support.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Key Features & Highlights
- PERFORMANCE: This DisplayPort 1.2 to HDMI adapter connects a DP desktop or laptop to an HDMI display, projector, monitor or TV / Supports HD 1920×1200 (1080p) video, 7.1ch Audio, HDCP 1.4 / VESA DisplayPort Certified
- HOST COMPATIBILITY: DisplayPort to HDMI adapter tested for compatibility with DP++ source; Passive converter supports DP++ source connector incl workstations, desktops (AMD/Nvidia video cards), laptops, small form factor computers & docking stations
- SMALL FORM FACTOR: With no attached cable and compact design, the adapter connects directly to your HDMI cable for a clean look / Use to connect primary monitor or projector or add a secondary display / Perfect for travel and easily fits into a bag pocket
- STABLE CONNECTION: DP to HDMI adapter features a non-latching DP connector that is easy to disconnect from a hard to reach source / Tested with HDMI cables at extended lengths up to 35ft
- EASY TO USE: With no software or drivers required, the DisplayPort to HDMI video adapter is OS independent; DP male to HDMI female
Technical Specifications
Ports & interfaces
| Connector 1 | DisplayPort |
|---|---|
| Connector 2 | HDMI |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| DisplayPort version | 1.2 |
Performance
| Product colour | Black |
|---|---|
| Supported video modes | 1080p |
| Maximum resolution | 1920 x 1200 pixels |
| Converter type | Passive video converter |
| Audio support | Yes |
| Plug and Play | Yes |
Operational conditions
| Operating temperature (T-T) | 5 – 35 °C |
|---|---|
| Storage temperature (T-T) | -20 – 60 °C |
| Relative humidity | 0 – 65% |
Certificates
| Compliance certificates | CE, RoHS |
|---|
Weight & dimensions
| Width | 18 mm |
|---|---|
| Depth | 55 mm |
| Height | 9 mm |
| Weight | 16 g |
Packaging data
| Package width | 47 mm |
|---|---|
| Package depth | 89 mm |
| Package height | 33 mm |
| Package weight | 18 g |
Logistics data
| Products per master (outer) case | 600 pc(s) |
|---|---|
| Master (outer) case width | 334 mm |
| Master (outer) case length | 506 mm |
| Master (outer) case height | 220 mm |
