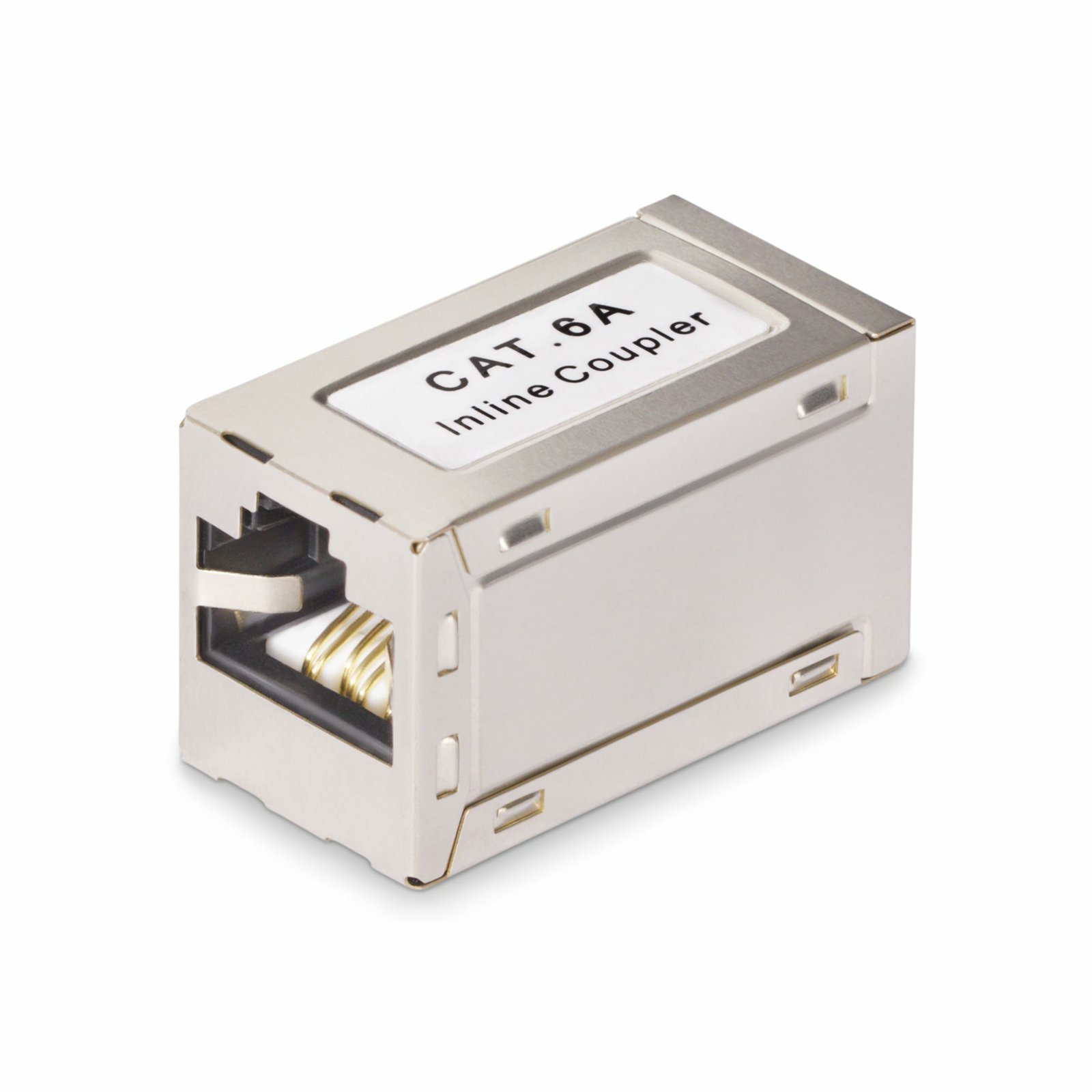

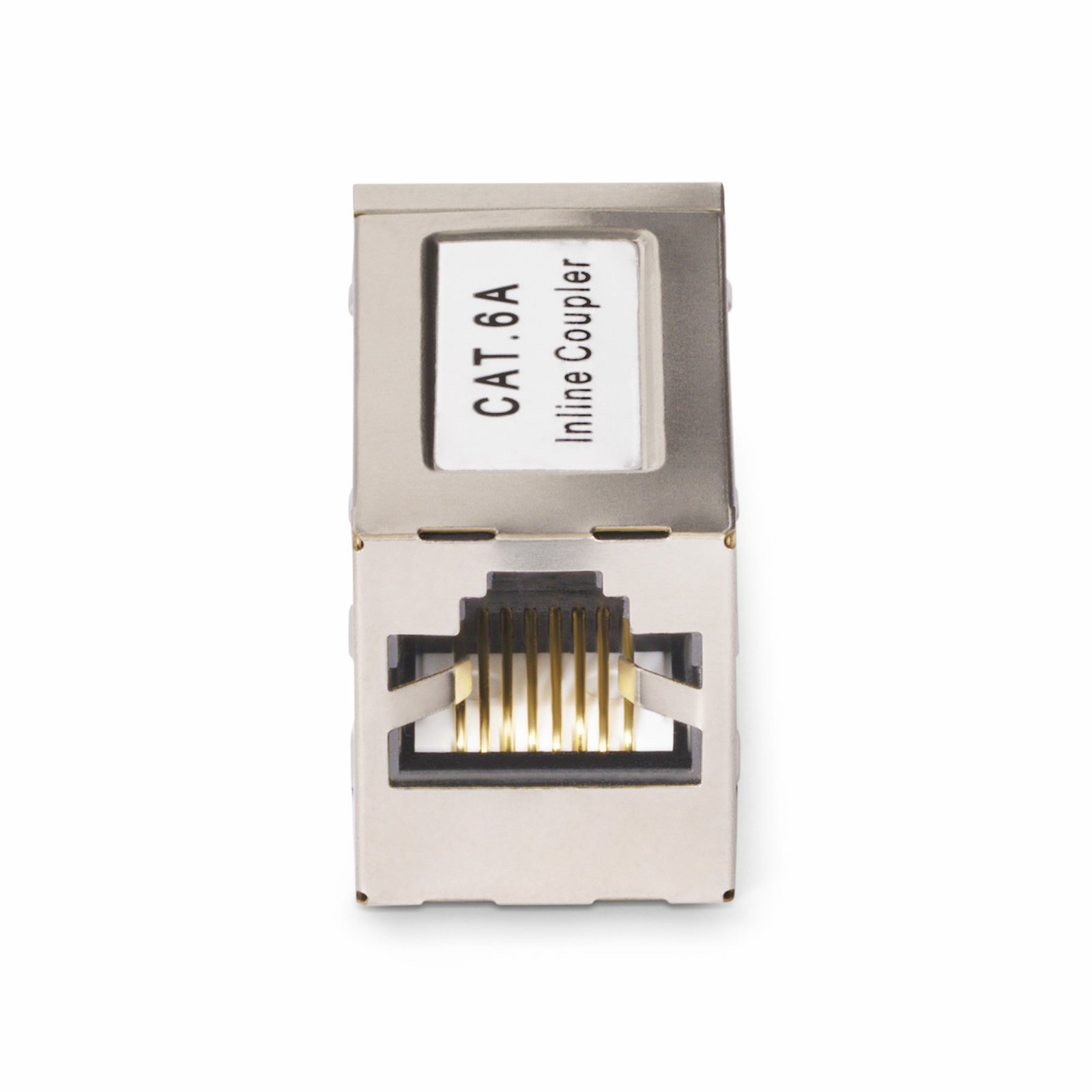

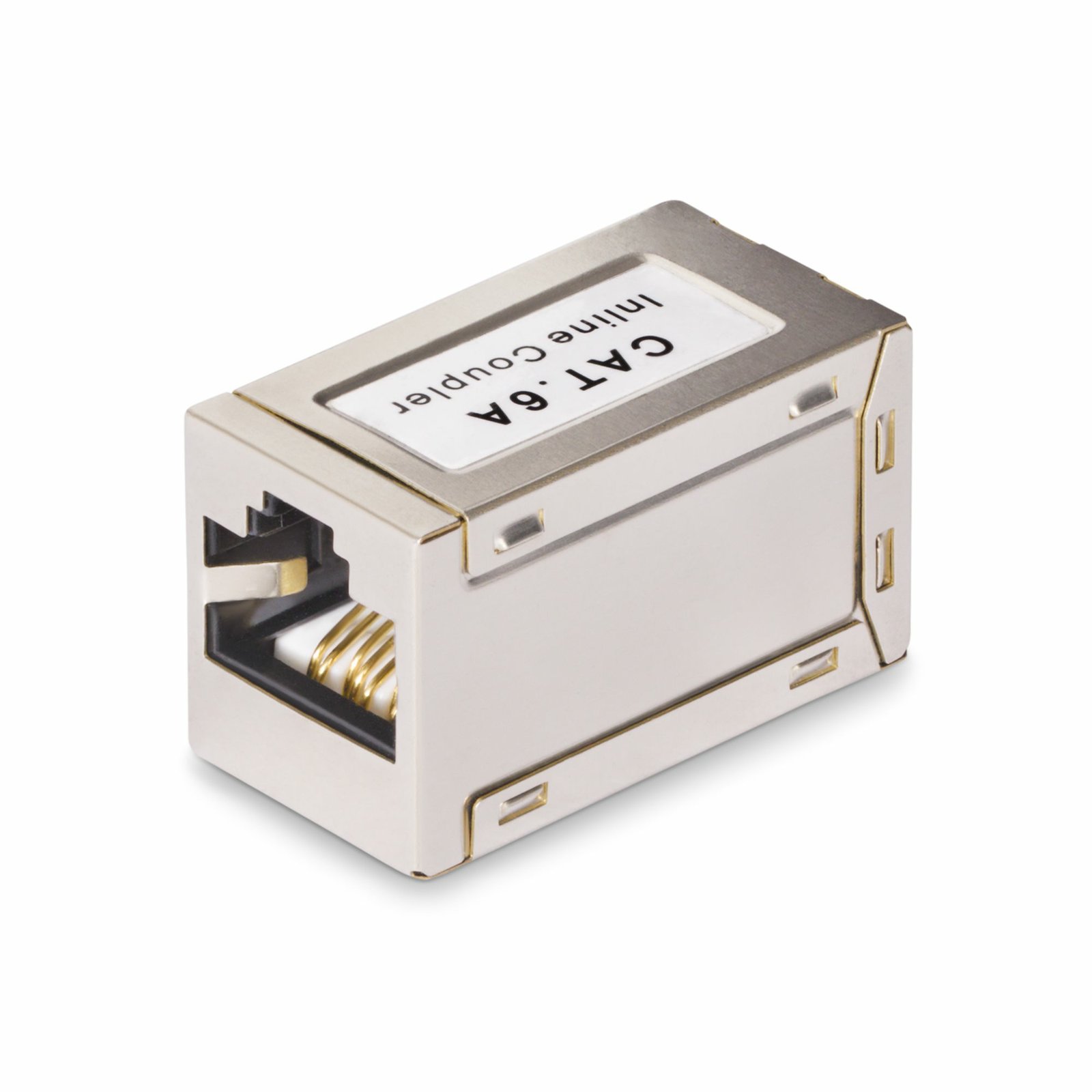

StarTech.com Shielded RJ45 Coupler, Inline Cat6a Coupler, Female to Female (F/F) T568B Pinout, Shielded Ethernet Cable Extension

StarTech.com Shielded RJ45 Coupler, Inline Cat6a Coupler, Female to Female (F/F) T568B Pinout, Shielded Ethernet Cable Extension

Name: StarTech.com Shielded RJ45 Coupler, Inline Cat6a Coupler, Female to Female (F/F) T568B Pinout, Shielded Ethernet Cable Extension - Bank Adhikari
SKU: GD1105271
Price: 1175.99 INR
Availability: InStock

Availability: 50 in stock

₹1,175.99 Including all taxes

Accepted Payment Methods

Add to Cart ▶▶ Buy Now

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

About This Product

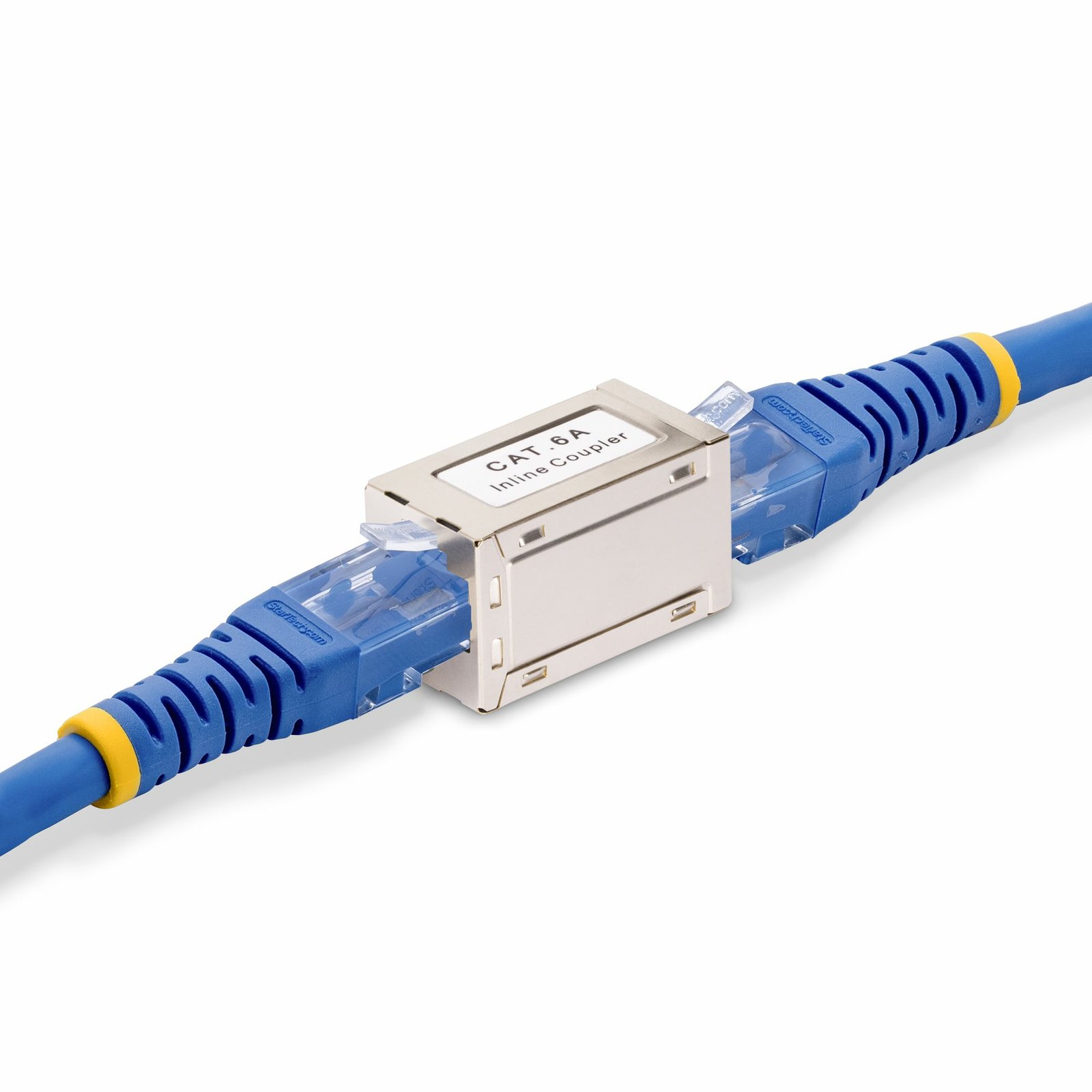

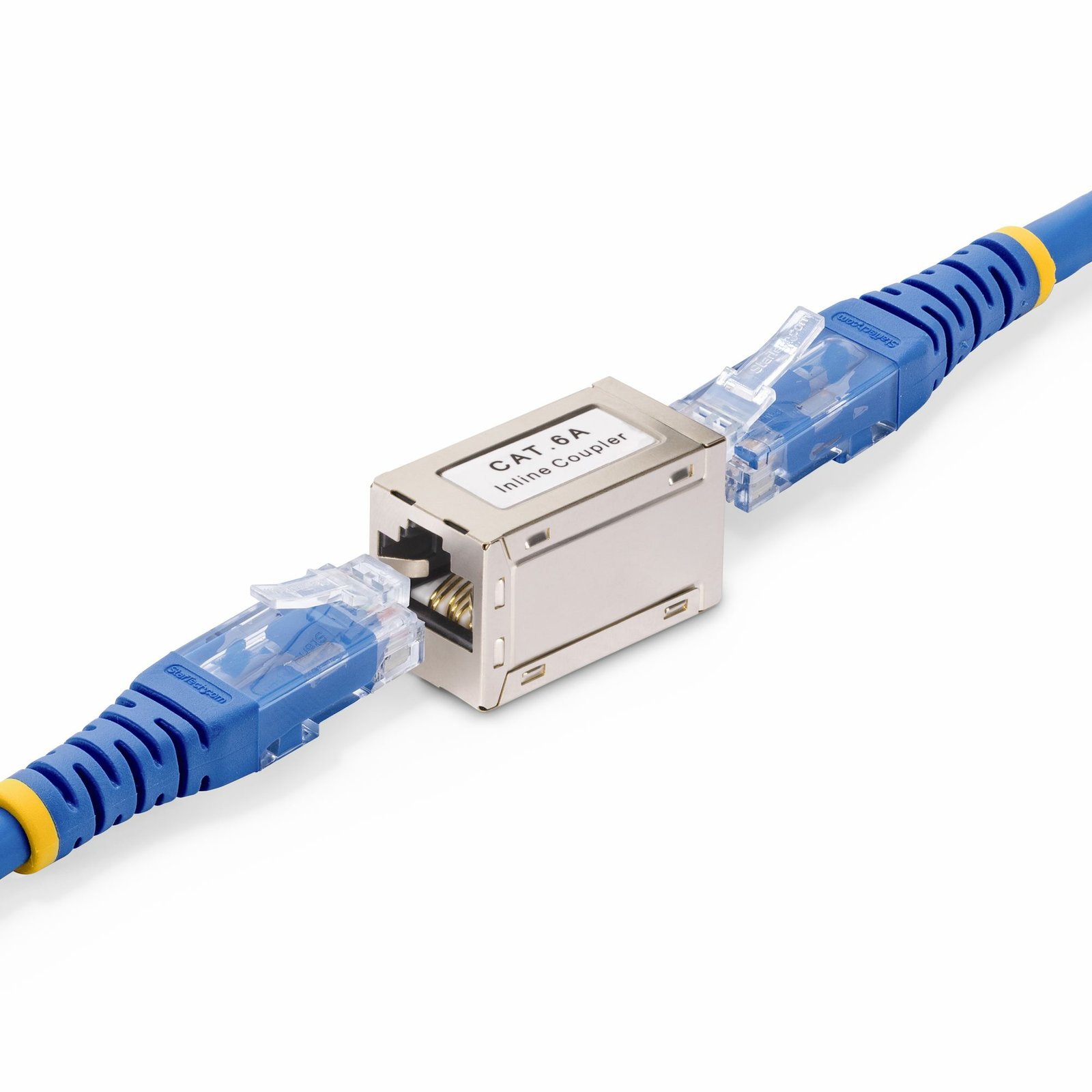

Join two shielded RJ45 Cat6a cables using this Inline Coupler

Connect two Cat 6a cables to extend a network connection, using this Shielded RJ45 Inline Coupler. The female to female Ethernet coupler maintains optimal signal integrity while achieving low insertion loss that exceeds industry standards.

Wide Compatibility

The Cat6a Coupler supports up to 10Gbps and is compatible with common networking standards including 10/100/1000BASE-T, and advanced protocols such as 2.5GBASE-T/5GBASE-T. The Shielded Inline RJ45 coupler facilitates Power-over-Ethernet (PoE) to power network peripheral devices.

Durable Construction

The Shielded RJ45 Cat6a Coupler features a durable metal outer shell with ABS inner housing to enhance EMI protection, and gold-plated phosphor bronze contacts for dependable, long-lasting performance and reliability.

Key Features & Highlights

SHIELDED CAT6A COUPLER: Shielded RJ45 Coupler features a compact design with straight-through TIA/EIA-T568B pinouts; Connect two Cat6a or Cat6 Ethernet cables seamlessly in tight spaces; Ideal for office use, server setups, and home networks
ROBUST CONSTRUCTION: Cat6a Ethernet Coupler features a durable metal outer shell with ABS inner housing for enhanced EMI and wear protection; Female RJ45 contacts made from gold-plated phosphor bronze for optimal conductivity and corrosion resistance
RELIABLE DATA and POWER: Facilitates Power over Ethernet (PoE) output to networking devices and peripherals; Supports 10Gbps, 1Gbps, and 10/100 speeds for versatile and reliable transfer rates between devices
COMPATIBILITY: Compatible with Cat 6/6a and Cat 5/5e cables; Support 2.5G/5G/10G and 10/100/1000 networks; Extend a PoE connection to a network camera, access point, or switch; Cat6a performance is compliant with ANSI/TIA/EIA-568-C standards
QUICK INSTALLATION: Simple plug-and-play design requires no tools for quick and hassle-free setup; No additional software or configuration required

📄 Product Documentation: Download Official Manual / Spec Sheet (PDF)

Technical Specifications

Ports & interfaces

Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Female
Connector 2 gender	Female
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Gold
Ethernet LAN data rates	10,100,1000,10000 Mbit/s

Performance

Product colour	Silver
Housing material	Acrylonitrile butadiene styrene (ABS), Metal
Data transfer rate	10 Gbit/s

Operational conditions

Operating temperature (T-T)	-20 – 65 °C
Storage temperature (T-T)	-25 – 75 °C
Relative humidity	30 – 70%

Certificates

Compliance certificates	CE
Certification	TIA/EIA-T568B

Sustainability

Sustainability compliance	Yes

Weight & dimensions

Width	16 mm
Depth	31 mm
Height	20 mm

Packaging data

Package width	90 mm
Package depth	57 mm
Package height	26 mm
Package weight	10 g

Logistics data

Products per master (outer) case	500 pc(s)
Master (outer) case width	355 mm
Master (outer) case length	520 mm
Master (outer) case height	270 mm

Manufacturer Part Number	IN-CAT6A-COUPLER-S1
Brand	STARTECH.COM
UPC / EAN	0065030906135
SKU	GD1105271
Category	Cable Gender Changers
Subcategory	Coax Cables
Connector 1	RJ-45
Connector 2	RJ-45
Connector 1 gender	Female
Connector 2 gender	Female
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Gold
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Product colour	Silver
Housing material	Acrylonitrile butadiene styrene (ABS), Metal
Data transfer rate	10 Gbit/s
Operating temperature (T-T)	-20 – 65 °C
Storage temperature (T-T)	-25 – 75 °C
Relative humidity	30 – 70%
Compliance certificates	CE
Certification	TIA/EIA-T568B
Sustainability compliance	Yes
Width	16 mm
Depth	31 mm
Height	20 mm
Package width	90 mm
Package depth	57 mm
Package height	26 mm
Package weight	10 g
Products per master (outer) case	500 pc(s)
Master (outer) case width	355 mm
Master (outer) case length	520 mm
Master (outer) case height	270 mm
