About This Product

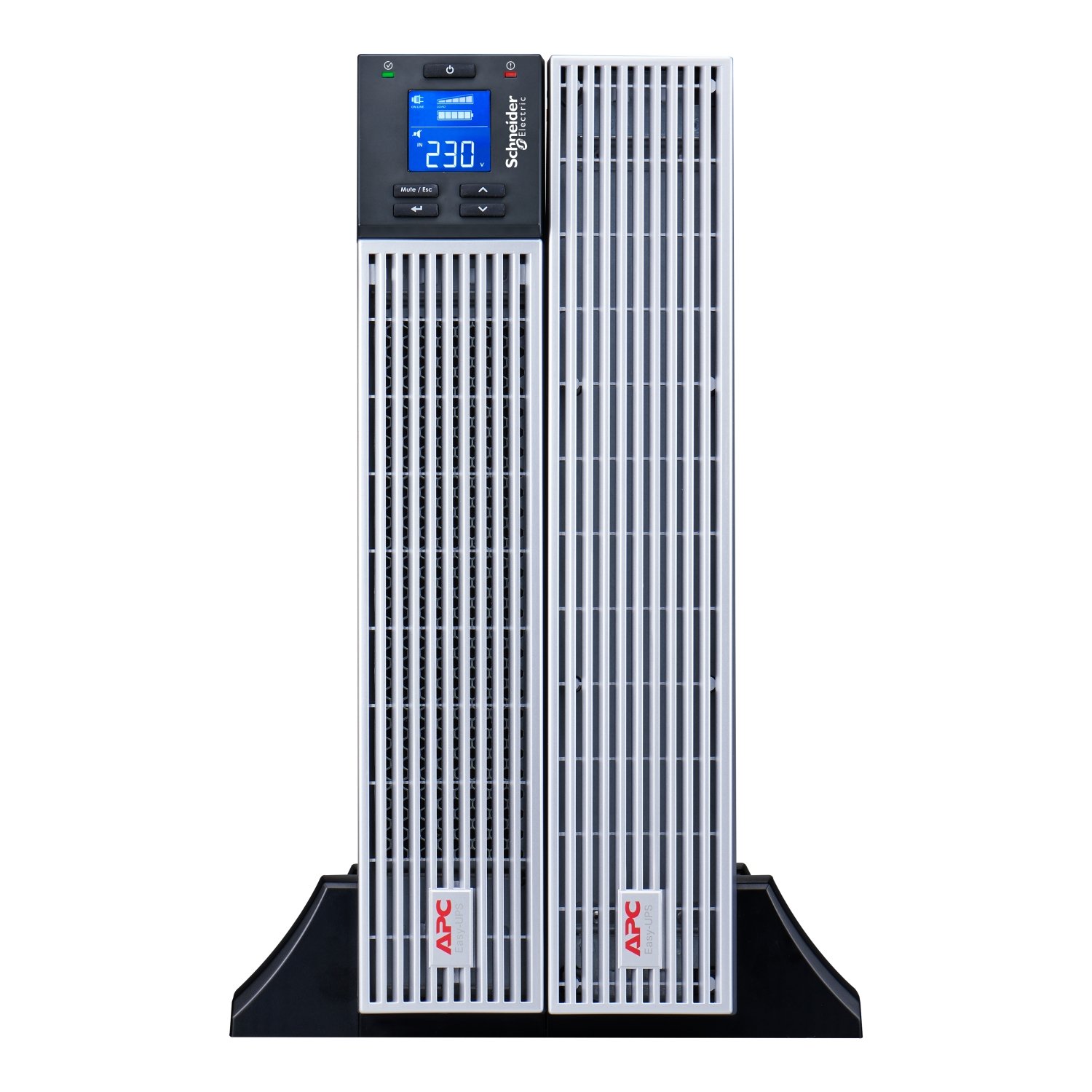

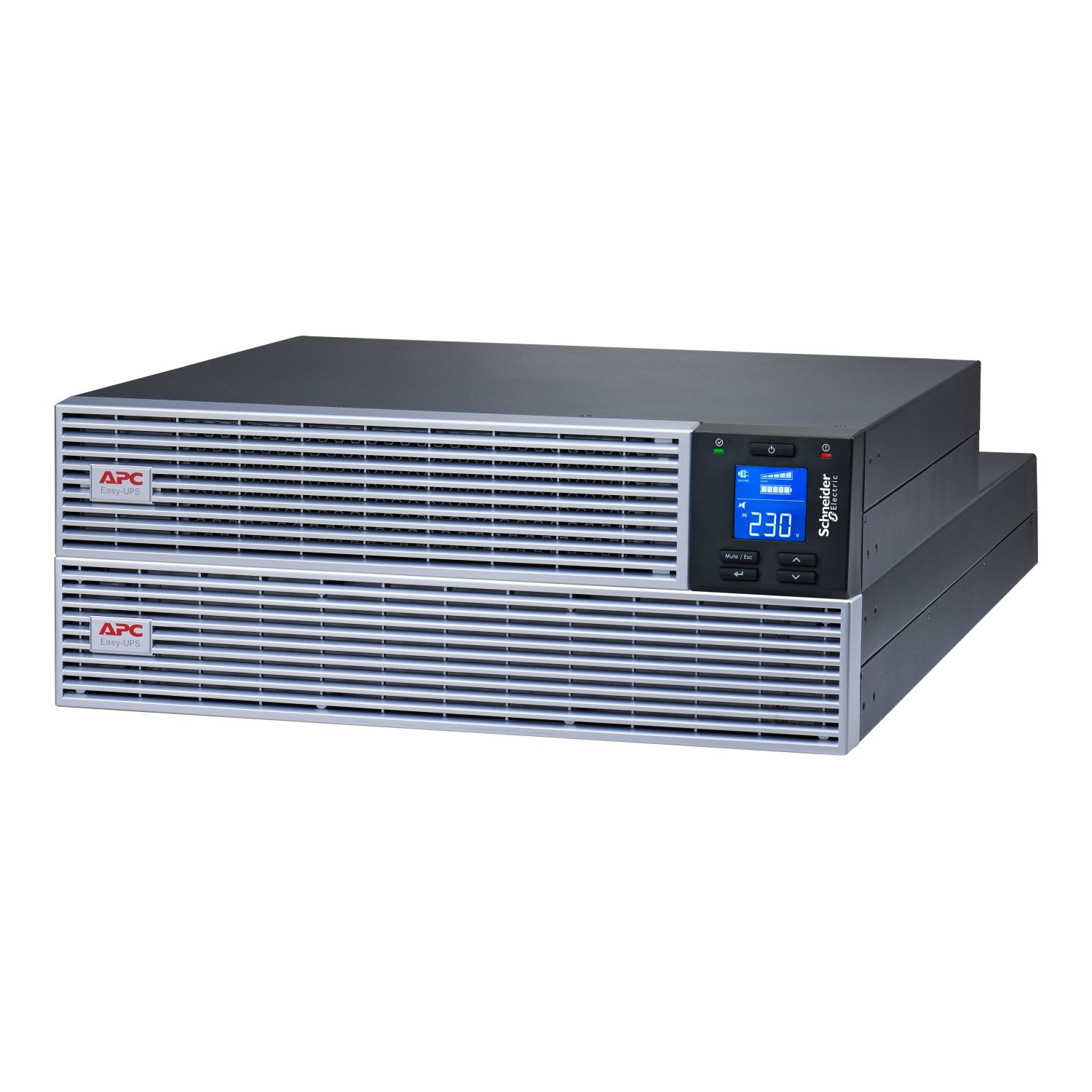

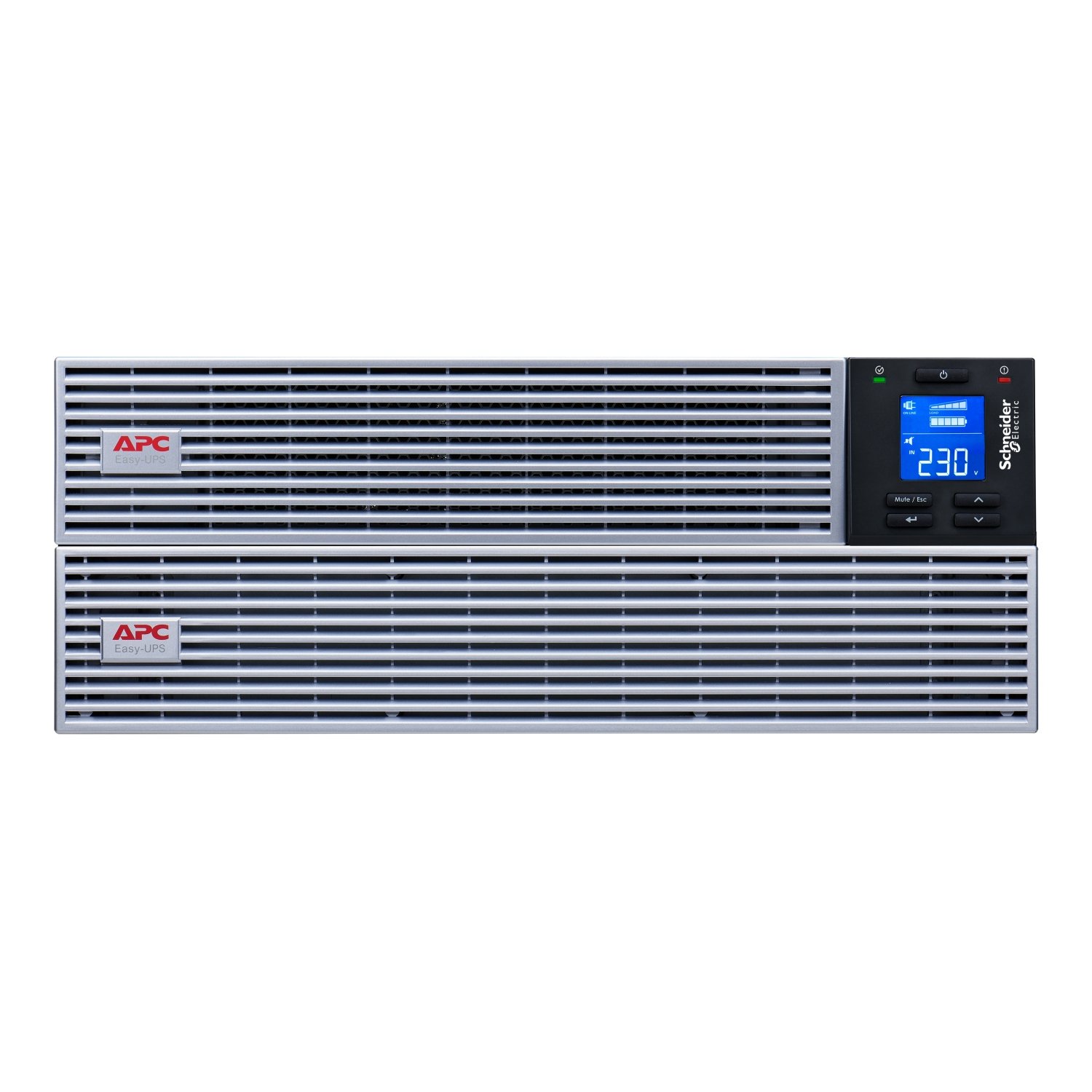

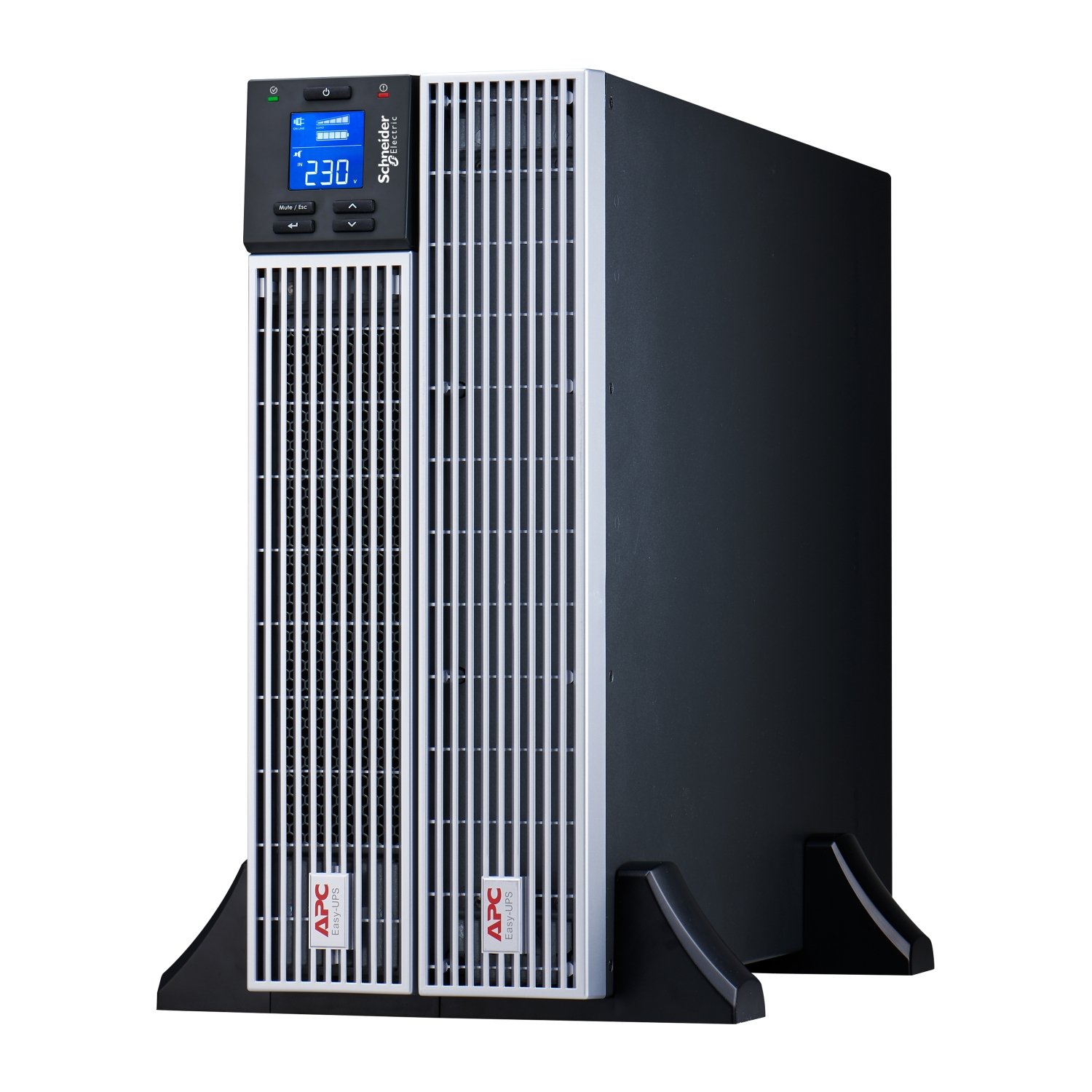

Single Phase True Double-conversion On-Line UPS Lithium-Ion battery has a lifetime of eight to ten years which offers reliable support and extends the useful life of your UPS. 230V 3000VA Extendeded runtime model Longer runtime and faster recharge time compared to VRLA generation. More real output power in watts 0.9 PF Up to 90% efficiency in on-line double conversion mode and up to 96% in ECO mode saves utility and cooling costs without compromising performance or reliability. Its dimensions are 438mm (width) x 616mm (depth) x 172mm (height) 4U in total which includes 2U Power module and 2U external battery pack. The net weighs is 38.3kg. Up to 3 external lithium-ion battery packs support at maximum. It’s ideal for Surveillance, Banking, POS, Healthcare IT, SMB, Micro Data Center and Server room. CB, CE, UKCA, EAC, RCM, TISI, KC, UN38.3, IEC 62040-1, IEC 62040-2 / EN IEC 62040-2, IEC 62619, IEC 60730-1 External Battery Pack, Rail kit, Managemnt Card (Network Management card, Dry contact card, modbus Card) options are available. Rack/ Tower convertible design with default accessory kit.
Key Features & Highlights
- Double-conversion (Online)
- 3 kVA 2700 W
- Waveform: Sine
- 7 AC outlet(s)
- Lithium-Ion (Li-Ion) 48 V
- Rackmount/Tower Black
Technical Specifications
Features
| UPS topology | Double-conversion (Online) |
|---|---|
| Output power capacity | 3 kVA |
| Output power | 2700 W |
| Waveform | Sine |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 945 J |
| Efficiency | 90% |
| Crest factor | 3:1 |
| ECO mode | Yes |
| Emergency Power Off (EPO) | Yes |
| Noise level | 50 dB |
| Audible alarm modes | Low battery alarm, Overload alarm |

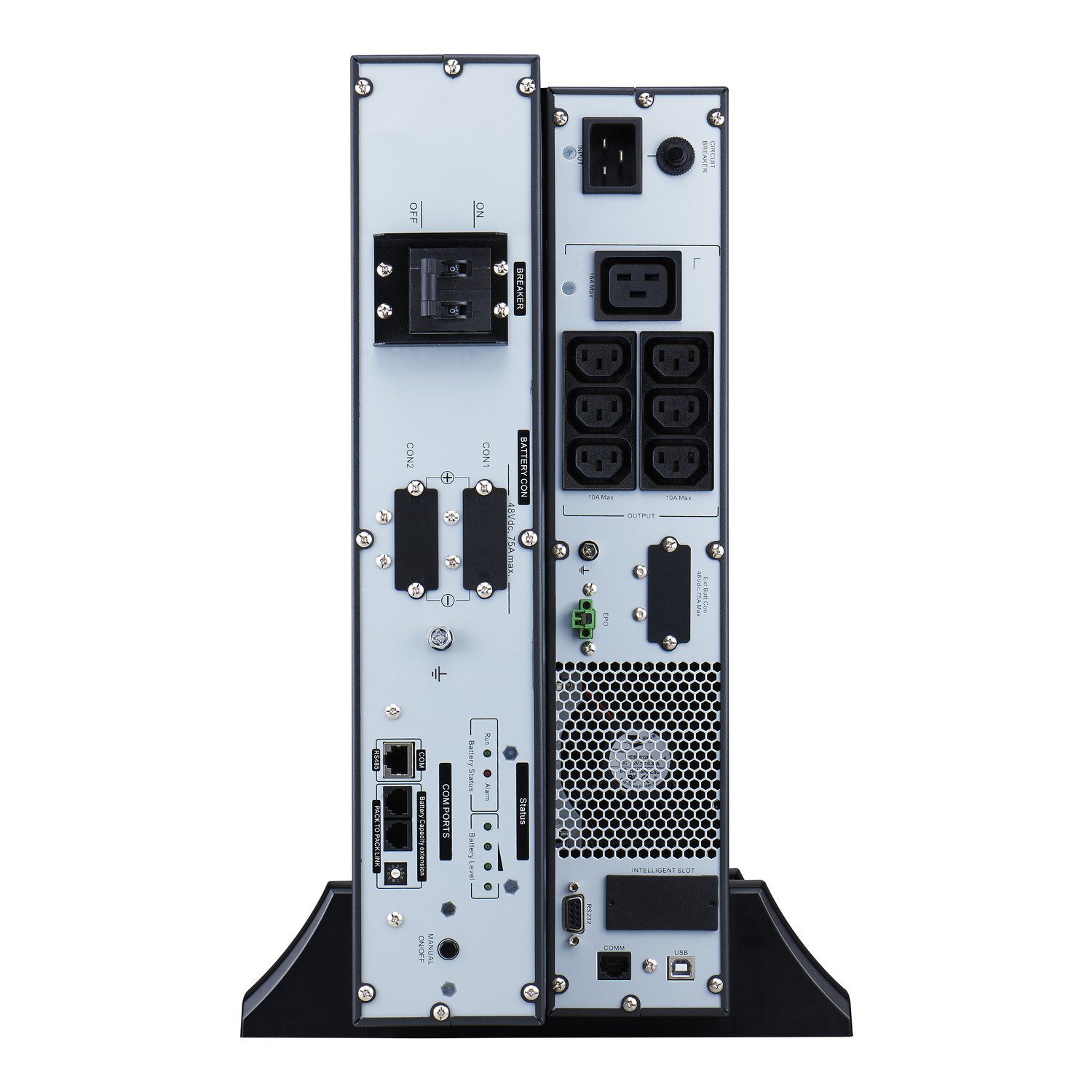

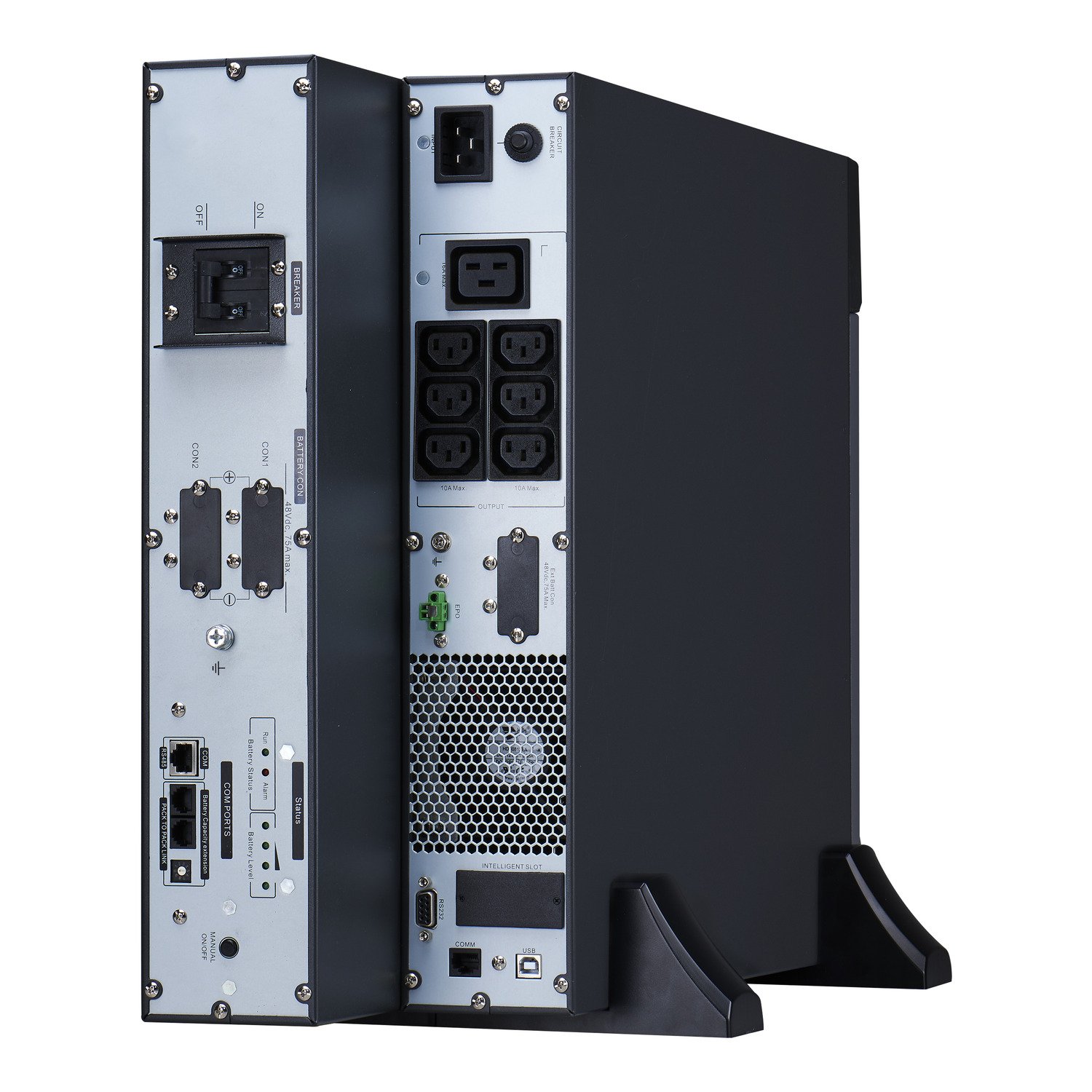

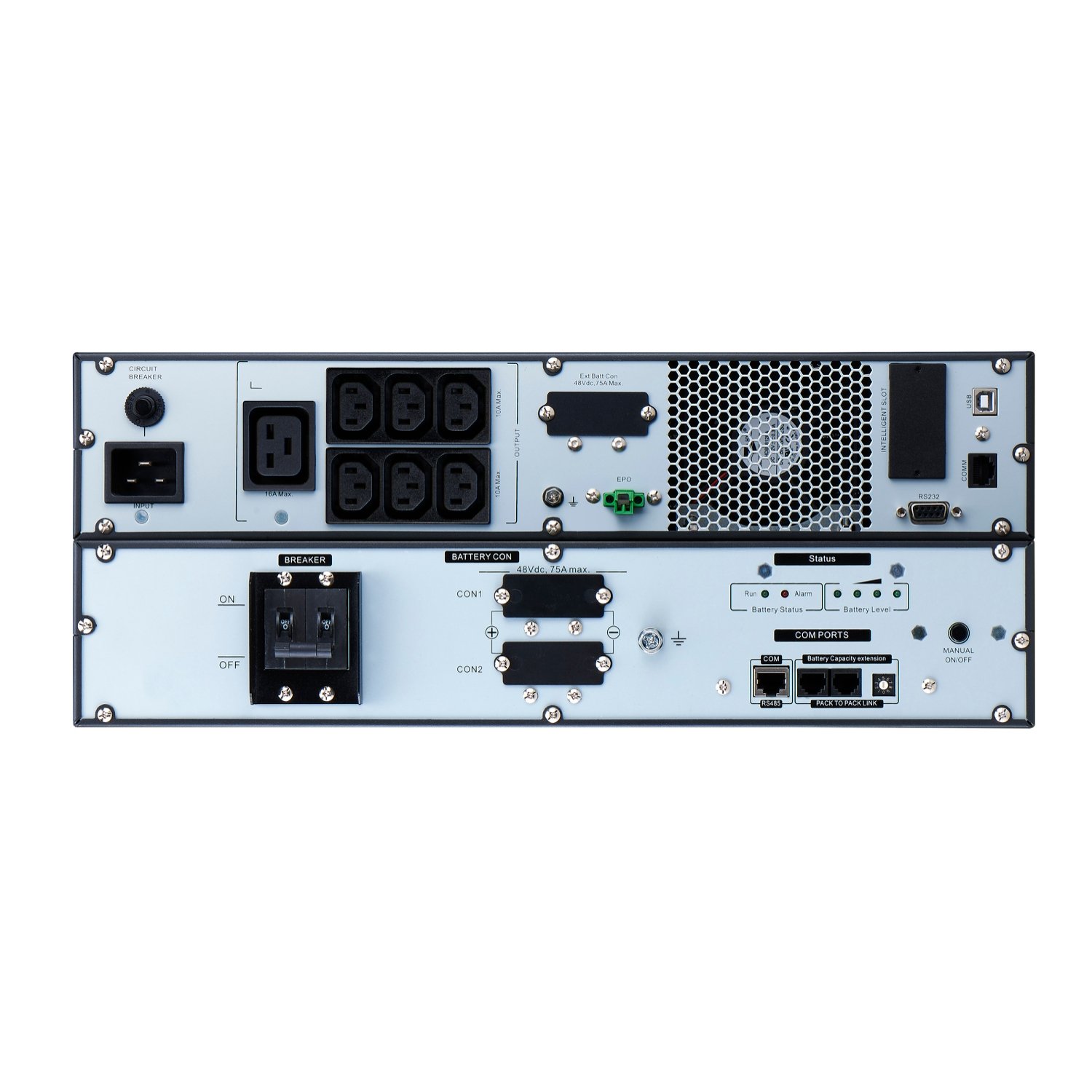

Ports & interfaces
| AC outlet types | C13 coupler, C19 coupler |
|---|---|
| Power plug | C20 coupler |
| AC outlets quantity | 7 AC outlet(s) |
| USB port | Yes |
| RS-232 ports | 1 |
| Modem (RJ-11) ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Battery
| Battery technology | Lithium-Ion (Li-Ion) |
|---|---|
| Battery voltage | 48 V |
| Battery life (max) | 10 year(s) |
| Battery recharge time | 4.8 h |
Design
| Form factor | Rackmount/Tower |
|---|---|
| Rack capacity | 4U |
| Product colour | Black |
| Control type | Buttons |
| Display type | LCD |
| International Protection (IP) code | IP20, IP32 |
| Compatibility | Basic UPS signalling RS-232 cable, Battery cable, C13-C14 power cord, IEC-C20 – Shuko input power cord, Rack mounting brackets, RJ11 cable, RJ45 cable, Safety guide, Stabilization feet, USB cable, User manual |
Operational conditions
| Operating temperature (T-T) | 0 – 40 °C |
|---|---|
| Storage temperature (T-T) | -20 – 50 °C |
| Operating relative humidity (H-H) | 0 – 95% |
| Storage relative humidity (H-H) | 0 – 95% |
Certificates
| Compliance certificates | CE, RoHS, UKCA |
|---|---|
| Certification | CB , CE, EAC, IEC 62619, KC, RCM, TISI, UKCA, UN 38.3 |
Packaging content
| Rack mount kit | Yes |
|---|---|
| Manual | Yes |
Weight & dimensions
| Width | 438 mm |
|---|---|
| Depth | 616 mm |
| Height | 172 mm |
| Weight | 38.3 kg |
Packaging data
| Package width | 800 mm |
|---|---|
| Package depth | 600 mm |
| Package height | 480 mm |
| Package weight | 47.3 kg |
