About This Product
Mini DP Adapter Cable | Thunderbolt™ 3 Compatible | USB 3.1 Type-C™

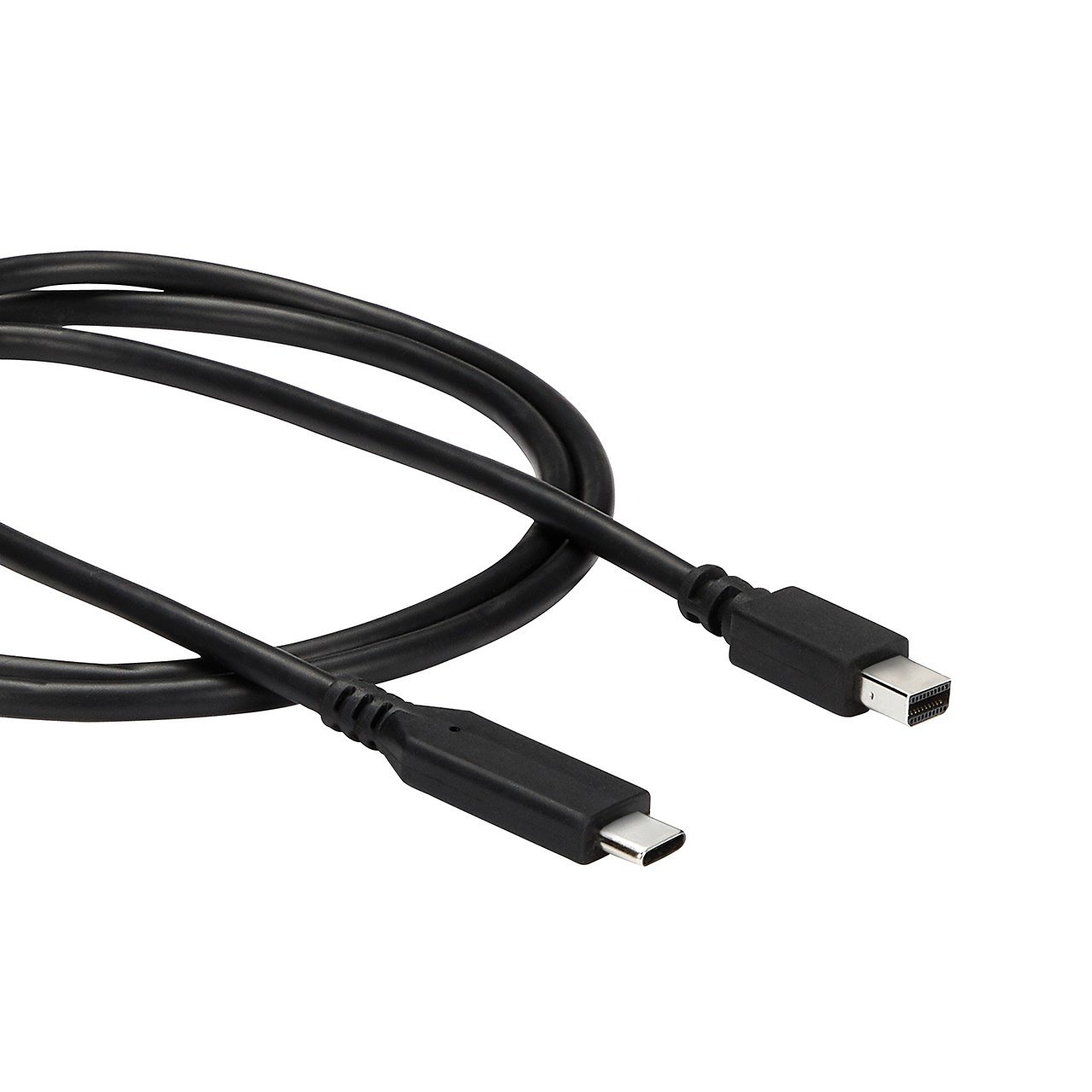

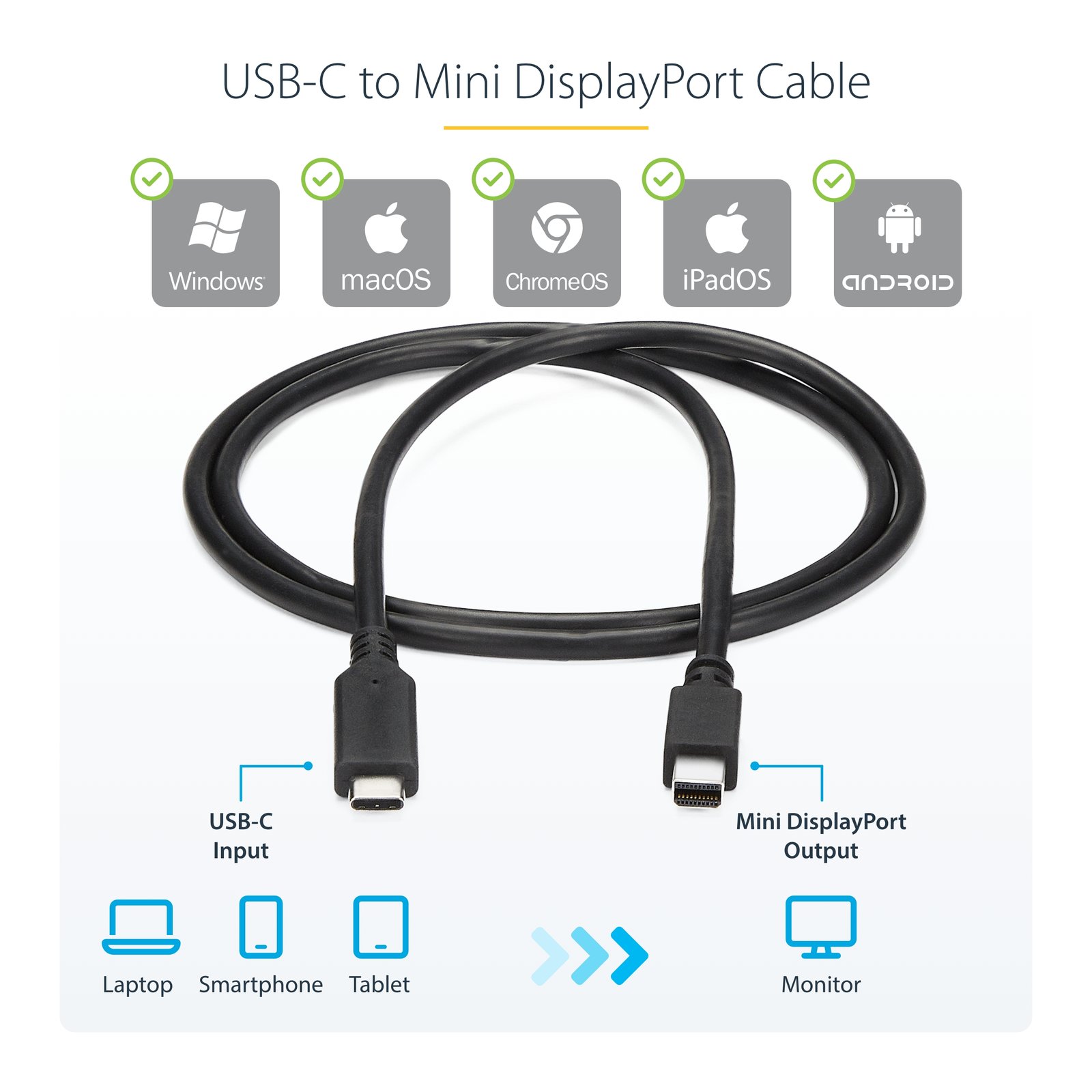

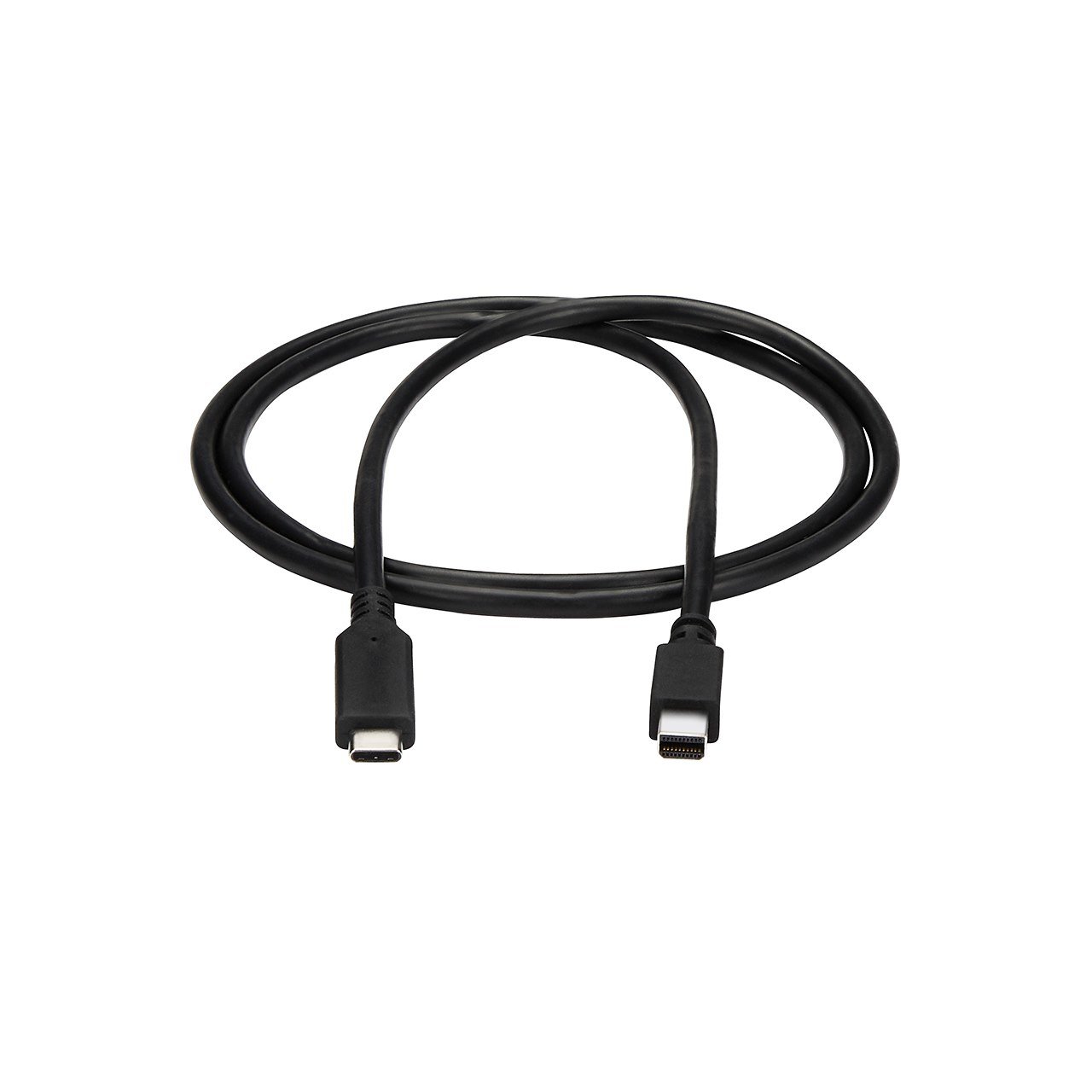

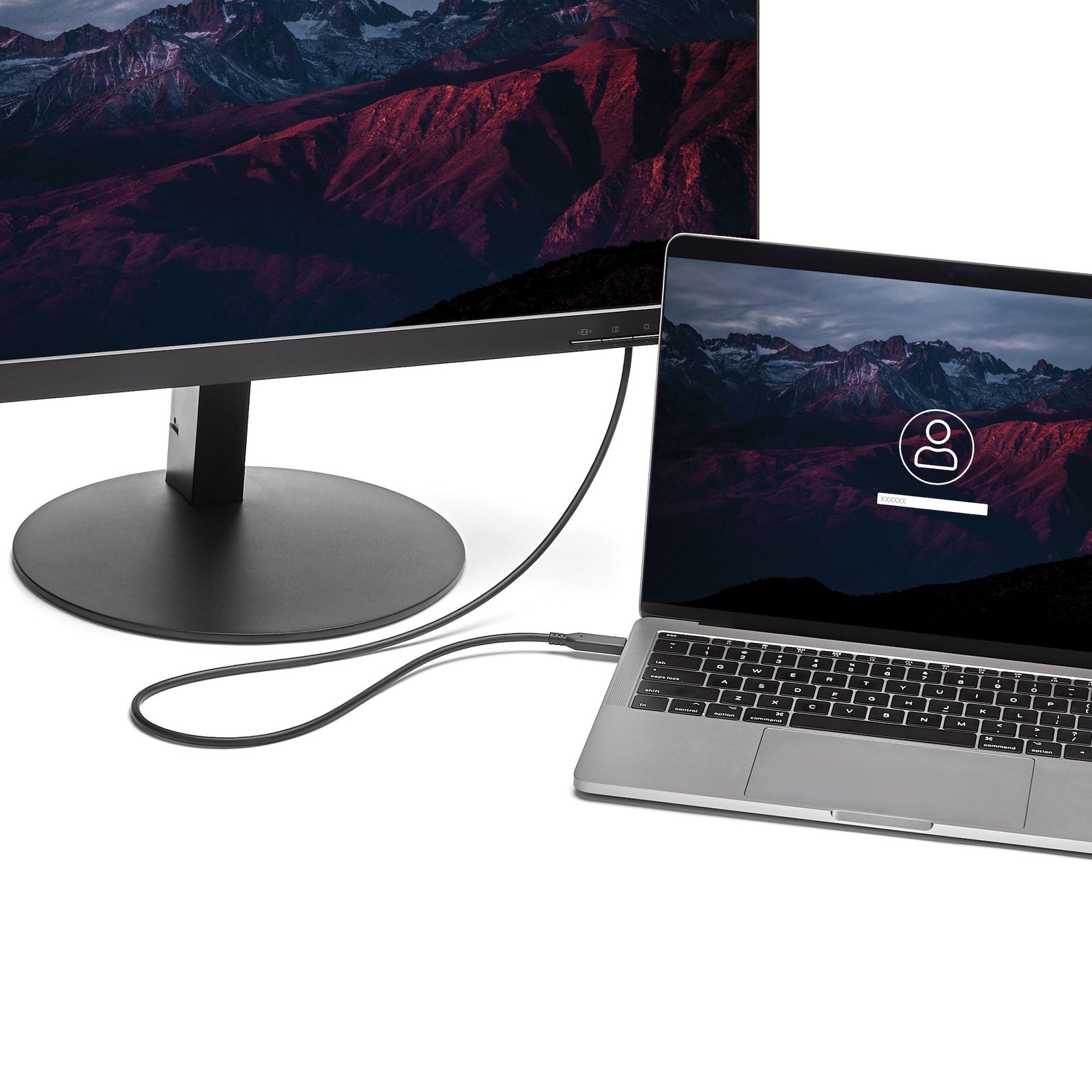

This USB-C to Mini DisplayPort cable lets you connect your Thunderbolt 3 or USB Type-C enabled device to a Mini DP monitor with just one cable, for a convenient, clutter-free connection.
Astonishing Picture Quality
Harness the video capabilities that are built into your USB-C connection. The USB Type-C to Mini DisplayPort cable delivers the astonishing quality of Ultra HD to your 4K display, at resolutions up to 3840 x 2160. Plus, the adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other work environments.
Clutter-Free Installation

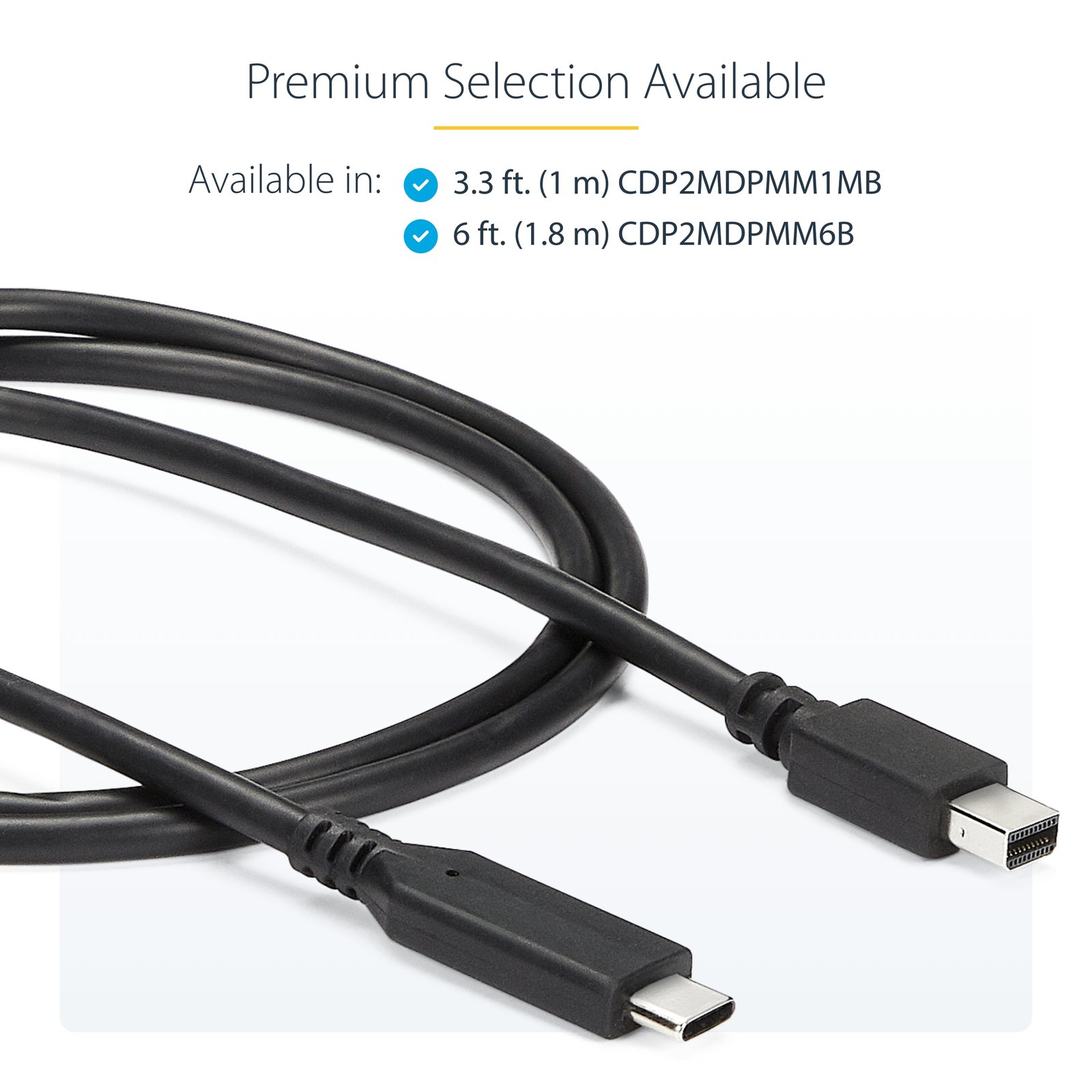

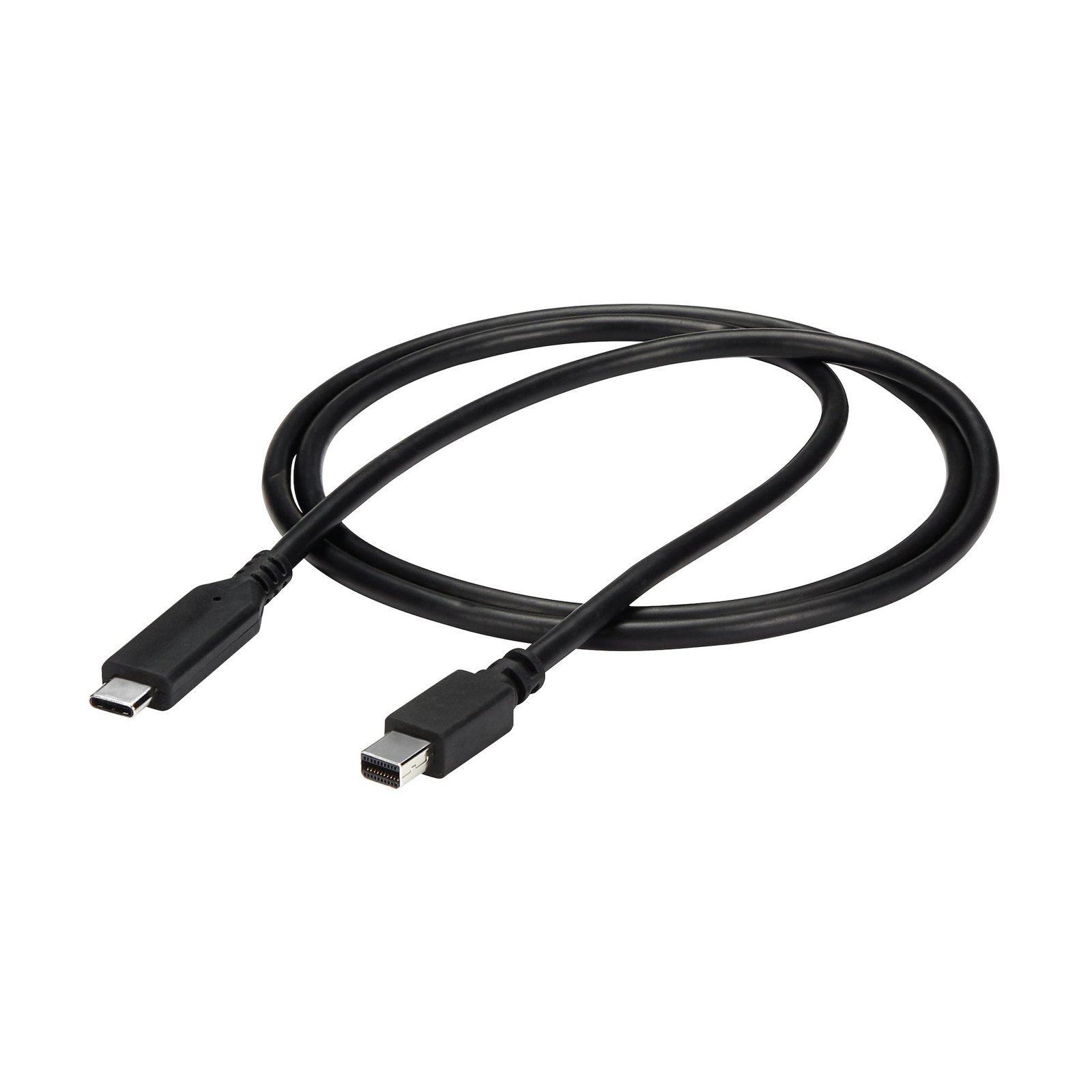

At 1 m (3.3 ft.) in length, this Mini DP cable delivers a compact connection that eliminates excess adapters and cabling, ensuring a tidy, professional installation. For longer installations, we also offer a 6 ft. (1.8 m) USB-C to mDP cable, enabling you to choose the right cable length for your custom installation needs.
Hassle-Free Setup
For easy operation and installation, this USB 3.1 Type-C to Mini DP adapter cable supports plug-and-play installation on both Windows and Mac computers.
CDP2MDPMM1MB is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Key Features & Highlights

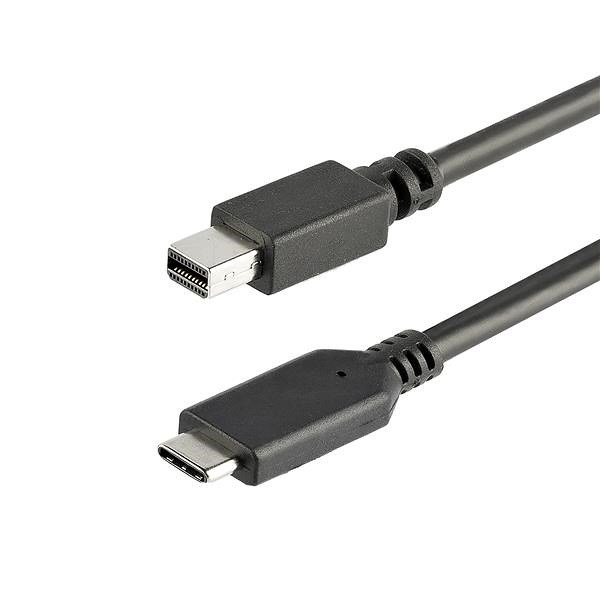

- ADAPTER AND CABLE IN ONE: This USB-C to Mini DP cable lets you connect your Thunderbolt 3, Thunderbolt 4 or USB-C computer to a Mini DisplayPort (mDP) monitor with just one cable

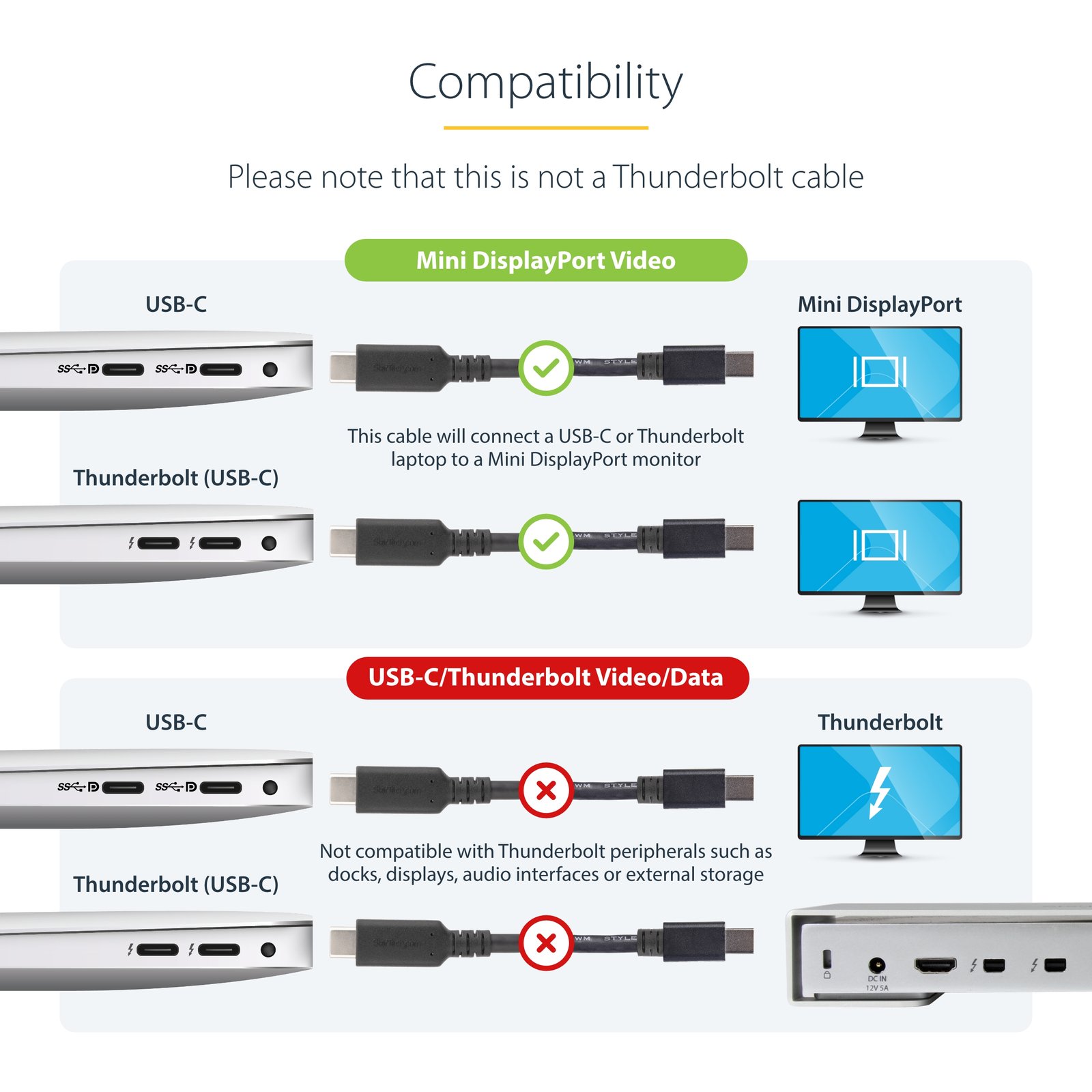

- NOTE: This is not a Thunderbolt cable, not reversible and is not compatible with Thunderbolt peripherals such as Docking Stations, Displays or External Enclosures; This cable connects a USB-C or Thunderbolt 3/4 laptop to a monitor with Mini-DisplayPort

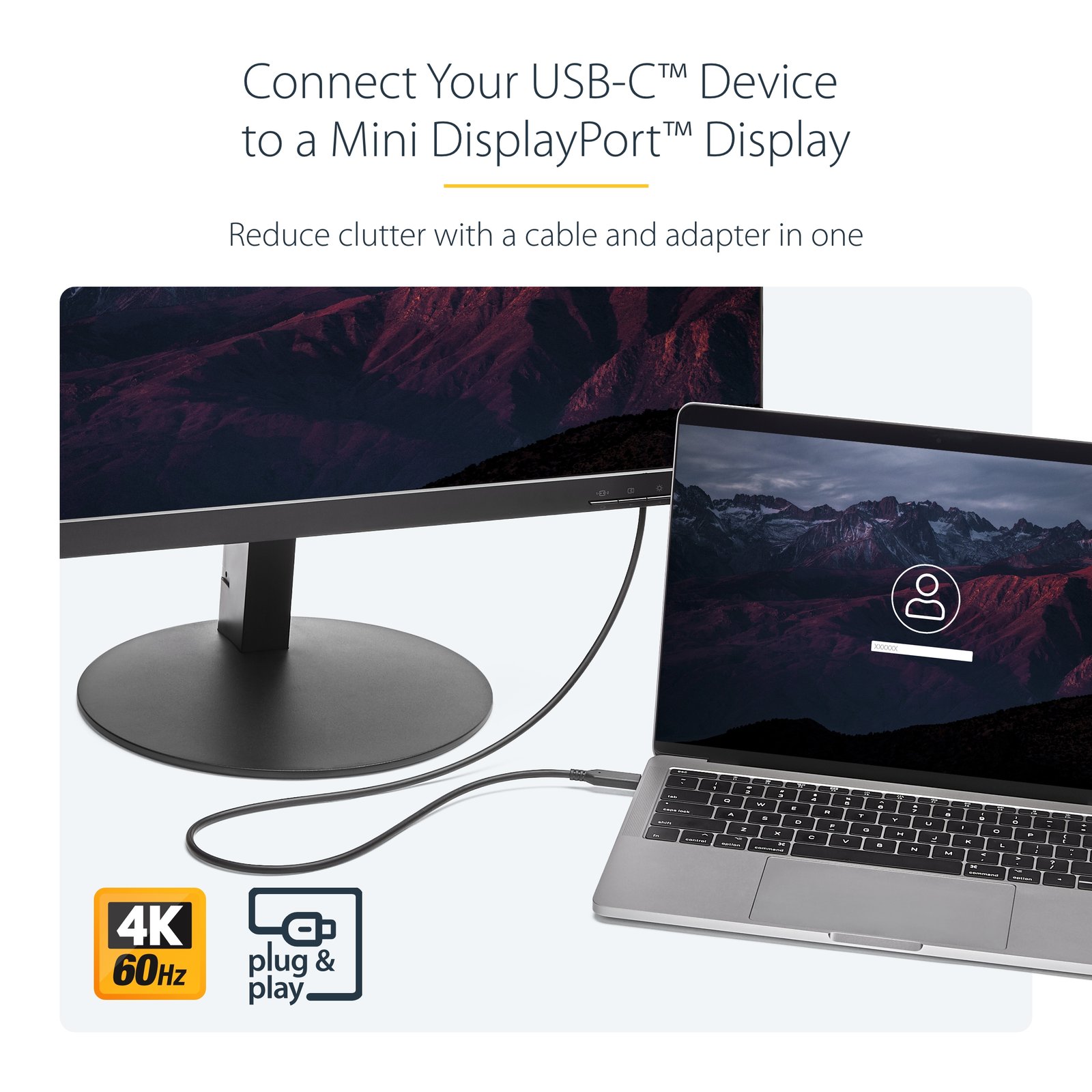

- 4K 60HZ RESOLUTION: USB-C to Mini DisplayPort Cable Adapter delivers UHD picture quality with support for video resolutions up to 4K 60Hz; It's also backwards compatible with 1080p monitors or displays
- HASSLE-FREE SETUP: This USB Type-C to Mini DP adapter cable supports plug-and-play installation on both Windows and Mac computers; No driver installation required
- THUNDERBOLT 3 AND USB-C COMPATIBLE: USB-C to mDP cable works with Thunderbolt 3 / 4 computers and USB Type-C ports supporting video; Please check with your computer manufacturer to confirm video over USB-C (DP Alt mode) support
Technical Specifications
Features
| Connector 1 form factor | Straight |
|---|---|
| Connector 2 form factor | Straight |
| Cable length | 1 m |
| Connector 1 | USB Type-C |
| Connector 2 | Mini DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1440, 2560 x 1600 (WQXGA), 3840 x 2160 |
| Supported video modes | 720p, 1080p |
| Maximum refresh rate | 60 Hz |
| Product colour | Black |
| Chipset | STMicroelectronics – STM32F072CBU6 |
| Supported audio channels | 7.1 |
| Plug and Play | Yes |
Operational conditions
| Operating temperature (T-T) | 5 – 35 °C |
|---|---|
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 25 – 60% |
Certificates
| Compliance certificates | CE, RoHS |
|---|
Sustainability
| Sustainability compliance | Yes |
|---|
Weight & dimensions
| Weight | 25 g |
|---|---|
| Width | 20 mm |
| Depth | 1000 mm |
| Height | 10 mm |
Packaging data
| Package width | 128 mm |
|---|---|
| Package depth | 159 mm |
| Package height | 25 mm |
| Package weight | 30.5 g |

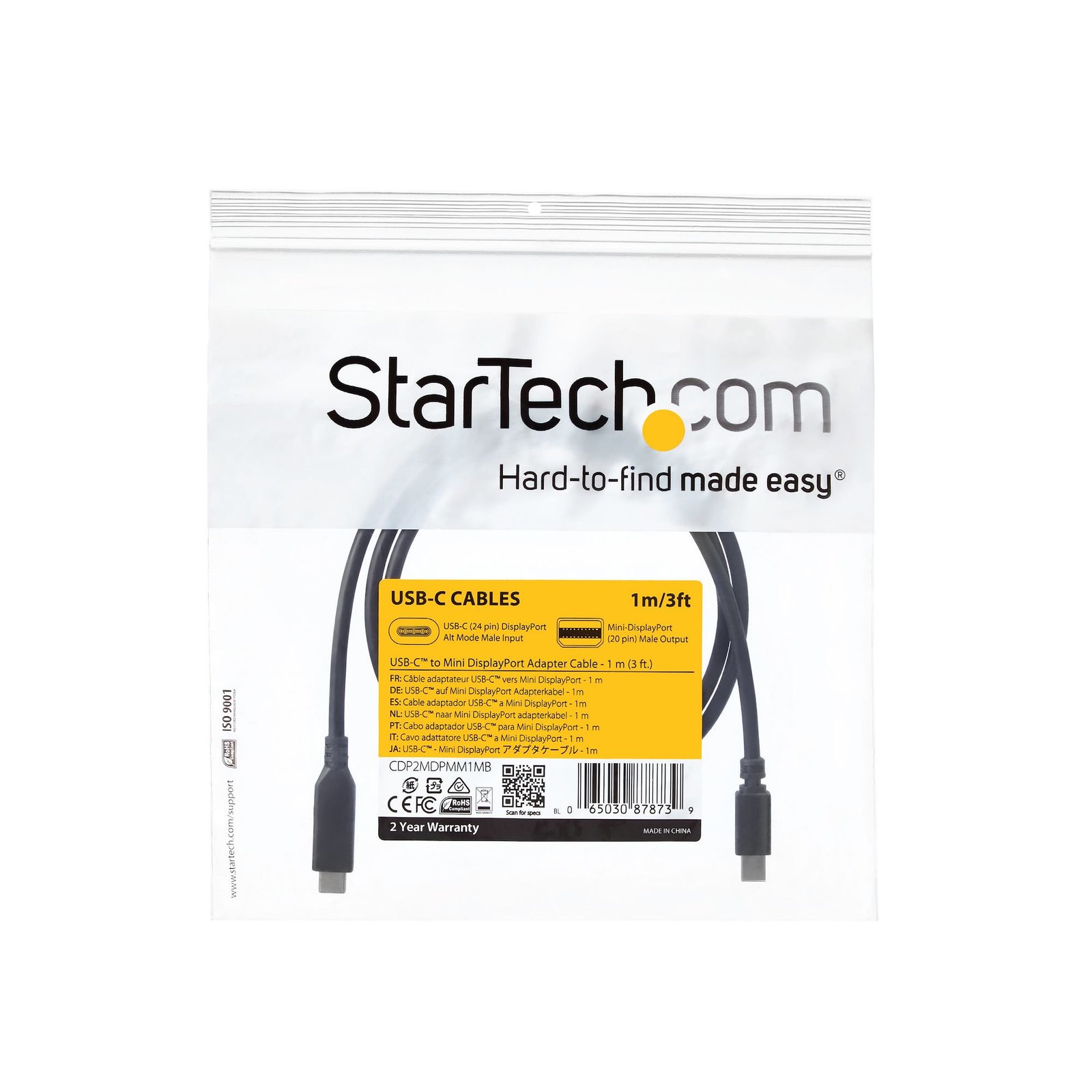

Packaging content
| Quantity per pack | 1 pc(s) |
|---|
Logistics data
| Harmonized System (HS) code | 84733080 |
|---|---|
| Master (outer) case width | 336 mm |
| Master (outer) case length | 516 mm |
| Master (outer) case height | 220 mm |
| Products per master (outer) case | 90 pc(s) |
